Home >> Mercury >> 1996 >> Sable V6-183 3.0L DOHC VIN S MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antitheft and Alarm Systems >> Alarm Module, (Vehicle Antitheft) >> Passive Anti-Theft System Module

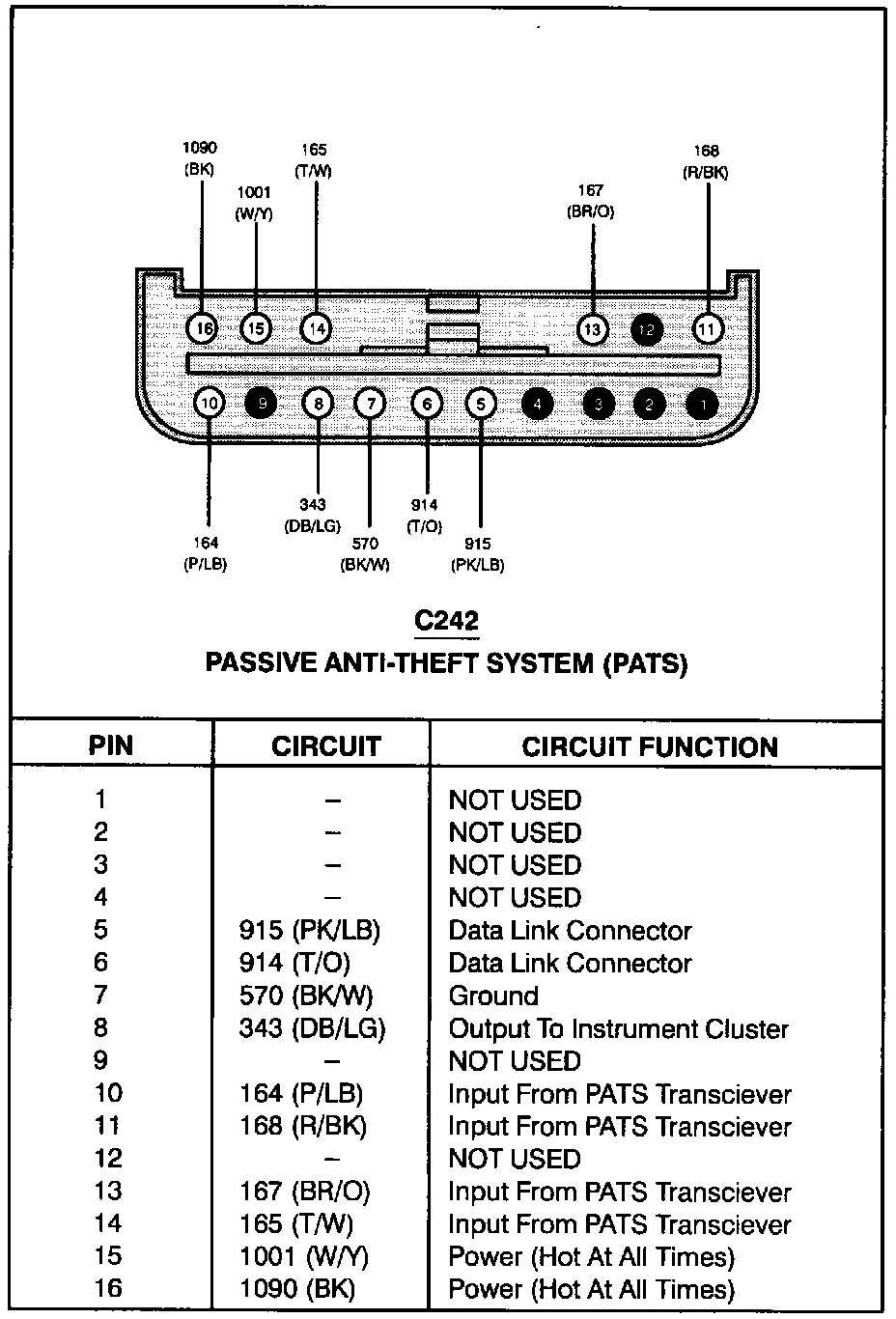

Passive Anti-Theft System Module

Passive Anti-Theft System:
