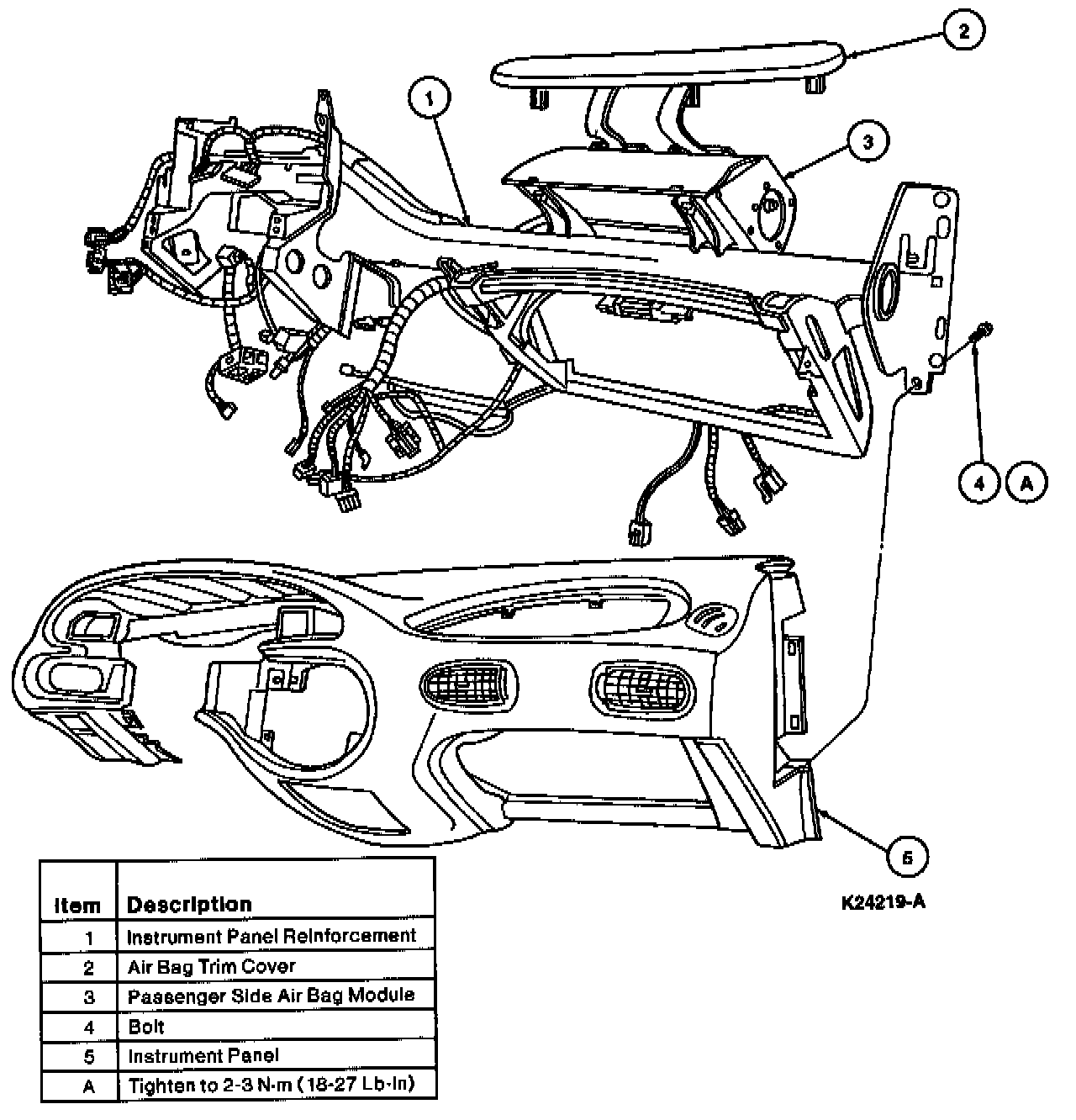

Instrument Panel - Reinforcement

1. Remove instrument panel.
2. Place instrument panel on protected work surface.
3. Unsnap passenger air bag trim panel from instrument panel, and remove screws retaining passenger side air bag module to instrument panel reinforcement.
4. Remove one screw from each end of the instrument panel.
5. Remove remaining screws retaining instrument panel to instrument panel reinforcement.
6. Remove instrument panel reinforcement from instrument panel.
7. To install, reverse removal procedure. Tighten screws to 7-9 Nm (62-80 lb in).
