Active Anti-Theft Alarm System (RAP)

1. Verity the customer's concern by duplicating the condition.

2. Inspect to determine if one of the following mechanical or electrical concerns apply:

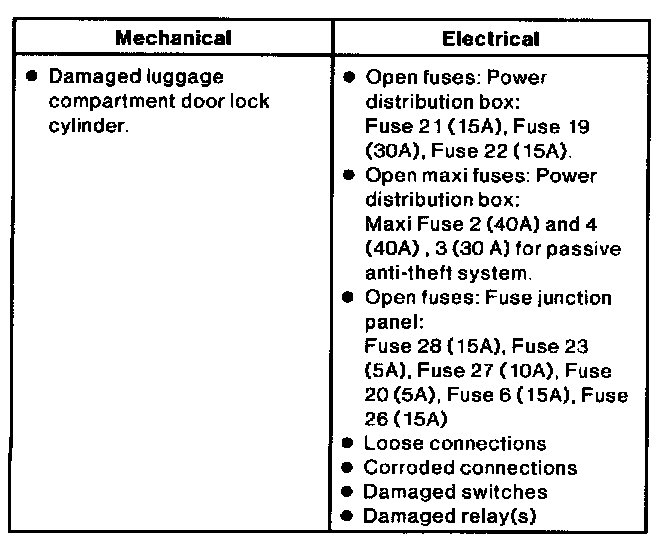

Visual Inspection Chart:

3. If the inspection reveals obvious concern that is readily serviced, correct the concern before continuing with Inspection and Verification.

4. If the concern remains after the inspection, use Rotunda New Generation Star (NGS) Tester or equivalent, connected to the data link connector (DLC) to retrieve continuous diagnostic trouble codes (DTCs) and to execute Self Test Diagnostics for the remote anti-theft personality module. Also, enter PID/DATA Monitor and record to retrieve last alarm triggers. Record all eight AL_EVTs.

5. If self test is passed and no diagnostic trouble codes (DTCs) are retrieved, go to Symptom Chart to continue diagnostics. Active Anti-Theft Alarm System (RAP)

6. If diagnostic trouble codes (DTCs) are retrieved, go to Remote Anti-Theft Personality Module Diagnostic Trouble Code (DTC) Index. Active Anti-Theft Alarm System (RAP)

7. If the remote anti-theft personality module cannot be accessed by the New Generation STAR (NGS) Tester, go to Pinpoint Test A. A: No Communication With RAP Module

Rotunda Service Bay Diagnostic System (SBDS), may also diagnose this system.

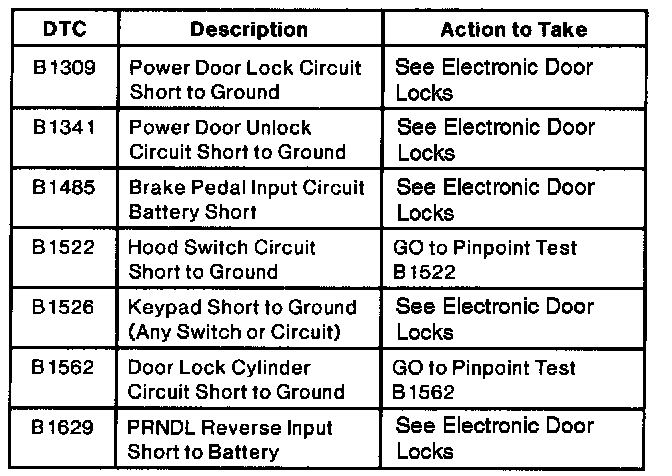

Remote Anti-Theft Personality (RAP) Module Diagnostic Trouble Codes (DTC's) Index:

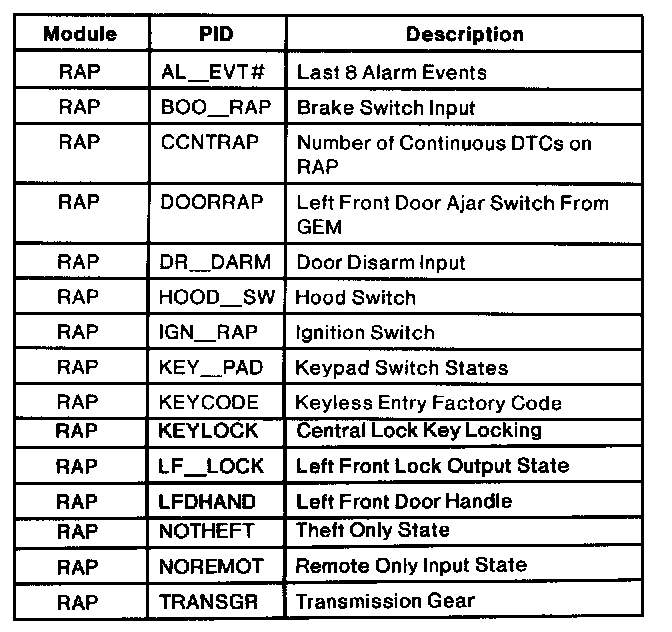

Remote Anti-Theft Personality Module Perimeter Identification (PID's):
