Home >> Mercury >> 1996 >> Sable V6-183 3.0L DOHC VIN S MFI >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> B Code Charts >> B1562-1/-2: Door Lock Cylinder Short to Ground

B1562-1/-2: Door Lock Cylinder Short to Ground

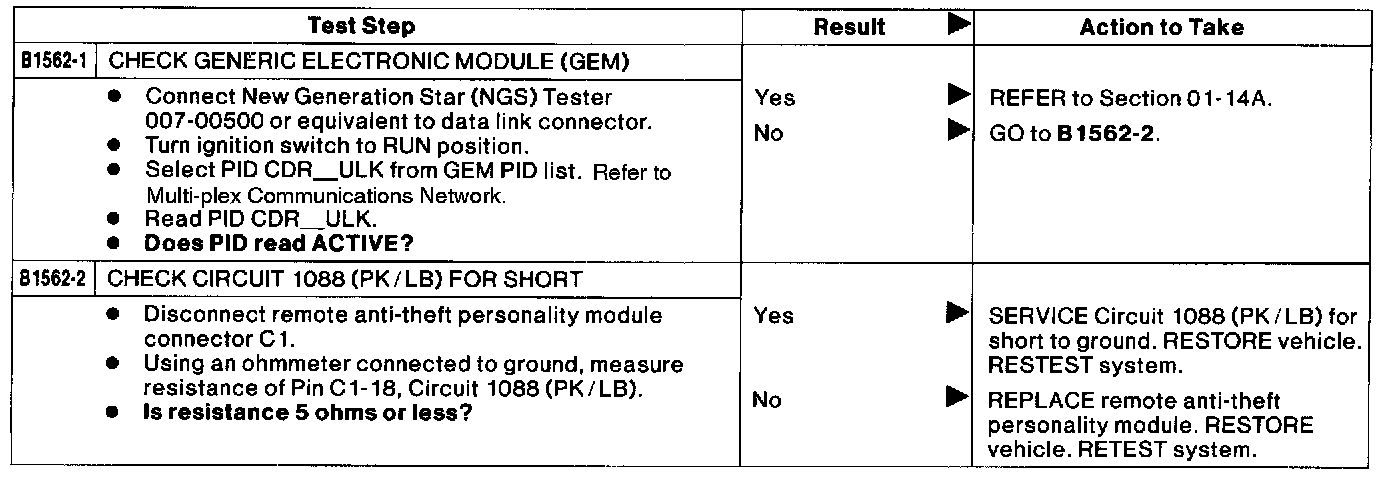

Test Steps 1 - 2:
