Home >> Mercury >> 1996 >> Sable V6-183 3.0L DOHC VIN S MFI >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> B Code Charts >> B1522: Hoop Switch Circuit Short to Ground

B1522: Hoop Switch Circuit Short to Ground

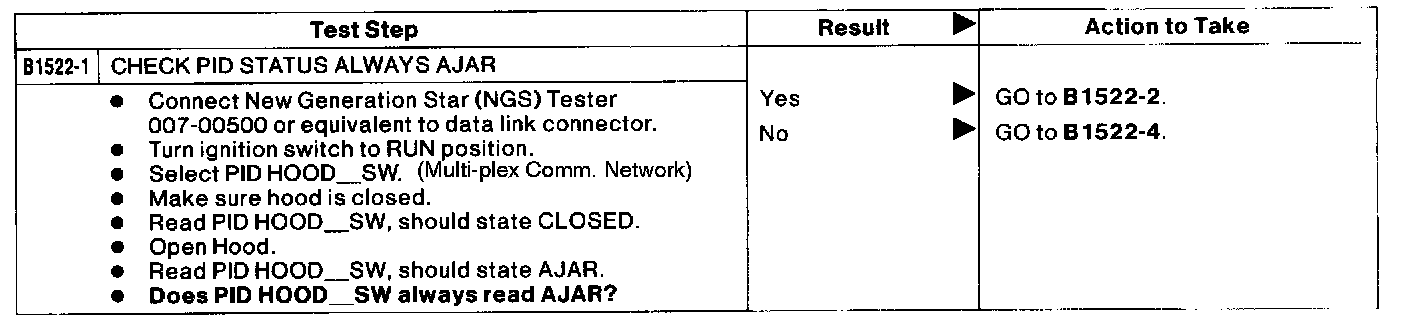

Test Step 1:

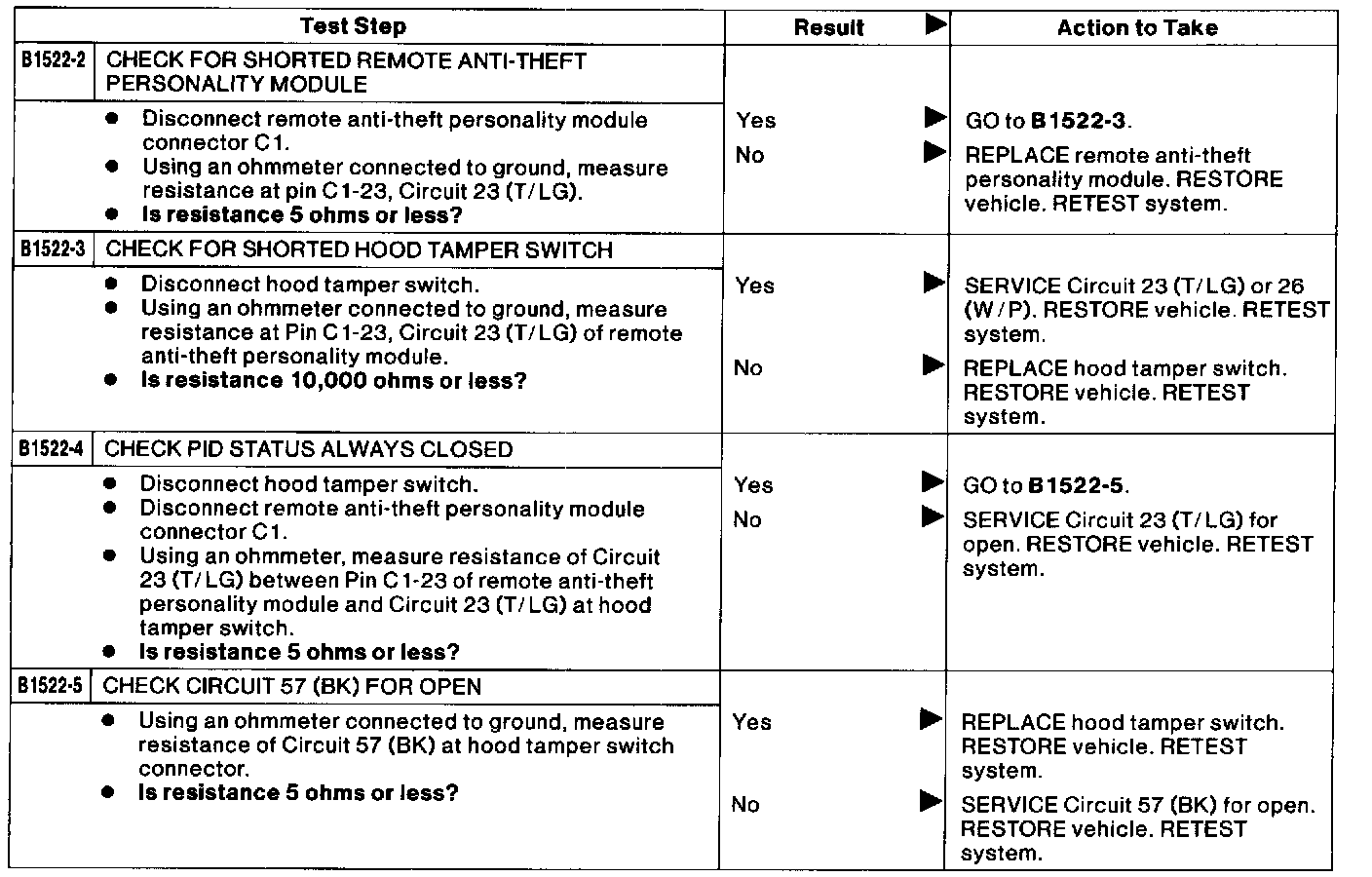

Test Steps 2 - 5:
