Home >> Mercury >> 1996 >> Sable V6-183 3.0L DOHC VIN S MFI >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Diagrams >> Connector Views >> Passive Anti-Theft System Connectors >> Powertrain Controller Module Conn..

Powertrain Controller Module Conn..

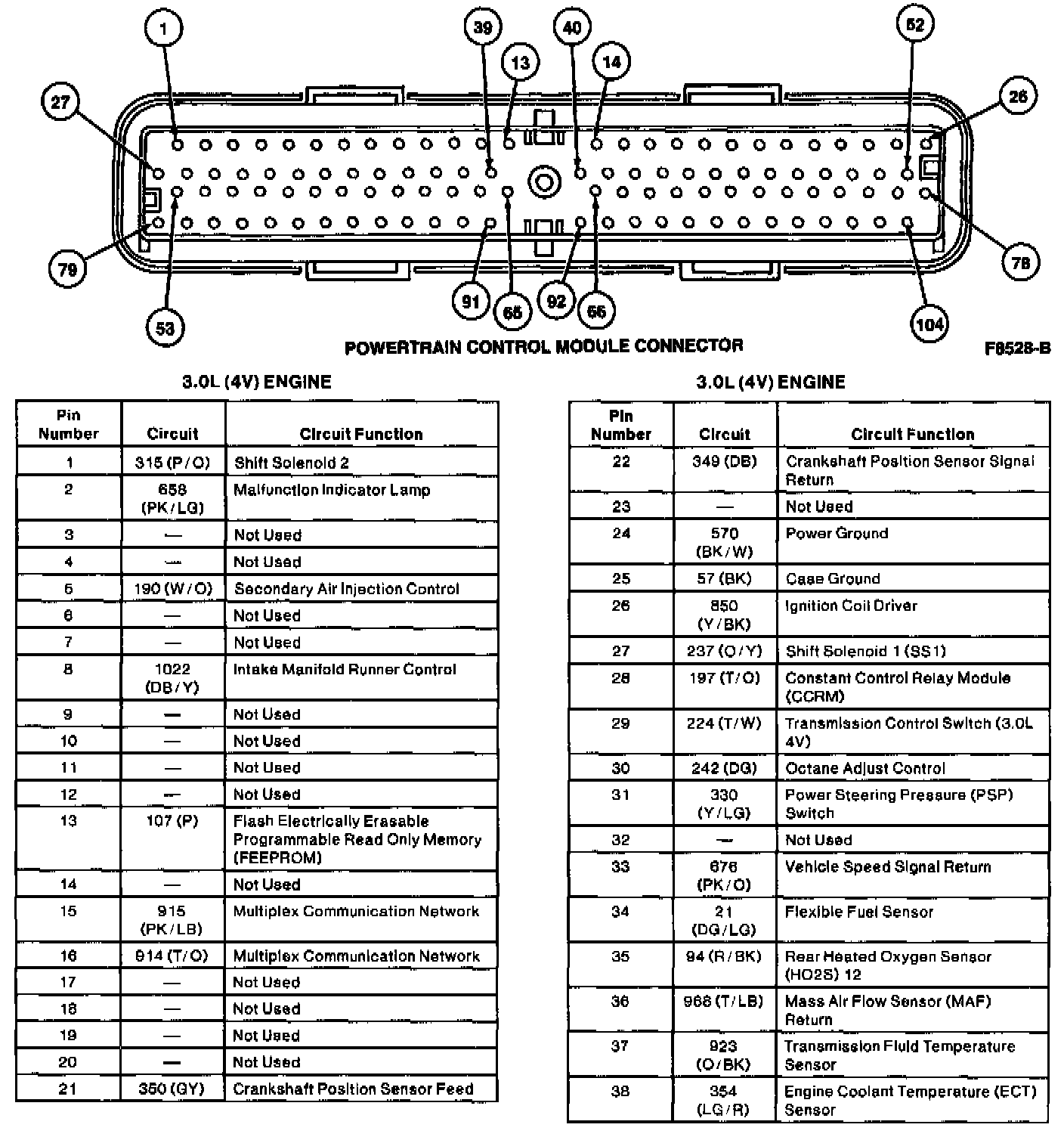

1 of 2:

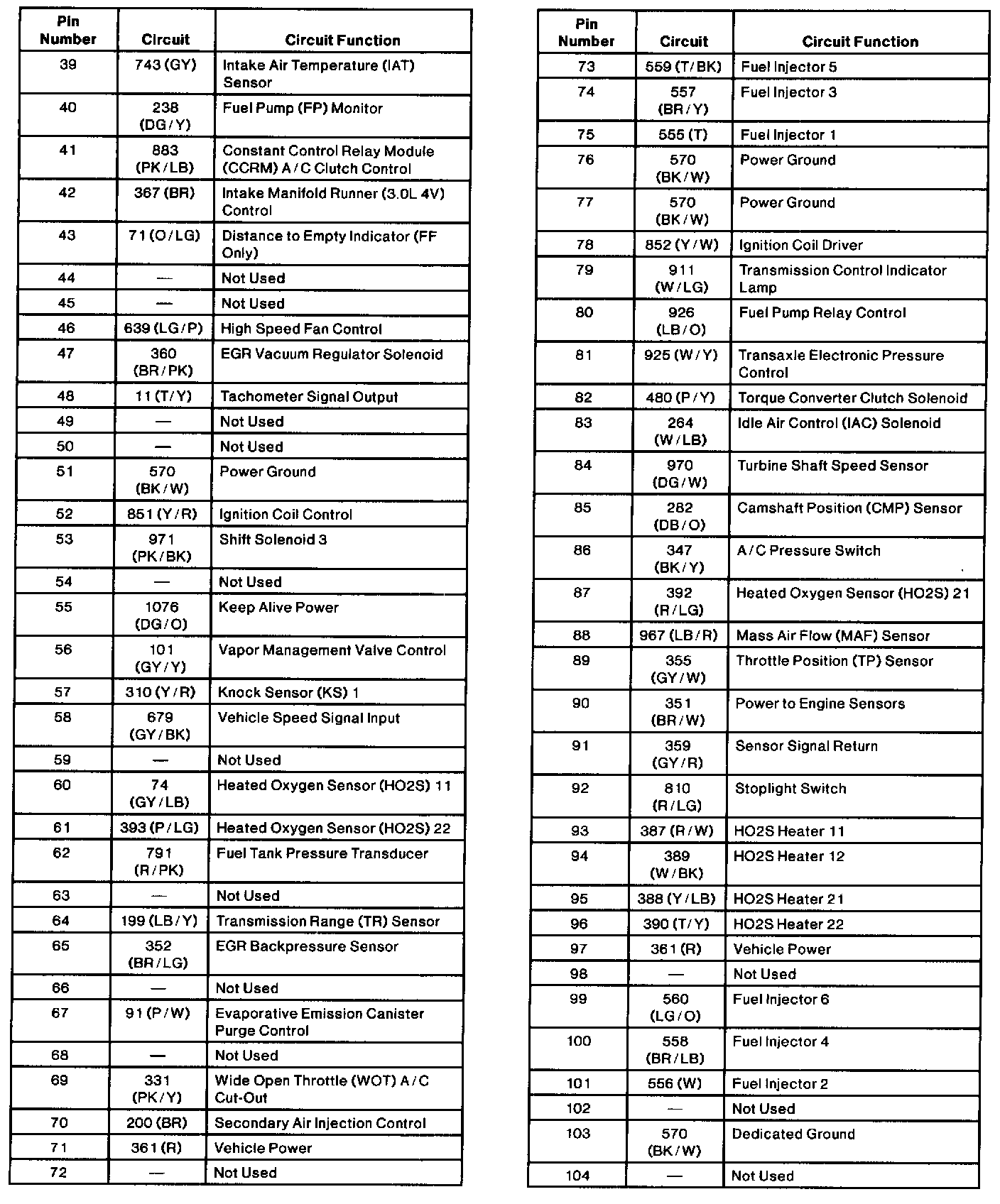

2 of 2:
