With Floor Shift

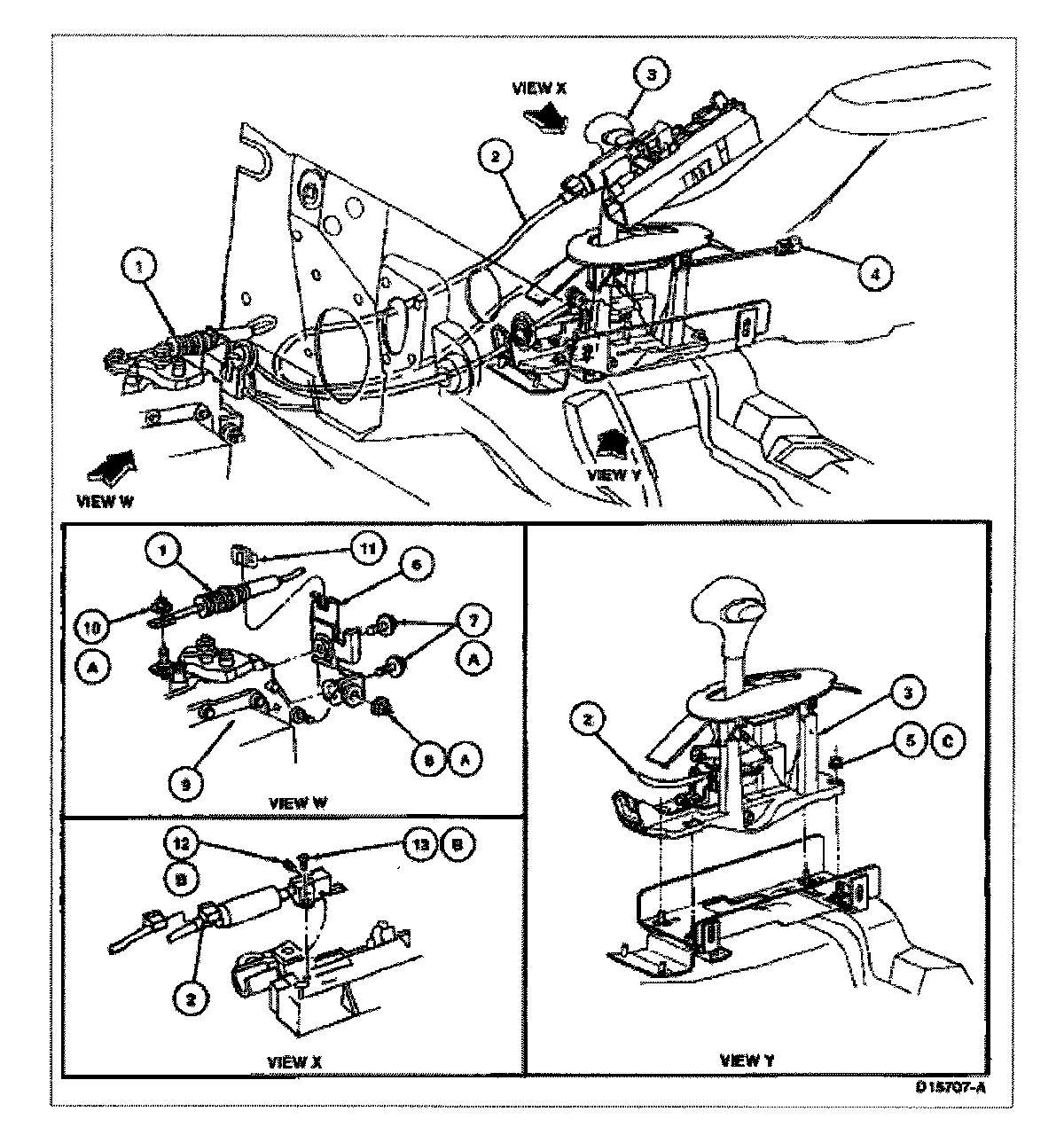

Transmission Shift Cable and Bracket-Floor Shift







Item Part Number Description

1 7E395 Transmission Shift Cable
2 3F719 Ignition/Shifter Interlock Cable
3 7K004 Lever and Housing Assembly
4 14489 Data Link Connector
5 N804794-S56 Nut
6 7k499 Transmission Shift Cable Bracket
7 N804804-S1OO Bolt
8 N803766-S56 Nut
9 7G004 Main Control Cover
10 N801555-S56 Nut
11 7H 181 Shift Actuator Cable Filling
12 N805138-S2 Screw
13 N806038-S58 Screw
A - Tighten to 20-26 Nm (15-19 Lb-Ft)
B - Tighten to 2.0 Nm (l7 Lb-In)




Floor Shift

Removal

1. Disconnect battery ground cable.
2. Remove air cleaner assembly.
3. Remove speed control actuator cable (if equipped).
4. Remove center console assembly.
5. Disconnect transmission shift cable from gearshift lever.
6. Attach mechanics wire to the selector lever end of the transmission shift cable.
7. Remove one nut and disconnect transmission shift cable from manual control lever.
8. Remove transmission shift cable from shift cable bracket.
9. Dislodge transmission shift cable grommet from dash panel and gently pull transmission shift cable through dash panel from engine compartment side being careful not to pull mechanics wire completely through dash panel.
10. Remove two bolts, one nut and shift cable bracket from transaxle.

Installation

1. Install shift cable bracket to transaxle and secure with two bolts and one nut. Tighten bolts and nut to 20-25 Nm (15-18 lb-ft).
2. Attach mechanics wire to shift selector lever end of transmission shift cable and thread opposite end of mechanics wire through dash panel and into passenger compartment.
3. Gently pull transmission shift cable through dash panel and into passenger compartment side until transmission shift cable grommet can be seated into dash panel.
4. Install transmission shift cable into shift cable bracket and secure with shift actuator cable fitting.
5. Connect transmission shift cable to manual control lever and secure with shift cable-to-manual control lever nut. Do not tighten nut until shift cable has been adjusted.
6. Connect transmission shift cable to gearshift lever.
7. Adjust transmission shift cable. Place gearshift lever in (D) position. Tighten shift cable-to-manual control lever nut to 17-23 Nm (13-17 lb-ft).
8. Install center console assembly.
9. Install speed control actuator cable (if equipped).
10. Install air cleaner assembly.
11. Connect battery ground cable.
12. Check transaxle operation in each range. Make sure park mechanism and transmission range (TR) sensor are functioning properly.
