Seat Belt: Adjustments
FASTENING FRONT AND REAR LAP/SHOULDER SAFETY BELTSWARNING: EACH SEATING POSITION IN THE VEHICLE HAS A SPECIFIC SAFETY BELT ASSEMBLY WHICH CONSISTS OF ONE BUCKLE AND ONE TONGUE. THE SAFETY BELT ASSEMBLY IS DESIGNED TO BE USED AS A PAIR AND IS NOT TO BE USED ACROSS SEATING POSITION.
WARNING: DO NOT INTRODUCE SLACK INTO THE SAFETY BELT SYSTEM BECAUSE THE BELT LOCKS UPON IMPACT WHERE IT IS POSITIONED. USE THE SHOULDER SAFETY BELT ON THE OUTSIDE SHOULDER ONLY. NEVER WEAR THE SHOULDER BELT UNDER THE ARM. NEVER SWING IT AROUND THE NECK OVER THE INSIDE SHOULDER. NEVER USE A SINGLE BELT FOR MORE THAN ONE PERSON. ENSURE THE LAP PORTION OF THE BELT IS FITTED SNUGLY AND AS LOW AS POSSIBLE AROUND THE HIPS, NOT ON THE WAIST. FAILURE TO FOLLOW THESE PRECAUTIONS COULD INCREASE THE CHANCE AND/OR SEVERITY OF INJURY IN AN ACCIDENT.
WARNING: IF THE SHOULDER BELT IS OFF YOUR SHOULDER OR ON YOUR UPPER ARM, THERE IS A GREATER RISK OF SEVERE INJURY IN A COLLISION.

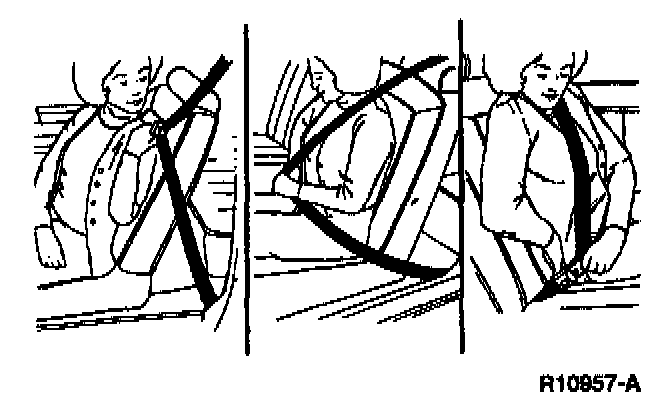

After entering the vehicle, adjust the front seat to obtain the best position for driving comfort, access to controls and visibility. Use the following procedure for fastening front and rear outboard safety belts:
1. Pull the lap/shoulder safety belt from the retractor so that the shoulder portion of the belt crosses the shoulder and chest.
2. Insert the safety belt tongue into the proper buckle until a snap is heard and a latch is felt.
UNFASTENING SAFETY BELTS
To unfasten the safety belt:
1. Push the release button on the buckle. This allows the tongue to unlatch from the buckle.
2. Guide the tongue to its original position while the safety belt retracts. If it is not guided, it may strike you or part of the vehicle.
SHOULDER PORTION ADJUSTMENT
WARNING: DO NOT INTRODUCE SLACK INTO THE SAFETY BELT SYSTEM BECAUSE THE BELT LOCKS UPON IMPACT WHERE IT IS POSITIONED. USE THE SHOULDER SAFETY BELT ON THE OUTSIDE SHOULDER ONLY. NEVER WEAR THE SHOULDER BELT UNDER THE ARM. NEVER SWING IT AROUND THE NECK OVER THE INSIDE SHOULDER. NEVER USE A SINGLE BELT FOR MORE THAN ONE PERSON. ENSURE THE LAP PORTION OF THE BELT IS FITTED SNUGLY AND AS LOW AS POSSIBLE AROUND THE HIPS, NOT ON THE WAIST. FAILURE TO FOLLOW THESE PRECAUTIONS COULD INCREASE THE CHANCE AND/OR SEVERITY OF INJURY IN A COLLISION.
The shoulder restraint portion of the safety belt adjusts automatically to a snug position.
LAP PORTION ADJUSTMENT
WARNING: DO NOT INTRODUCE SLACK INTO THE SAFETY BELT SYSTEM BECAUSE THE BELT LOCKS UPON IMPACT WHERE IT IS POSITIONED. USE THE SHOULDER SAFETY BELT ON THE OUTSIDE SHOULDER ONLY. NEVER WEAR THE SHOULDER BELT UNDER THE ARM. NEVER SWING IT AROUND THE NECK OVER THE INSIDE SHOULDER. NEVER USE A SINGLE BELT FOR MORE THAN ONE PERSON. ENSURE THE LAP PORTION OF THE BELT IS FITTED SNUGLY AND AS LOW AS POSSIBLE AROUND THE HIPS, NOT ON THE WAIST. FAILURE TO FOLLOW THESE PRECAUTIONS COULD INCREASE THE CHANCE AND/OR SEVERITY OF INJURY IN A COLLISION.
Pull up on the shoulder portion of the belt to tighten the lap portion to a snug fit. Be sure the belt is as low on hips as possible.
The belt system allows freedom of movement, locking only on hard braking, hard cornering or impacts of approximately 8 km/h (5mph) or more. The system cannot be made to lock by jerking on the belt.
FRONT SHOULDER STRAP BELT HEIGHT ADJUSTMENT
WARNING: DO NOT INTRODUCE SLACK INTO THE SAFETY BELT SYSTEM BECAUSE THE BELT LOCKS UPON IMPACT WHERE IT IS POSITIONED. USE THE SHOULDER SAFETY BELT ON THE OUTSIDE SHOULDER ONLY. NEVER WEAR THE SHOULDER BELT UNDER THE ARM. NEVER SWING IT AROUND THE NECK OVER THE INSIDE SHOULDER. NEVER USE A SINGLE BELT FOR MORE THAN ONE PERSON. ENSURE THE LAP PORTION OF THE BELT IS FITTED SNUGLY AND AS LOW AS POSSIBLE AROUND THE HIPS, NOT ON THE WAIST. FAILURE TO FOLLOW THESE PRECAUTIONS COULD INCREASE THE CHANCE AND/OR SEVERITY OF INJURY IN A COLLISION.
To adjust shoulder safety belt height adjuster, squeeze the release button on the adjuster knob and slide the adjuster up or down.
WARNING: EACH SEATING POSITION IN THE VEHICLE HAS A SPECIFIC SAFETY BELT ASSEMBLY WHICH CONSISTS OF ONE BUCKLE AND ONE TONGUE. THE SAFETY BELT ASSEMBLY IS DESIGNED TO BE USED AS A PAIR AND IS NOT TO BE USED ACROSS SEATING POSITIONS.
FASTENING CENTER LAP BELT
The vehicle is equipped with a manually-adjusted lap belt for the front and rear center seat occupant. Insert the belt tongue into the proper buckle until a snap is heard. Pull on both sides of lap safety belt to ensure the buckle is latched. Pull up on the end of the belt to tighten the lap portion to a snug fit. Make sure the lap safety belt is as low on the hips as possible.
