Evaporative Emissions System: Locations

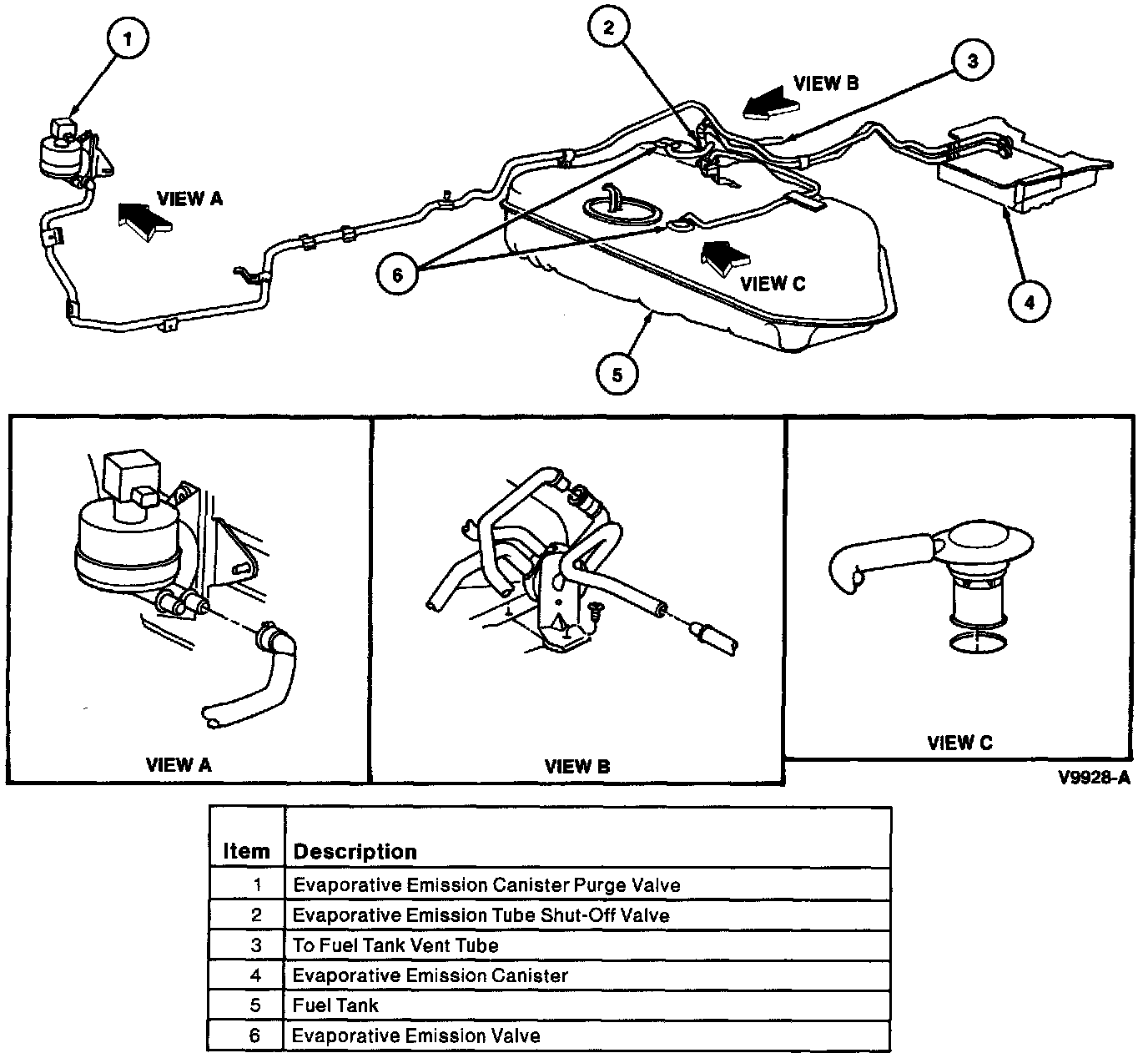

Evaporative Emission Components:
Evaporative Emission Components:

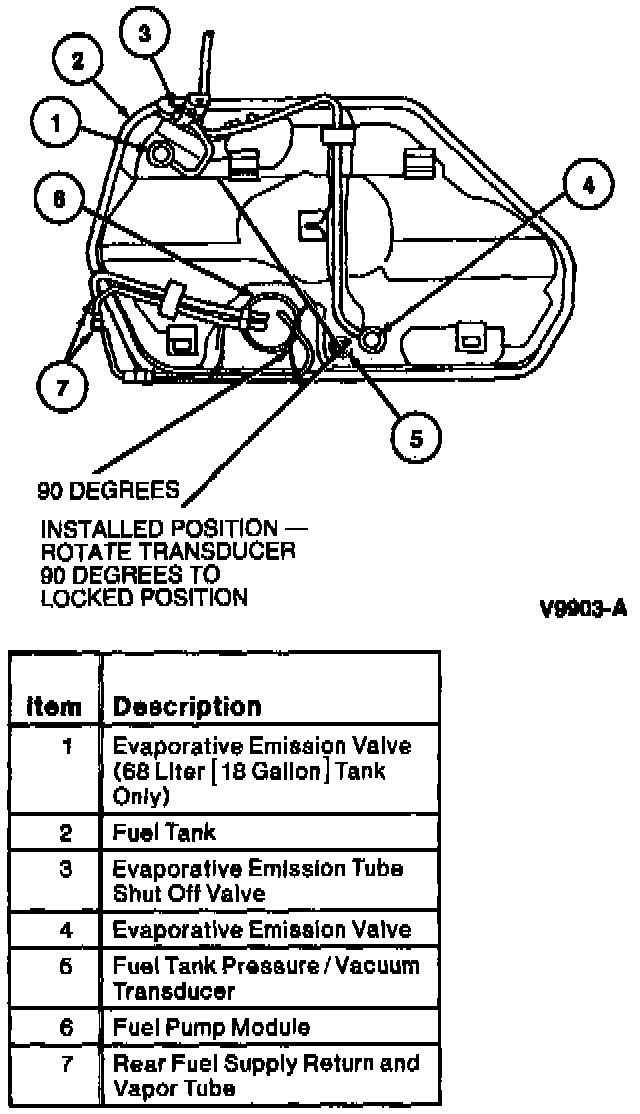

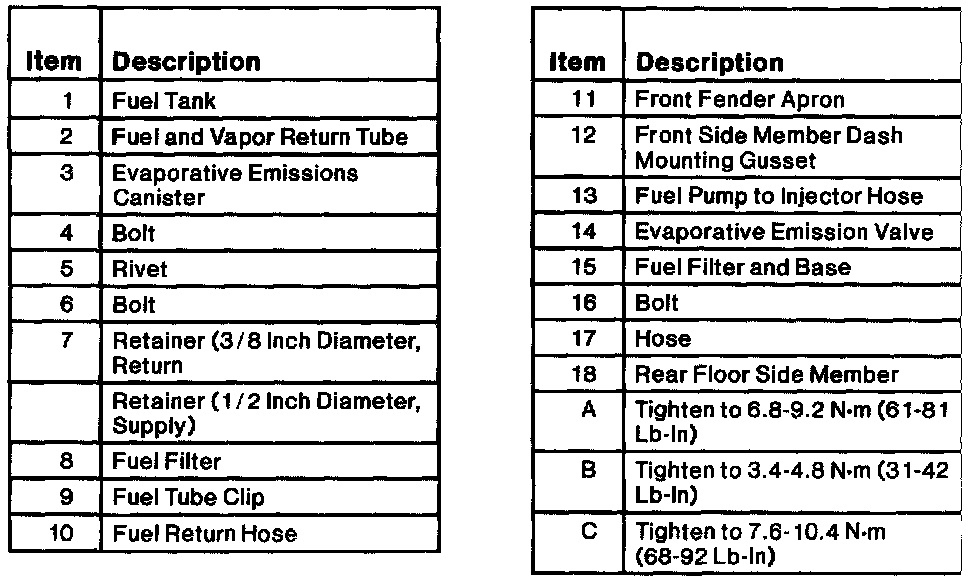

Fuel System:
Fuel System:
