Evaporative Emission Control Canister: Service and Repair

Evaporative Emission Canister:

REMOVAL and INSTALLATION

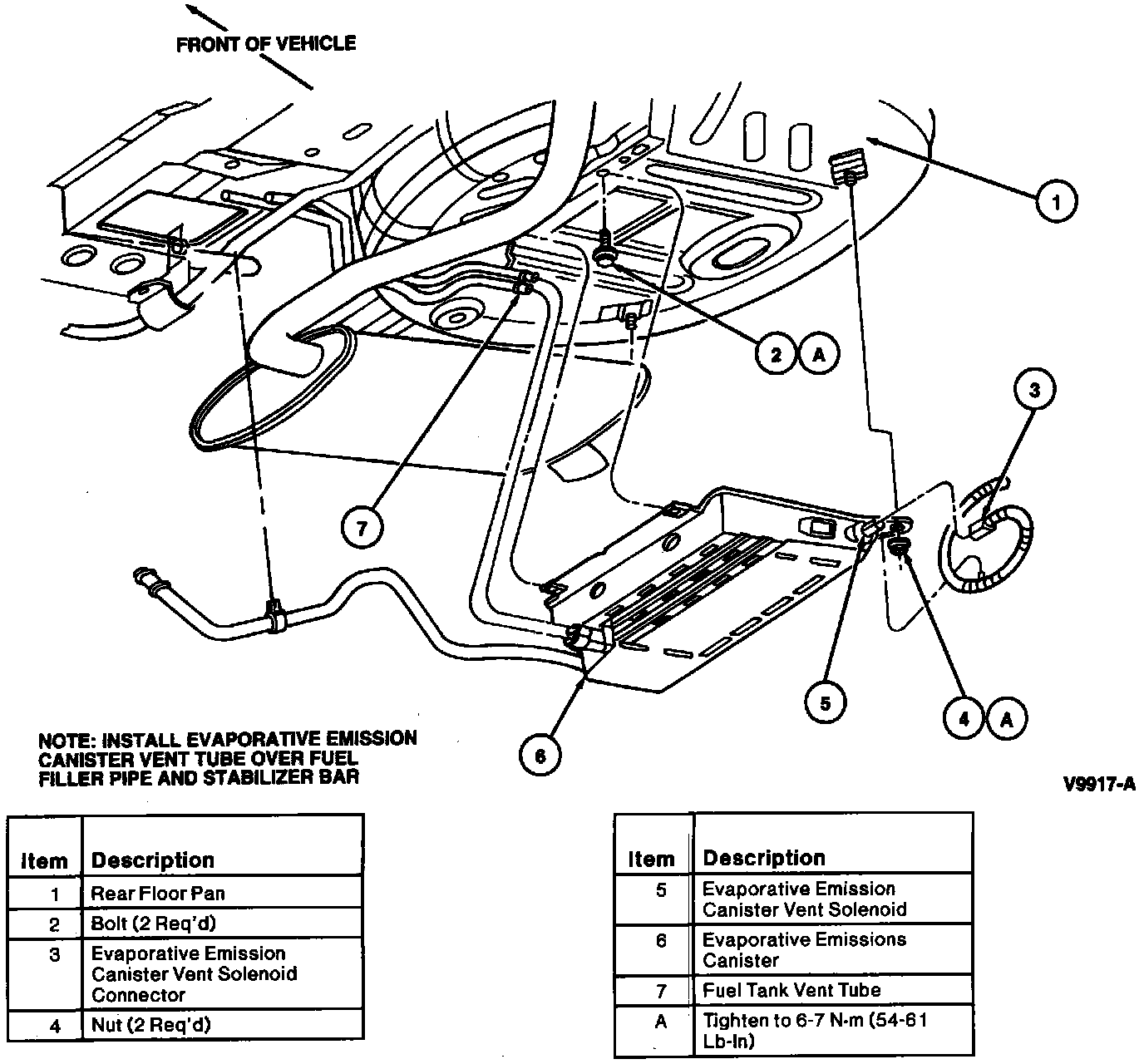

1. Raise vehicle on hoist.

2. Disconnect the evaporative emission canister vent tube from the secondary vent hose at fuel filler neck.

3. Disconnect electrical connector from the evaporative emission canister vent solenoid.

4. Remove evaporative emission canister retaining bolts and nuts.

5. Partially lower EVAP canister and disconnect fuel tank vent tube from evaporative emissions canister.

6. To install, reverse Removal procedure.
- Tighten evaporative emission canister retaining bolts and nuts to 5.2-7.2 Nm (46-63 lb in).

7. Perform system leak check as follows:
a. Disconnect and plug fuel and vapor return tube leading to the EVAP canister at the EVAP canister purge valve.

b. Plug evaporative emission tube at the evaporative emissions canister.

c. Using Rotunda Fuel Tank Leak Tester 134-R0003, pressurize the fuel system through the test fuel tank filler cap.

d. Verify that the pressure within the system does not decay.

e. If pressure does decay, determine the cause of the leak, then repair.

f. Remove plugs and reconnect fuel and vapor return tube to the evaporative emission canister purge valve and evaporative emission tube to the evaporative emissions canister.
