DR - Cylinder Identification (CID) Circuit
>>

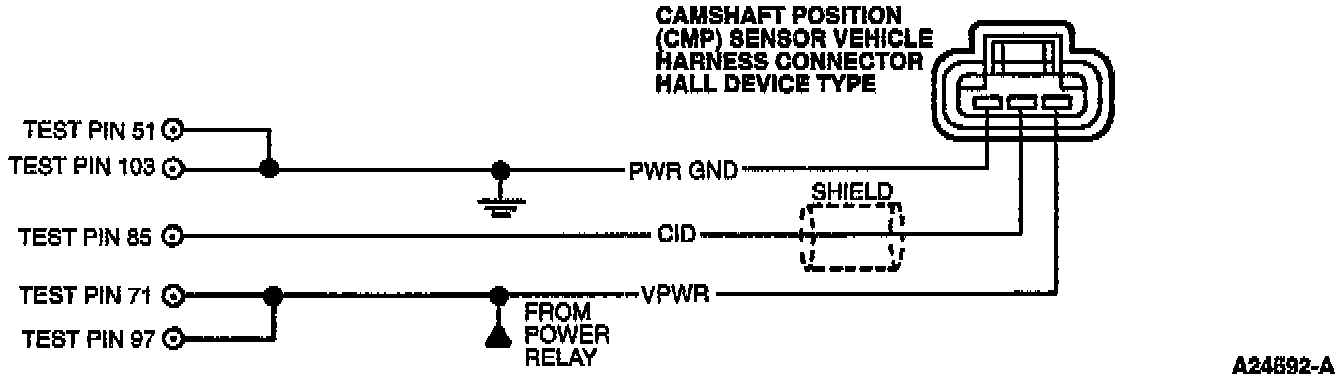

Pinpoint Test Schematic
Pinpoint Test Schematic
3.0L-2V Taurus/Sable, 3.0L(FF) Taurus/Sable, 3.8L Mustang/Thunderbird/Cougar, 3.0L Ranger/Aerostar, 4.0L Ranger/Explorer/Aerostar, 3.8L Windstar, 5.0L Explorer, 4.2L F-Series:
