Home >> Mercury >> 1996 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Speedometer Cable >> Testing and Inspection

Speedometer Cable: Testing and Inspection

Test E: Speedometer Reads Inaccurately.:





Test E1-E5

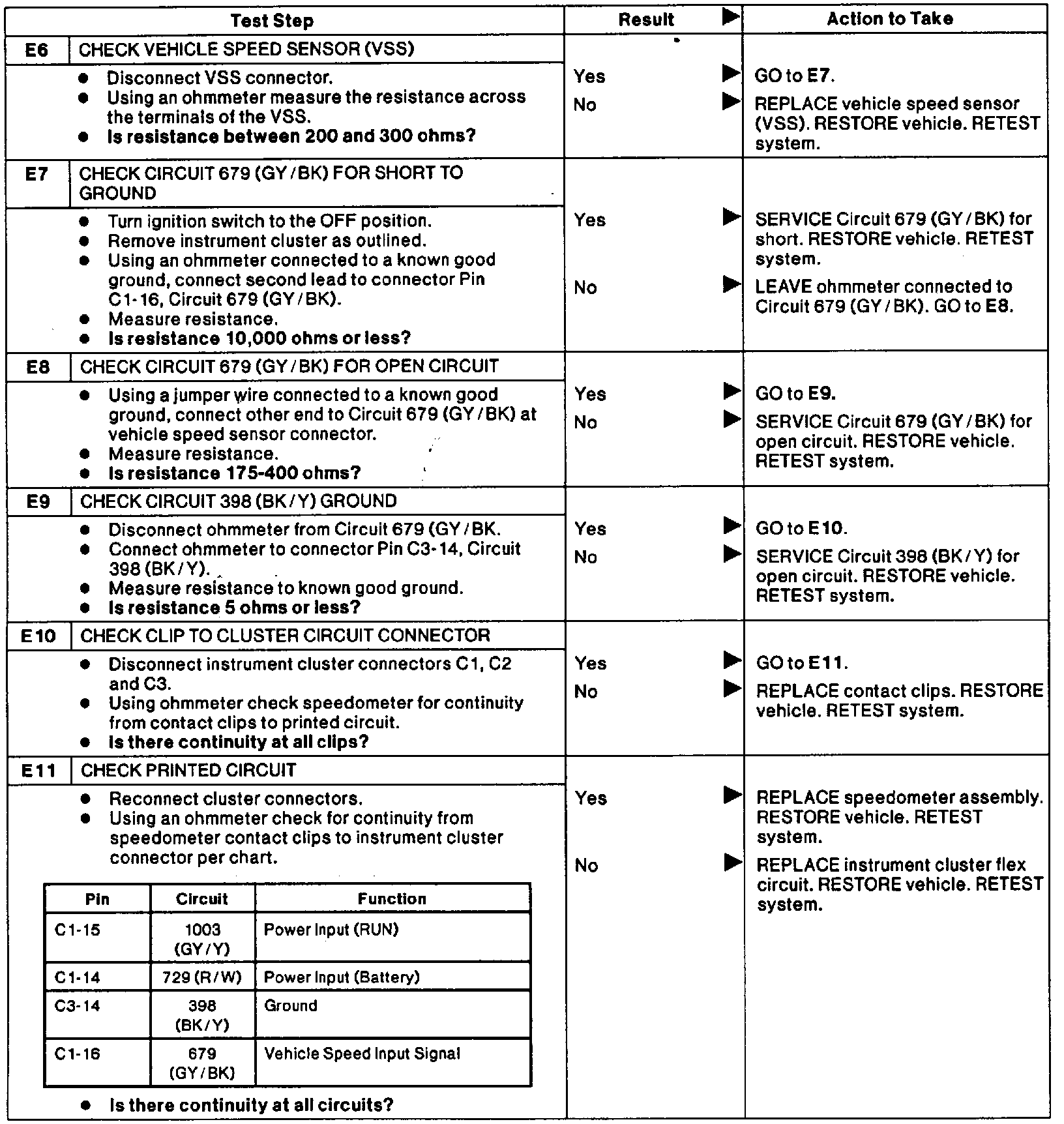

Test E: Speedometer Reads Inaccurately.:





Test E6-E11
