Exhaust Vent

REMOVAL






1. Remove the rear bumper cover.

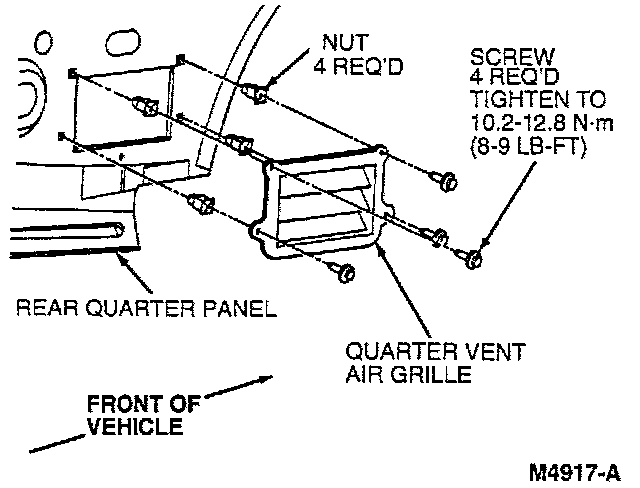

2. Remove the four screws retaining the quarter vent air grille to the rear quarter panel and remove the quarter vent air grille.

INSTALLATION
1. Install the quarter vent air grille and tighten the four retaining screws to 10.2-12.8 Nm (8-9 ft lb).
2. Install the rear bumper cover.
