Front Engine Mounts

LEFTHAND & RIGHTHAND FRONT ENGINE SUPPORT INSULATORS

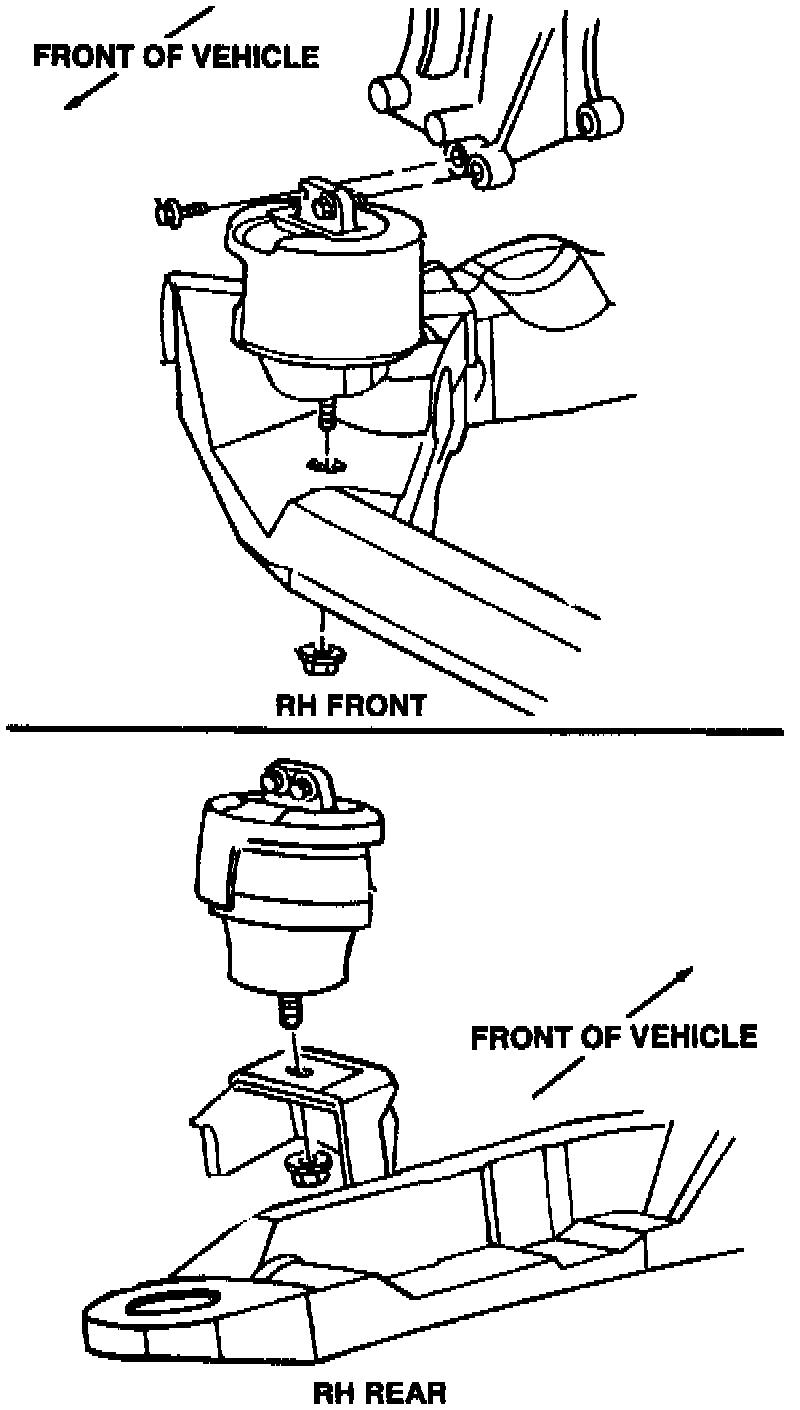

Front Engine Support Insulators (3.0L 2V):

Front And Rear Engine Support Insulators (3.0L 4V Engine):

1. Raise and support vehicle.
2. Place jack and wood block in suitable place under engine block.
3. Remove LH and RH front engine support insulator to subframe retaining nuts.
4. Raise jack assembly enough to remove load from LH and RH engine support insulators.
5. Remove bolts from LH and RH engine support insulators, then the insulators from the subframe.
6. Reverse procedure to install.
