Home
>>
Mercury
>>
1996
>>
Sable V6-182 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Exterior Lamps
Exterior Lamps

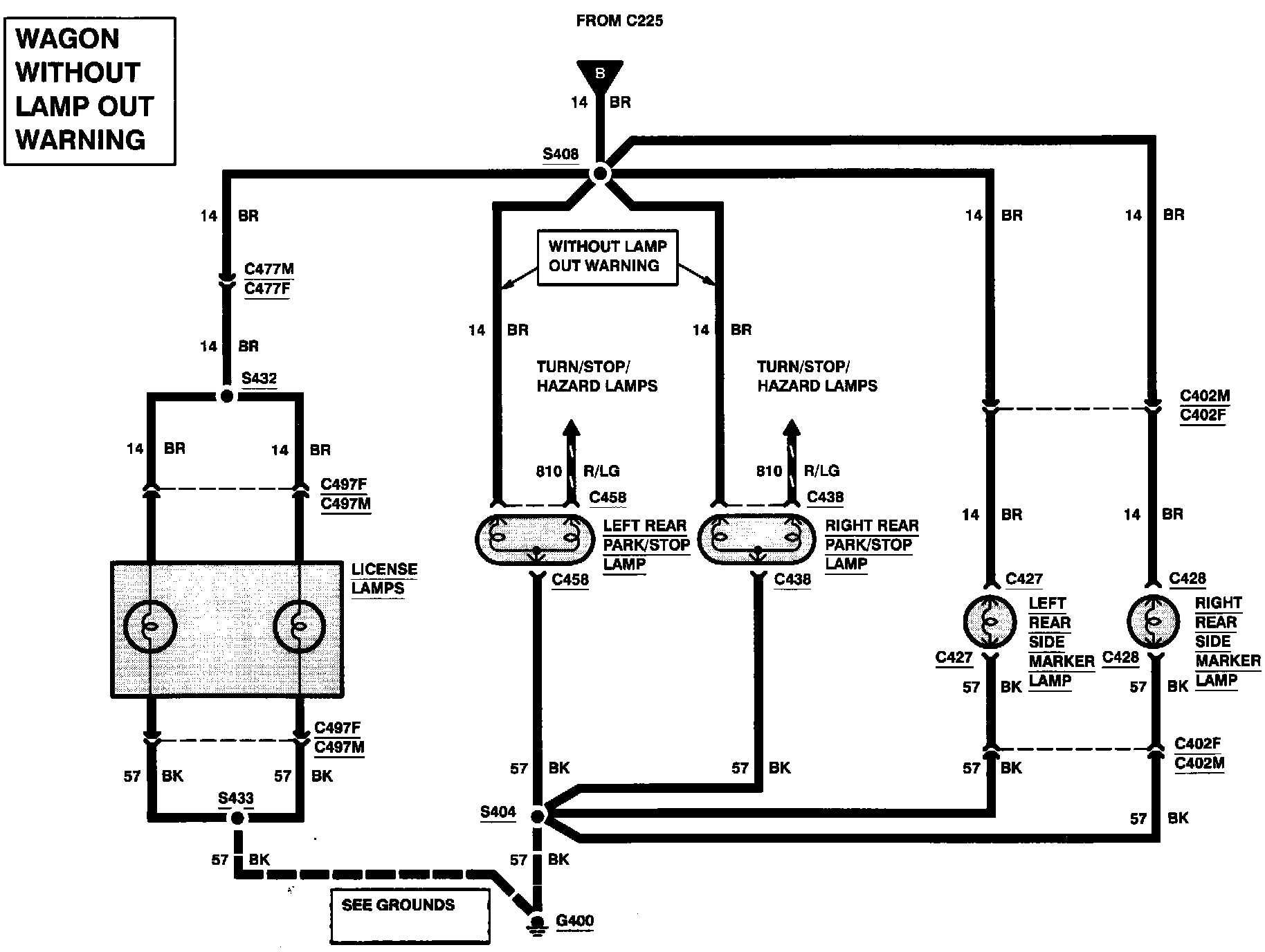

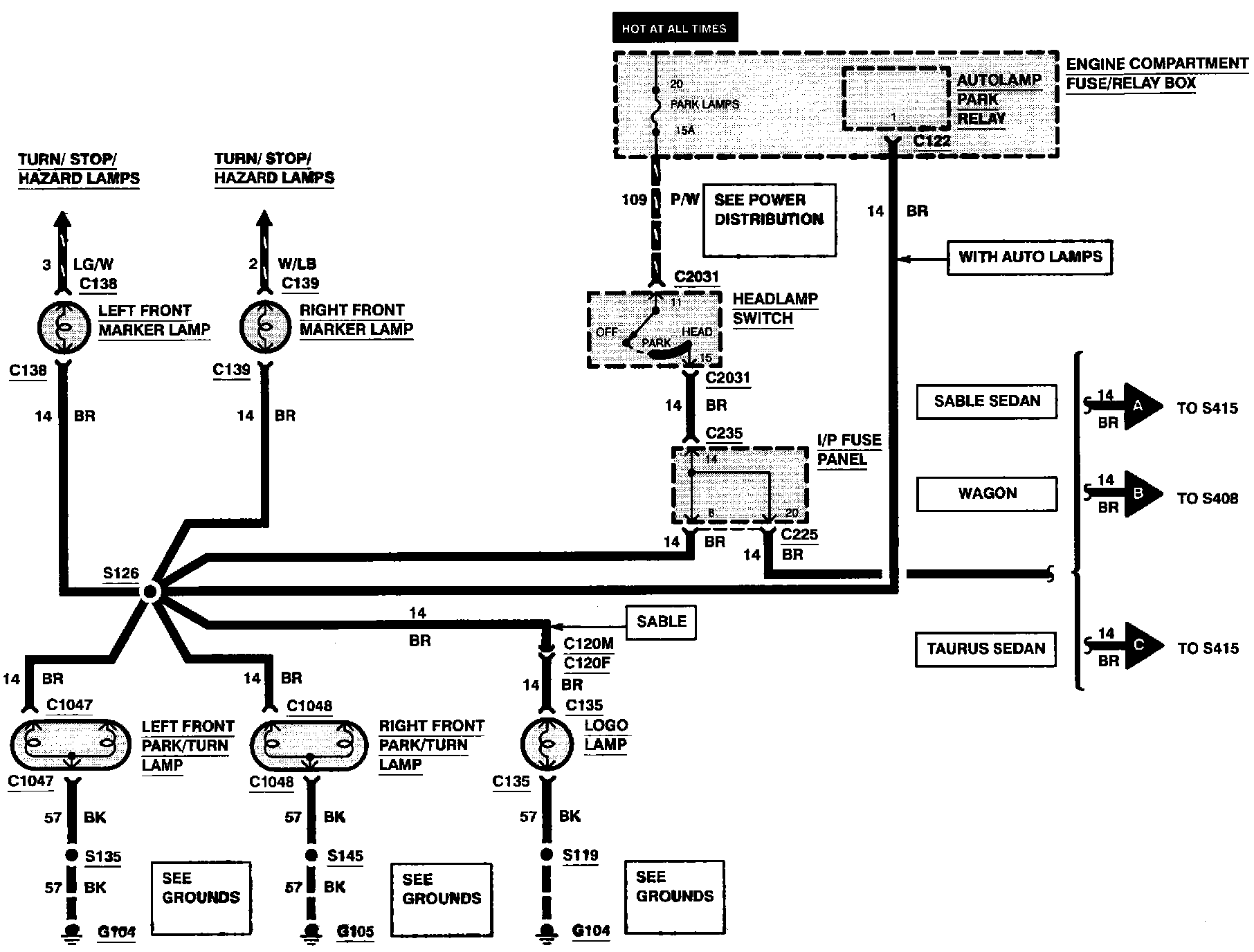

Exterior Lamps (Part 1 Of 7):

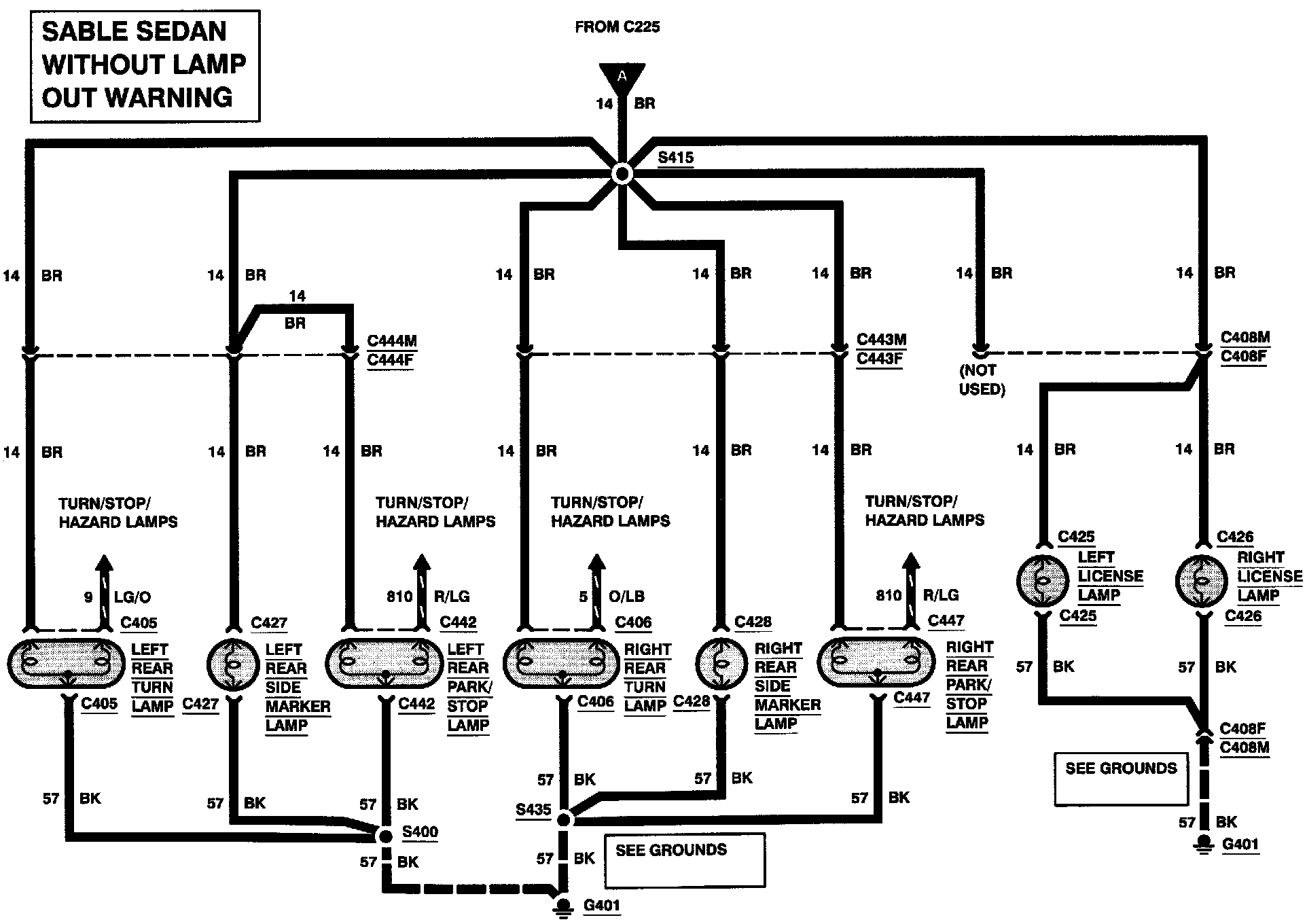

Exterior Lamps (Part 2 Of 7):

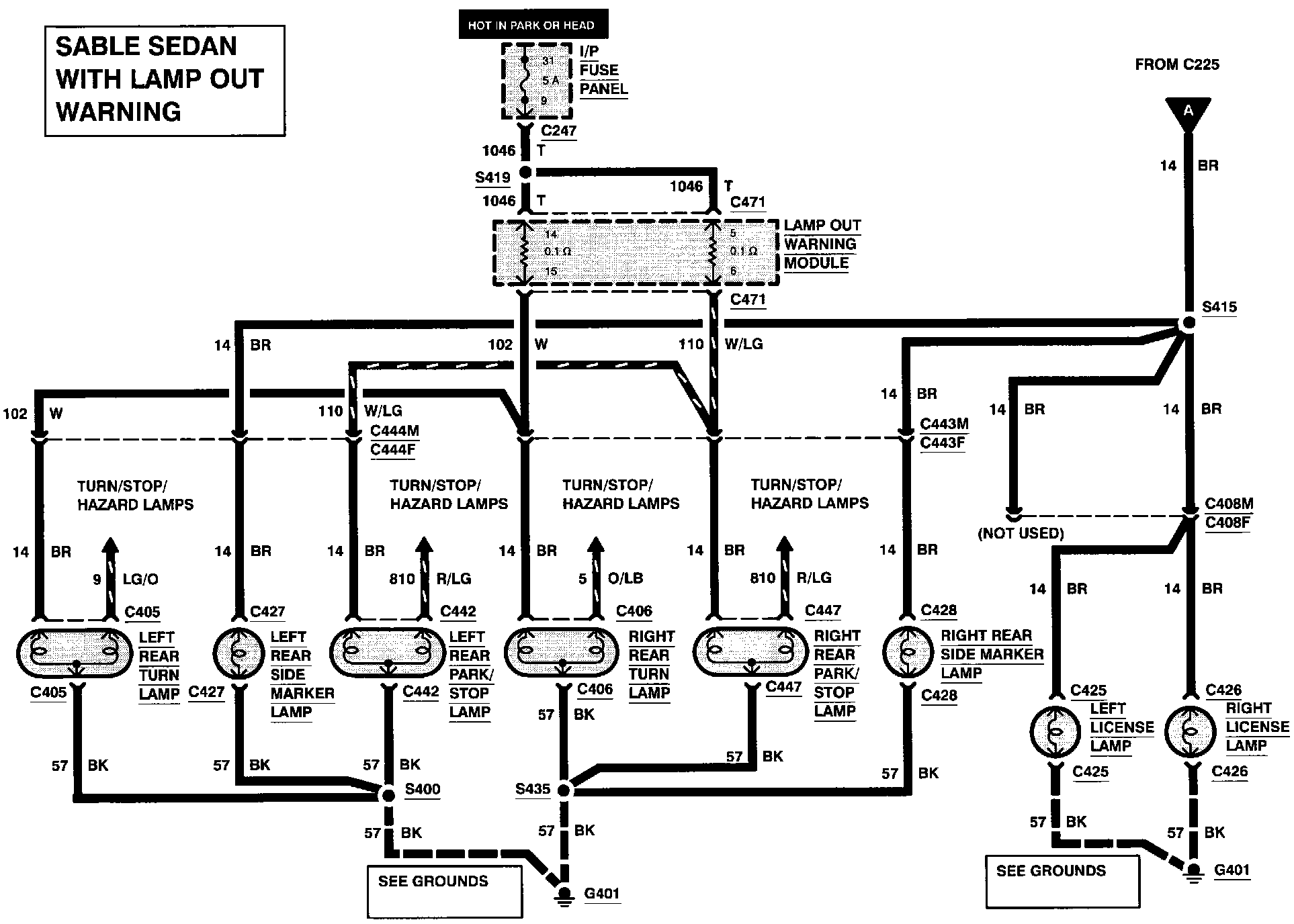

Exterior Lamps (Part 4 Of 7):

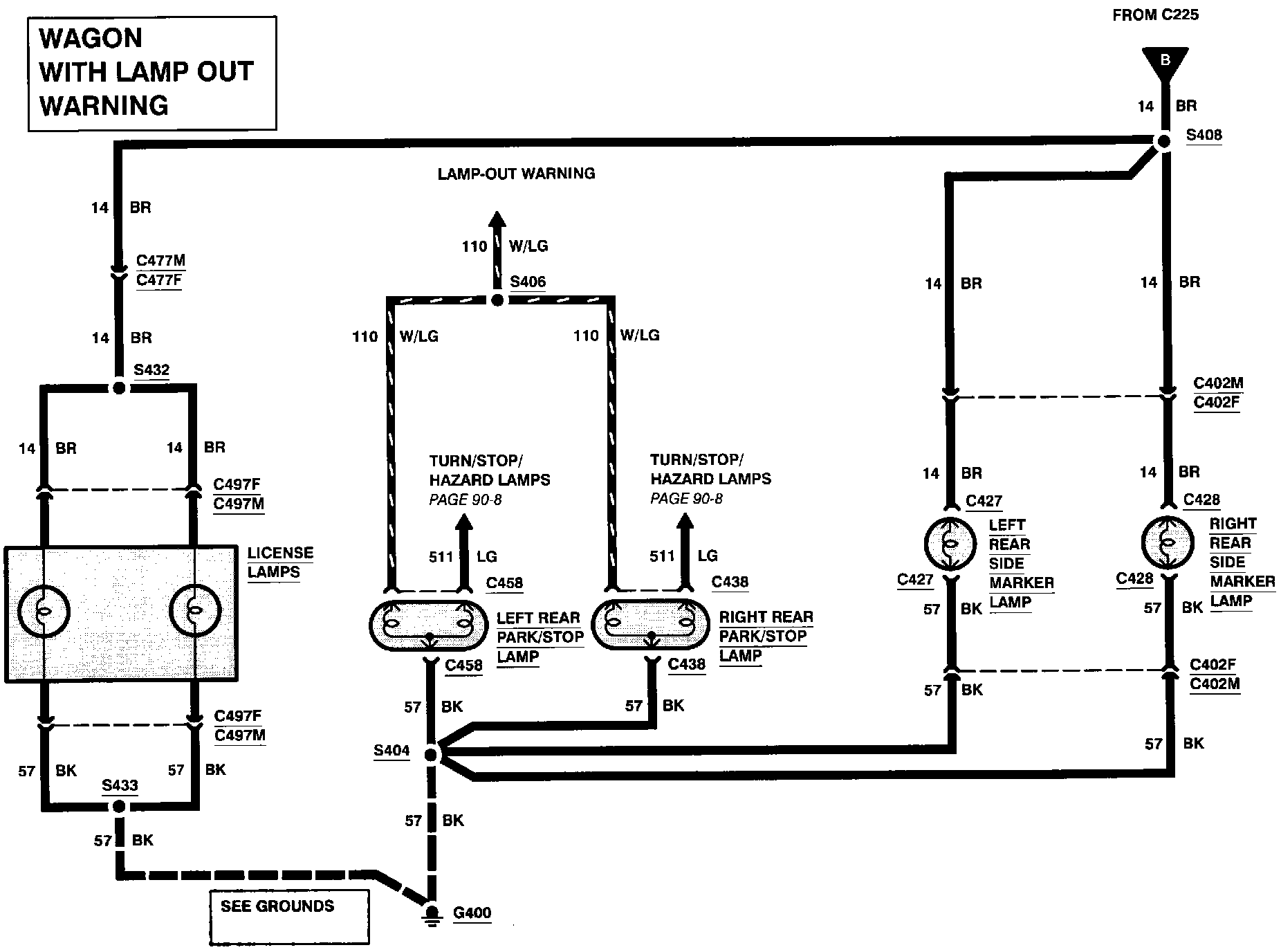

Exterior Lamps (Part 5 Of 7):
Exterior Lamps (Part 7 Of 7):
