With CD4E

INSPECTION
1. Check for leakage as follows:
a. Inspect torque converter welds. If leakage is indicated, remove converter.
b. Assemble Rotunda Torque Converter Leak Test Kit tool No. 021-00054 or equivalent to converter, then check for leakage according to test kit manufacturer's instructions.
2. Check one-way clutch as follows:

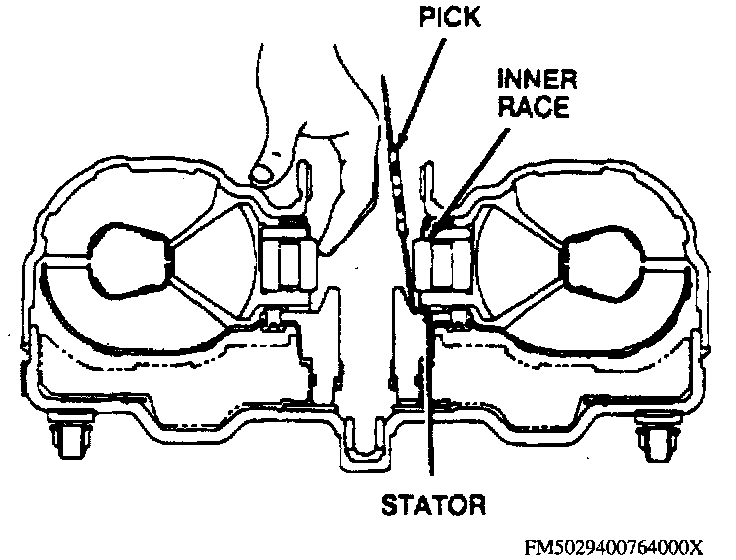

Torque Converter One-Way Clutch Inspection:

a. Insert 0-ring tool No. T71P-19703-C or equivalent in slot on bottom of stator.
b. While holding tool, rotate inner race. One-way clutch should hold in counterclockwise direction and rotate in clockwise direction as viewed from converter opening.
c. If results are not as indicated, replace converter.
3. Check pump insert as follows:

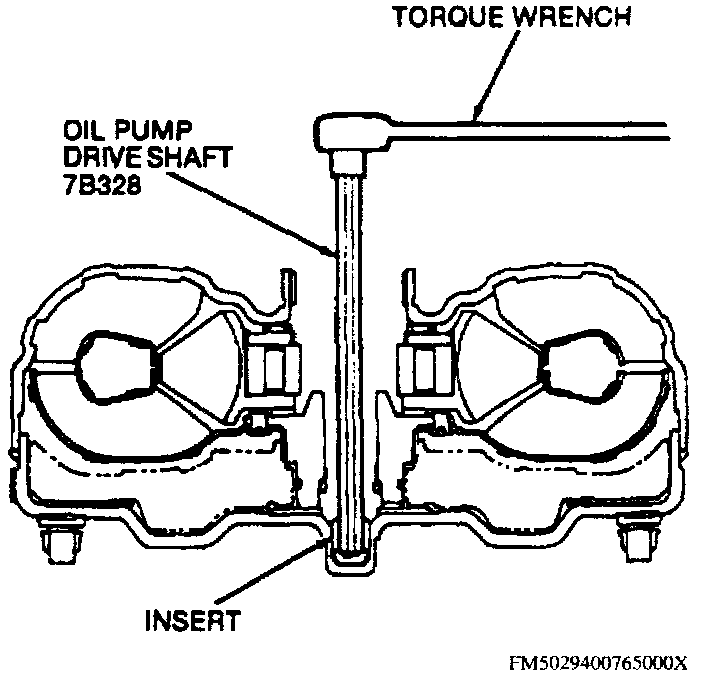

Torque Converter Pump Insert Inspection:

a. Install oil pump driveshaft in torque converter, then fit a torque wrench with a 5/16 Allen head socket onto shaft.
b. Rotate torque wrench while holding converter still. Insert should hold a torque of 10 ft lbs.
c. If results are not as indicated, replace converter.
4. Check turbine torque as follows:
a. Install endplay checking tool No. T80L-7902-A and endplay checking tool sleeve tool No. T94P-77000-V or equivalents in torque converter turbine splines.
b. Attach torque wrench to assembled tools, then rotate wrench while holding converter still. Torque required to turn turbine should not exceed 4.4 ft lbs.
c. If results are not as indicated, replace converter.
5. Check converter endplay as follows:
a. Install endplay checking tool No. T80L-7902-A and endplay checking tool sleeve tool No. T94P-77000-V or equivalents in turbine, then tighten center collet on tool.
b. Attach dial indicator and bracket set tool No. TOOL-4201-0 or equivalent to endplay checking tool, then position indicator button on converter housing and zero indicator.

NOTE: Dial indicator must be between converter ridges.

c. Pull up on endplay checking tool and observe dial indicator. Endplay should not exceed 0.050 inch.
d. If results are not as indicated, replace converter.
