Line Pressure Test

LINE PRESSURE TEST

CAUTION: Perform line pressure test prior to performing stall test. If line pressure is low at stall, transaxle damage will occur.

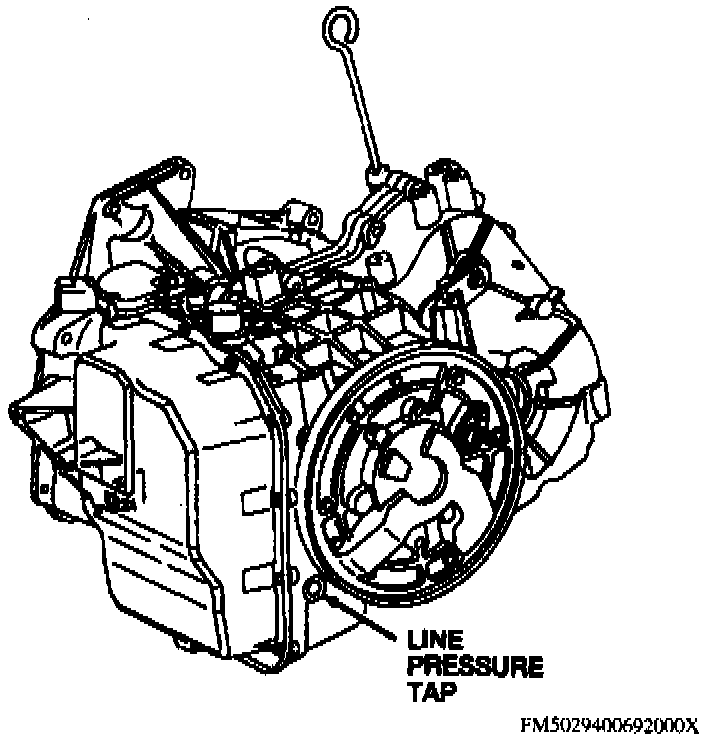

Line Pressure Tap Location:

1. Connect pressure gauge to line pressure tap, then start engine and check line pressures.

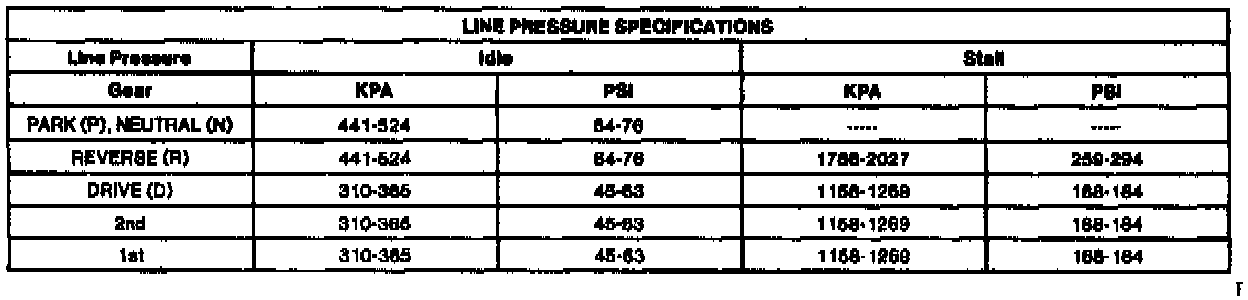

Line Pressure Chart:

2. Refer to the Line Pressure Chart for line pressure specifications.
3. If line pressure is not within specifications, perform pinpoint and air pressure tests and service main control system or pump as necessary.
