Home >> Mercury >> 1996 >> Mystique V6-153 2.5L DOHC >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Diagrams (By Ground Number) >> G303 >> With Power Windows

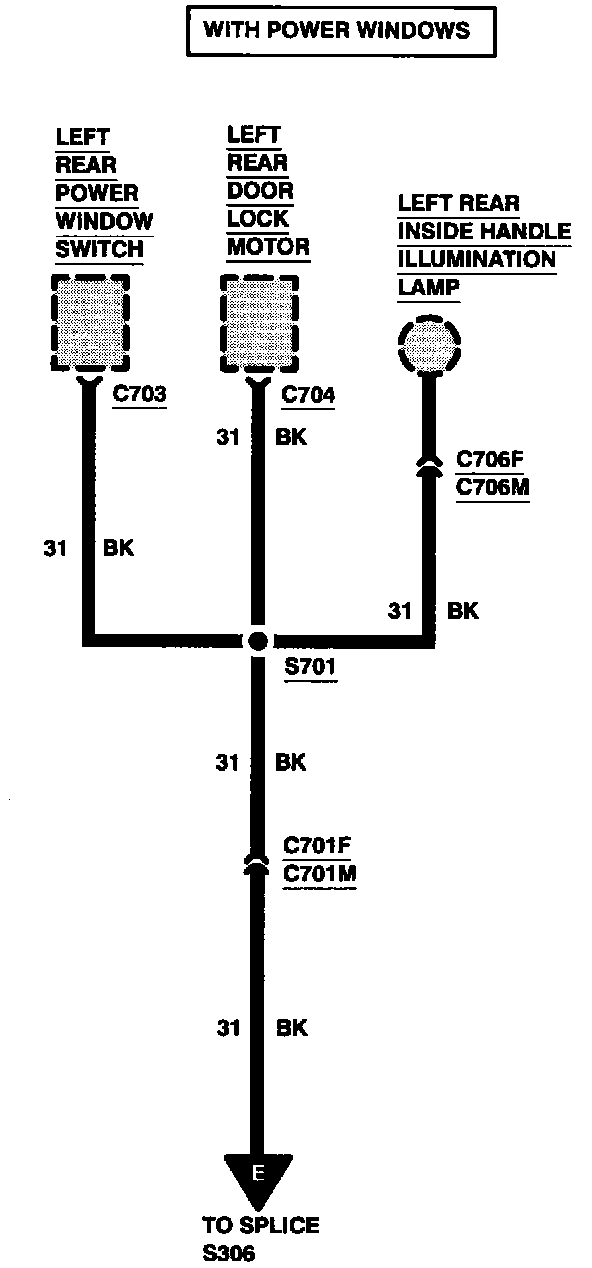

With Power Windows

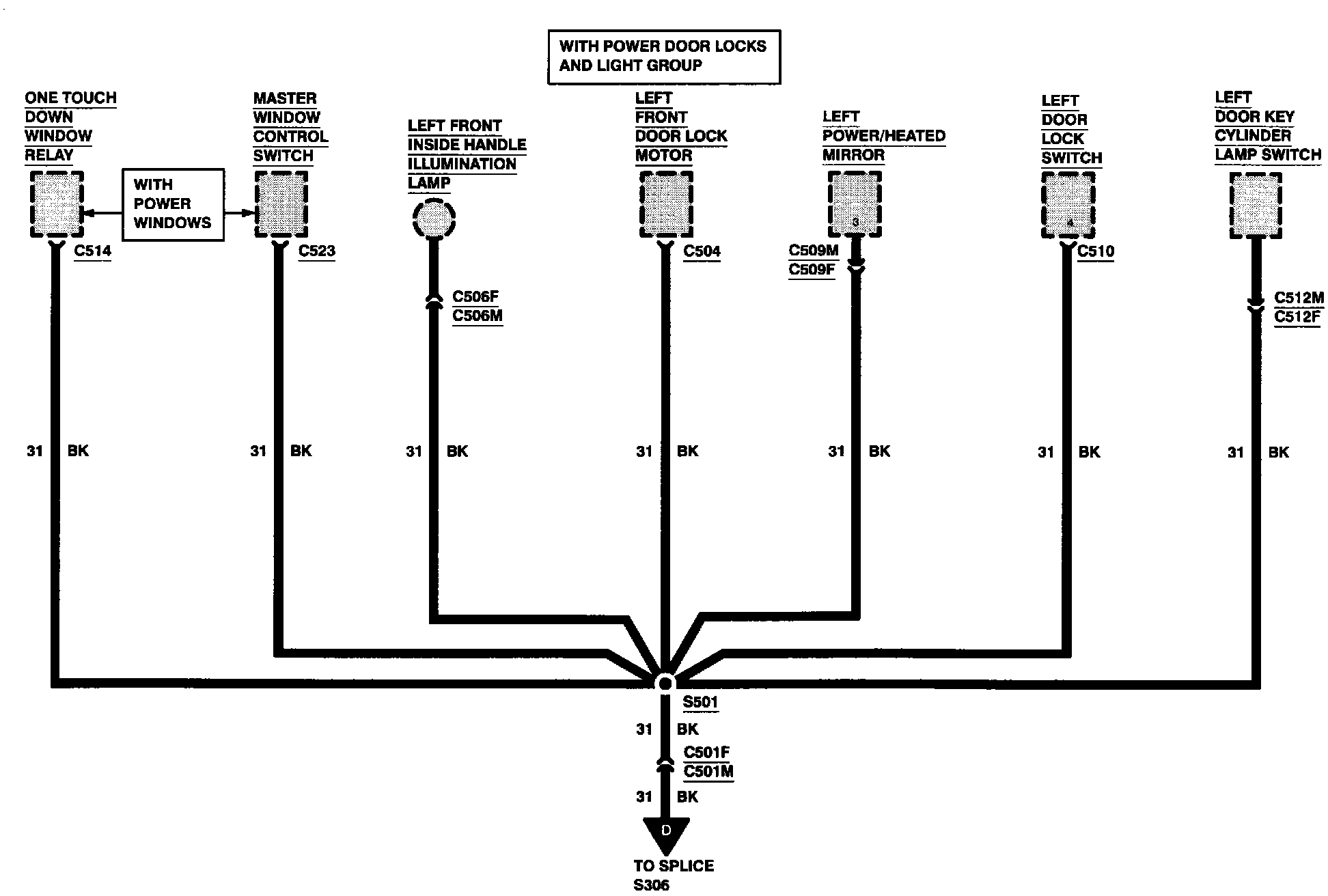

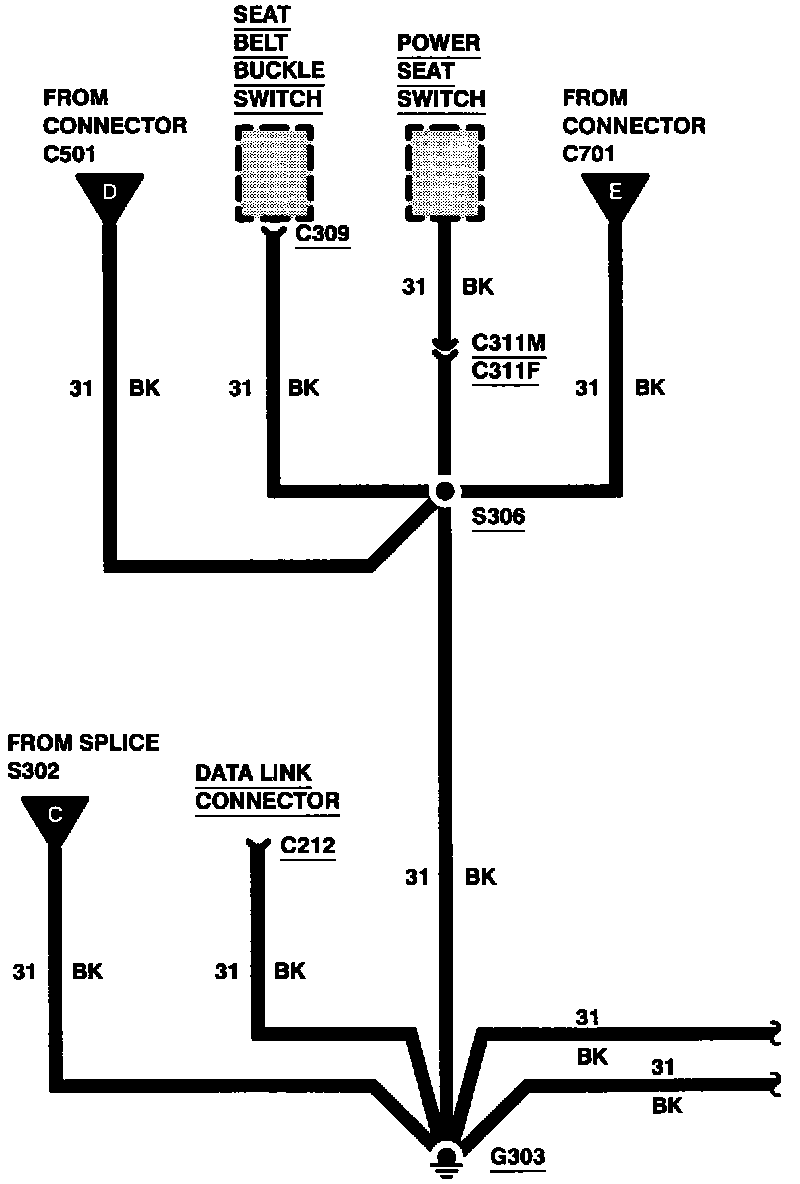

Grounds (G303):




Grounds (G303):




Grounds (G303):

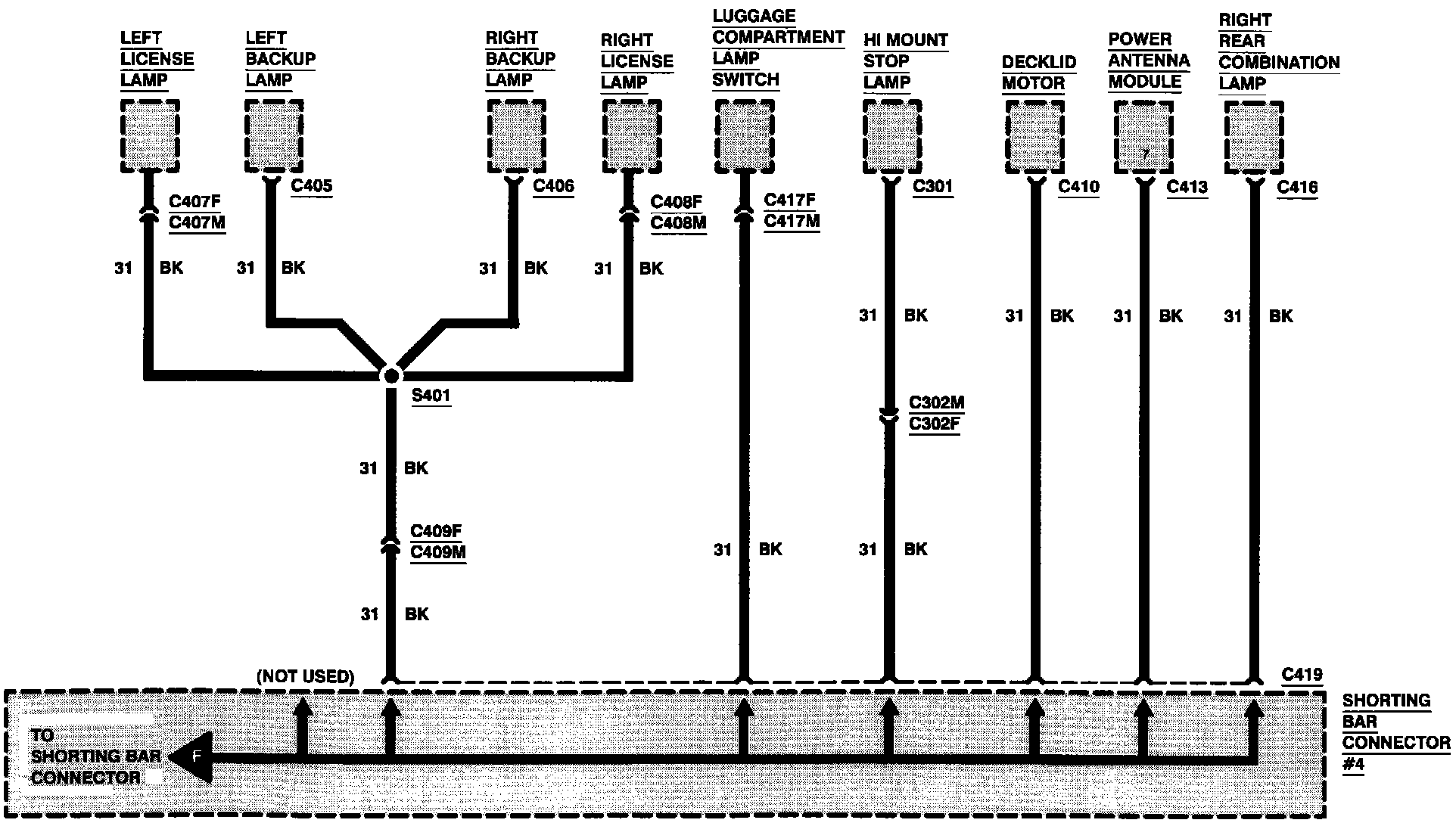

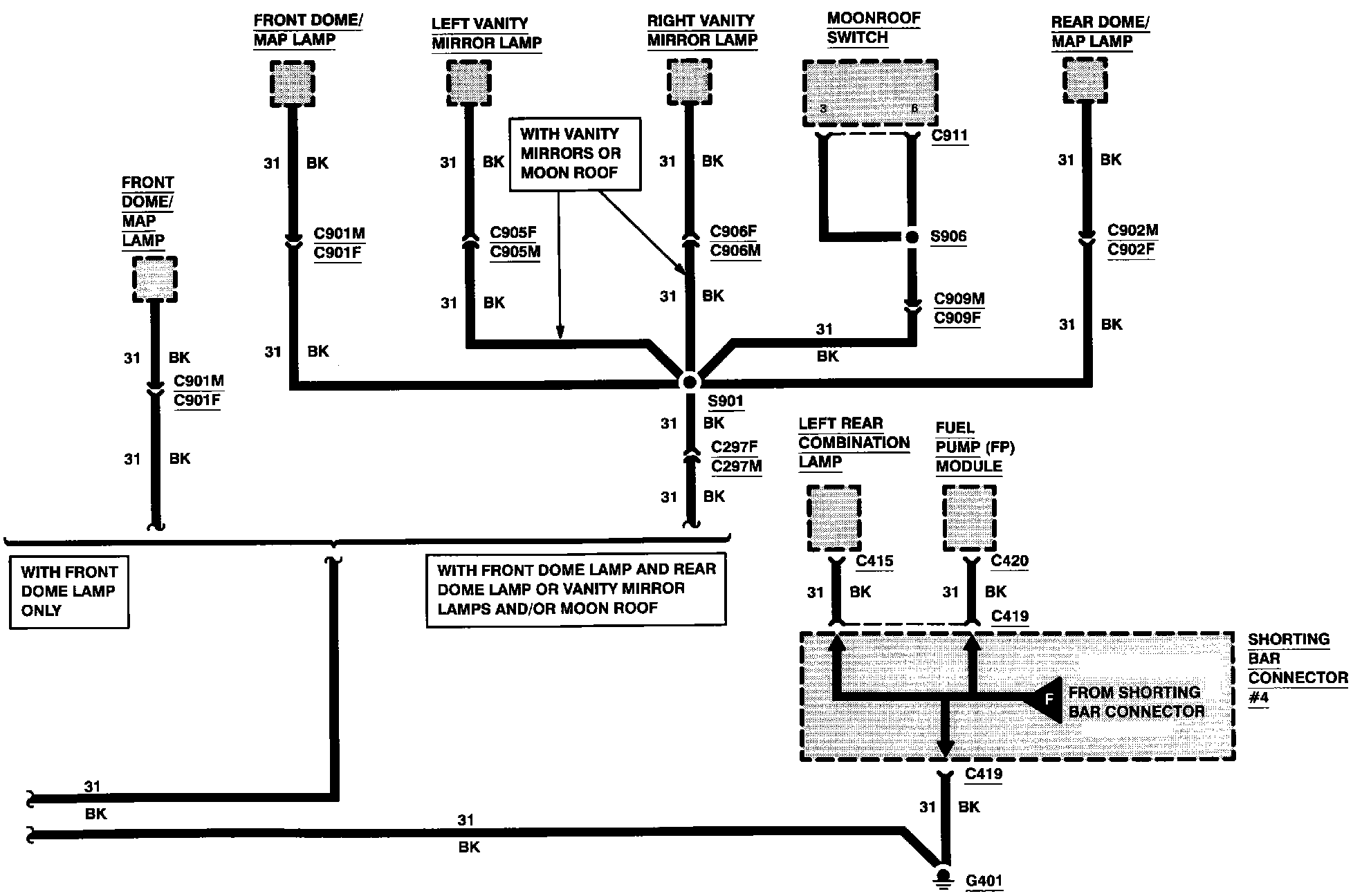

Grounds (G401):




Grounds (G401):
