Headlamp Switch: Testing and Inspection
Main Light Switch - Component Testing Procedure:

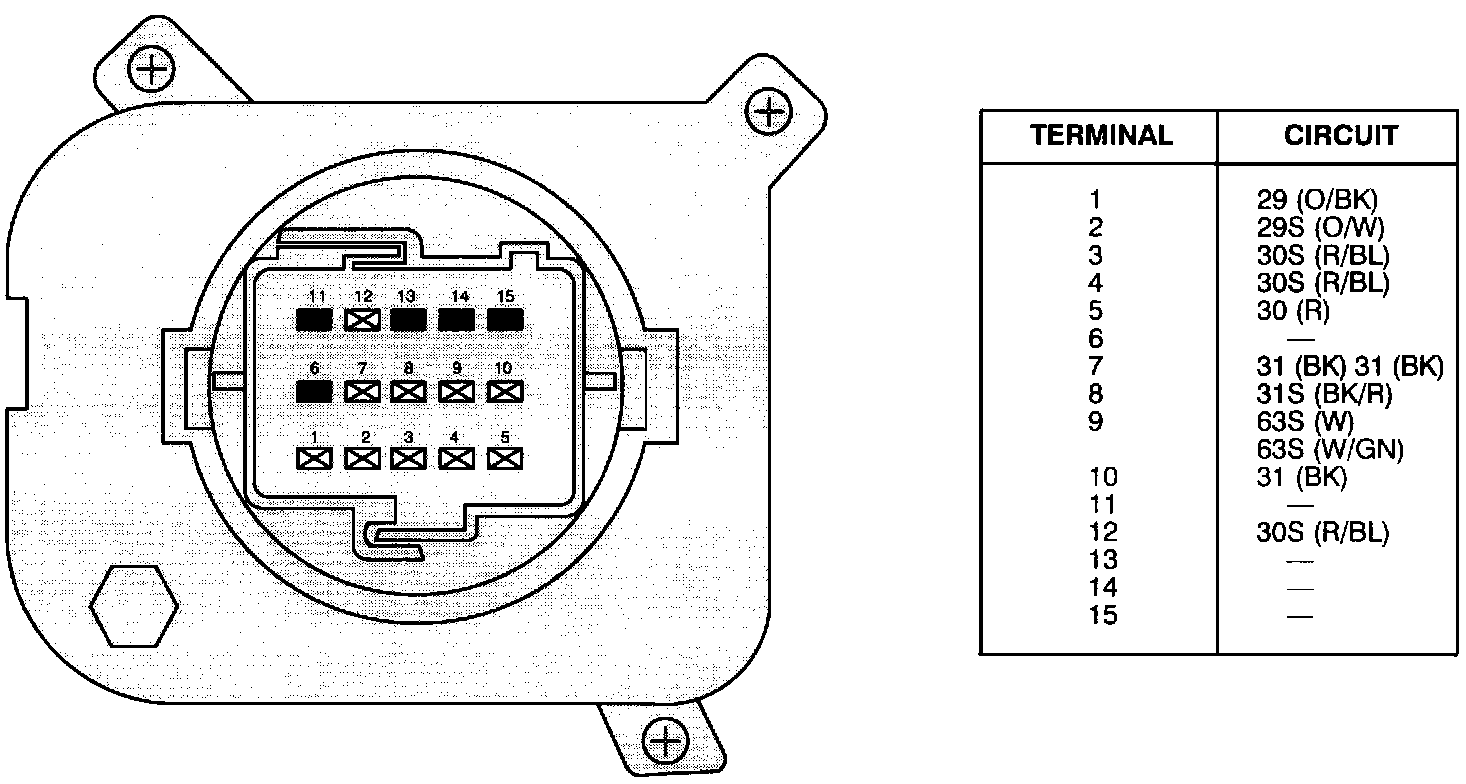

Main Light Switch - Terminal Locations:

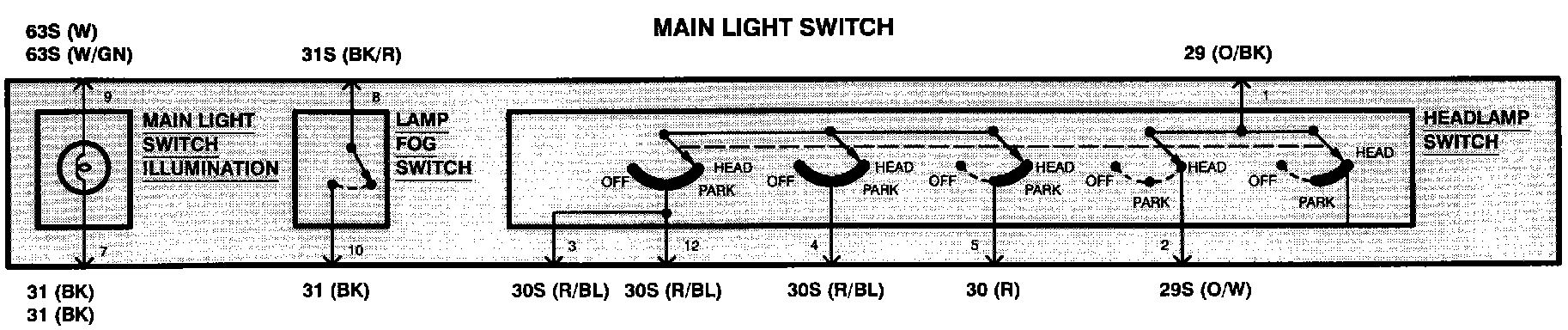

Main Light Switch - Schematic:
