Rear

1. Remove rear seat cushion.
2. Disconnect rear sensor connector. Feed connector through hole in floorpan.
3. Raise and support vehicle.
4. Remove sensor wiring from routing brackets.

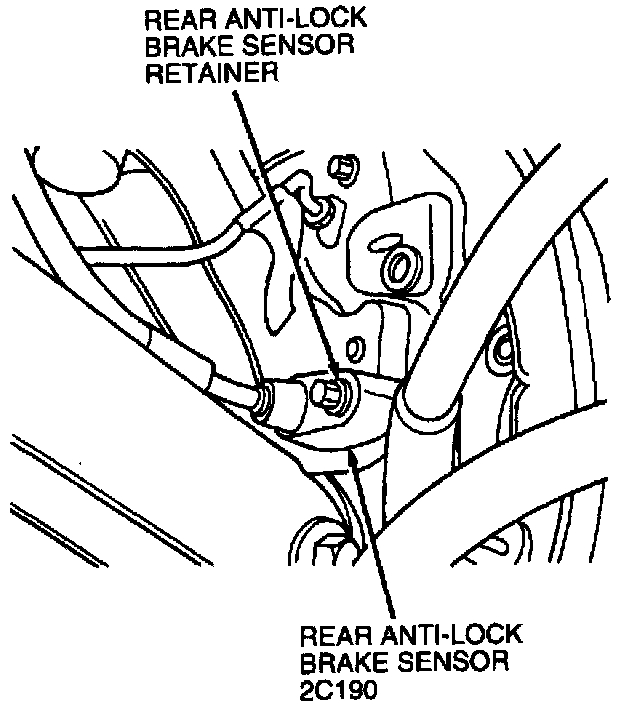

Fig. 47 Rear ABS Sensor Removal:

5. Remove the sensor.
6. Reverse procedure to install.
