Front

1. Raise and support vehicle.

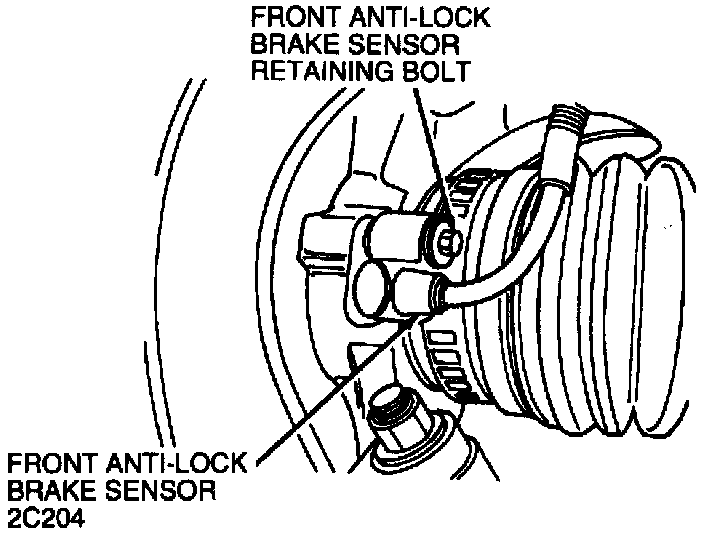

Fig. 46 Front ABS Sensor Removal:

2. Remove front sensor retaining bolt and front sensor from the knuckle.
3. Remove front fender splash shield.
4. Disconnect sensor electrical connector.
5. Remove sensor.
6. Reverse procedure to install.
