Home >> Mercury >> 1996 >> Mystique V6-153 2.5L DOHC >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Manufacturer Code Charts >> DTC 34: Driver Side Air Bag Circuit Low Resistance or Shorted >> 34-3 to 34-4

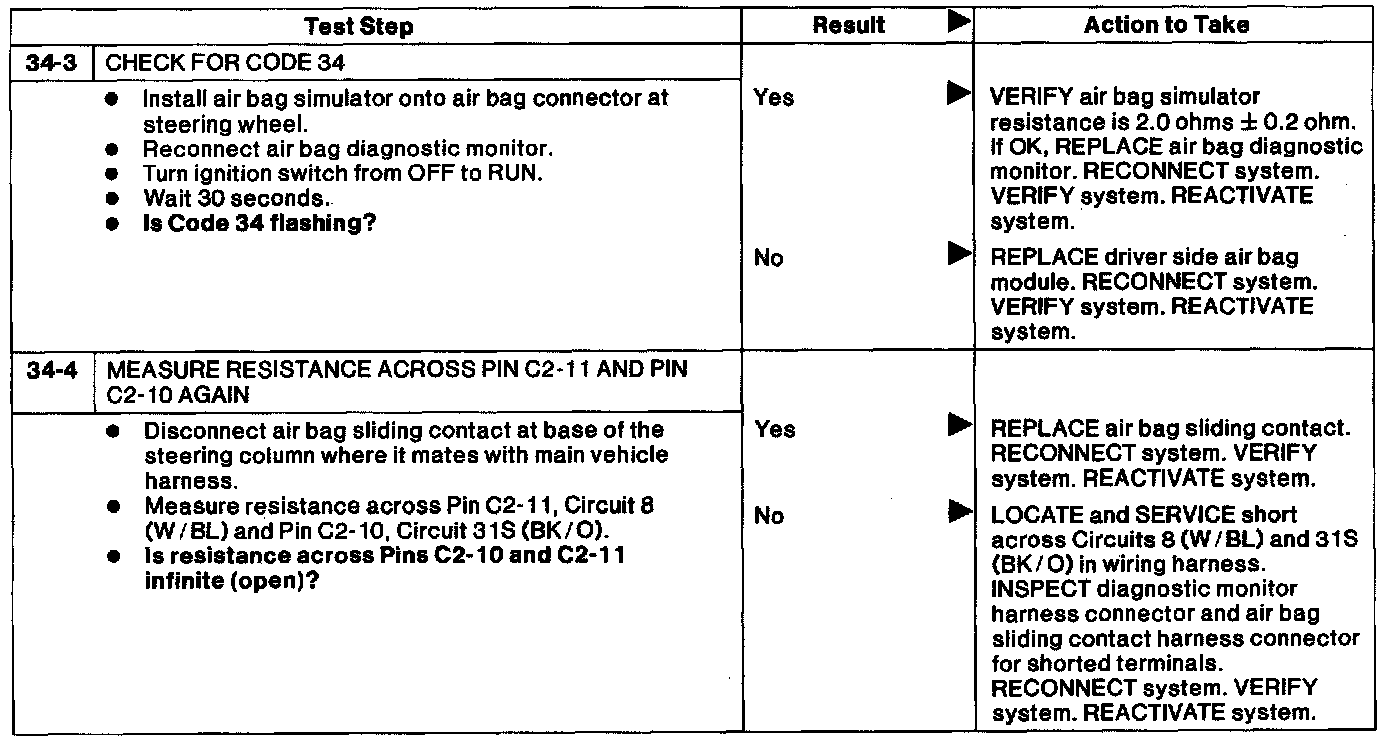

34-3 to 34-4
