Clockspring Assembly / Spiral Cable: Service and Repair

REMOVAL and INSTALLATION
1. Make sure that vehicle's front wheels are in the straight-ahead position.

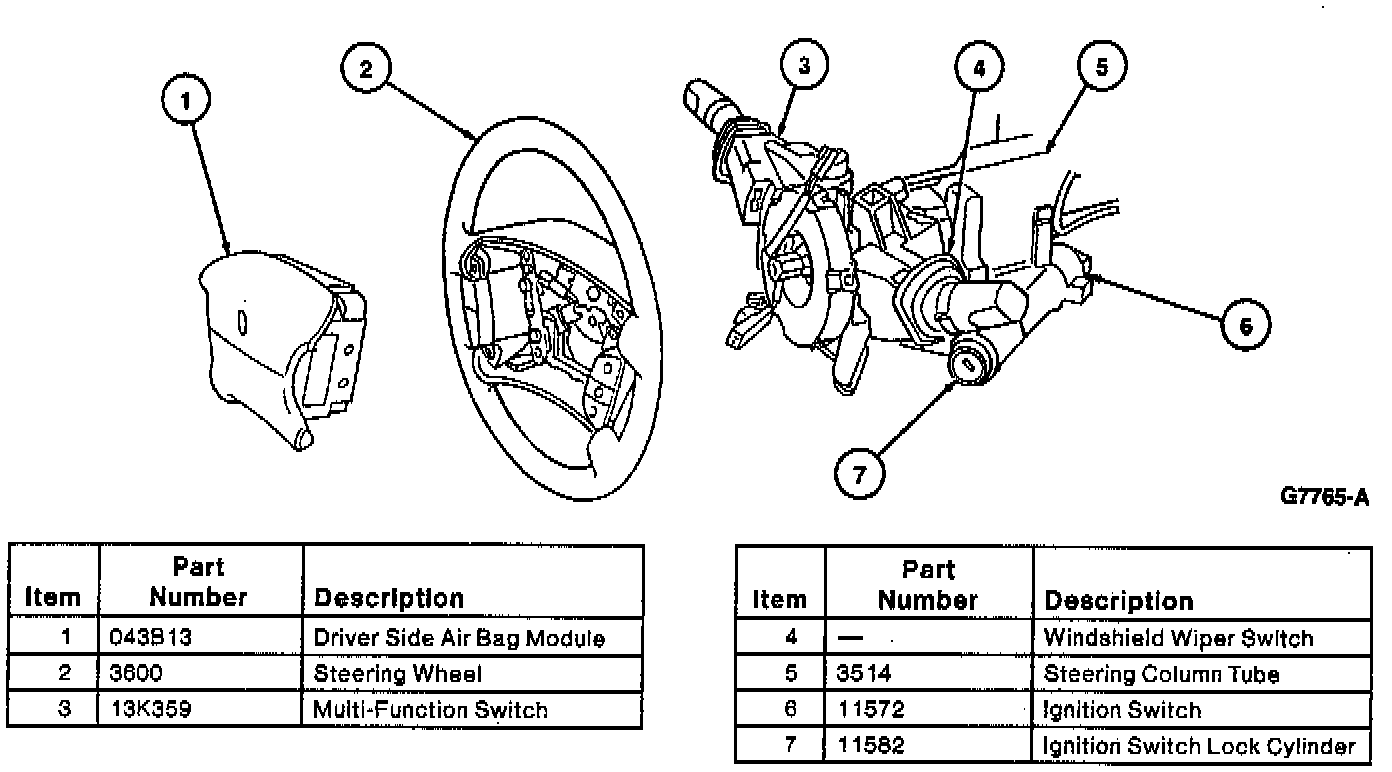

2. Remove steering wheel.

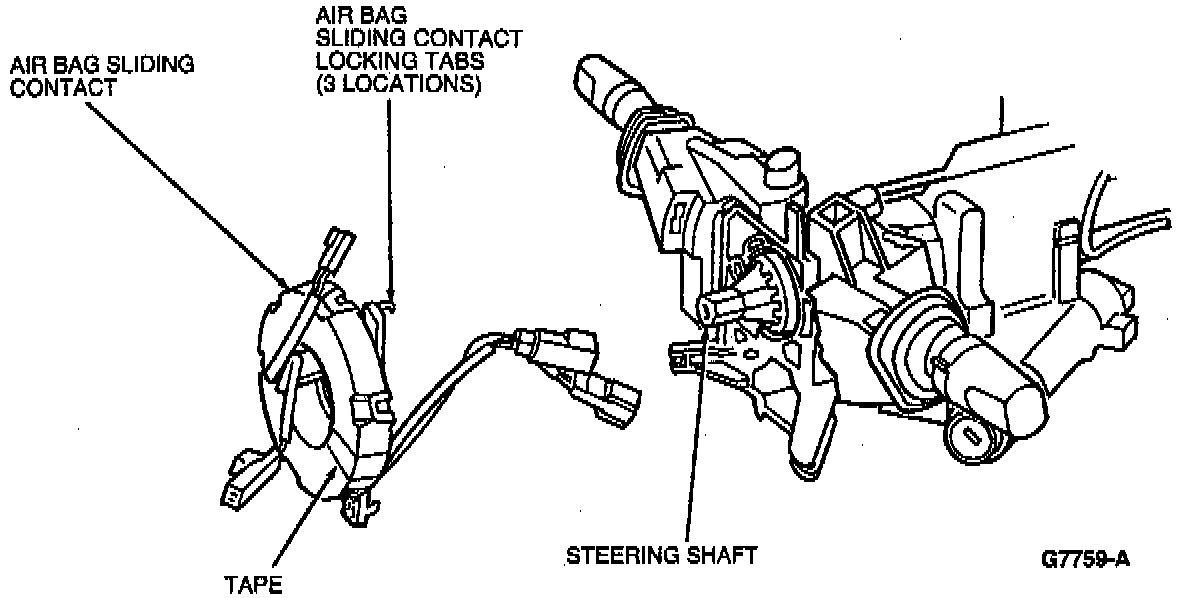

3. Remove steering column shrouds.
4. Disconnect air bag sliding contact wiring harness.






5. Apply tape across air bag sliding contact assembly stator and rotor to prevent accidental rotation.
6. Release three air bag sliding contact locking tabs and lift air bag sliding contact from steering column.
7. Reverse procedure to install.
