Ignition Relay: Locations

Behind Instrument Panel View:

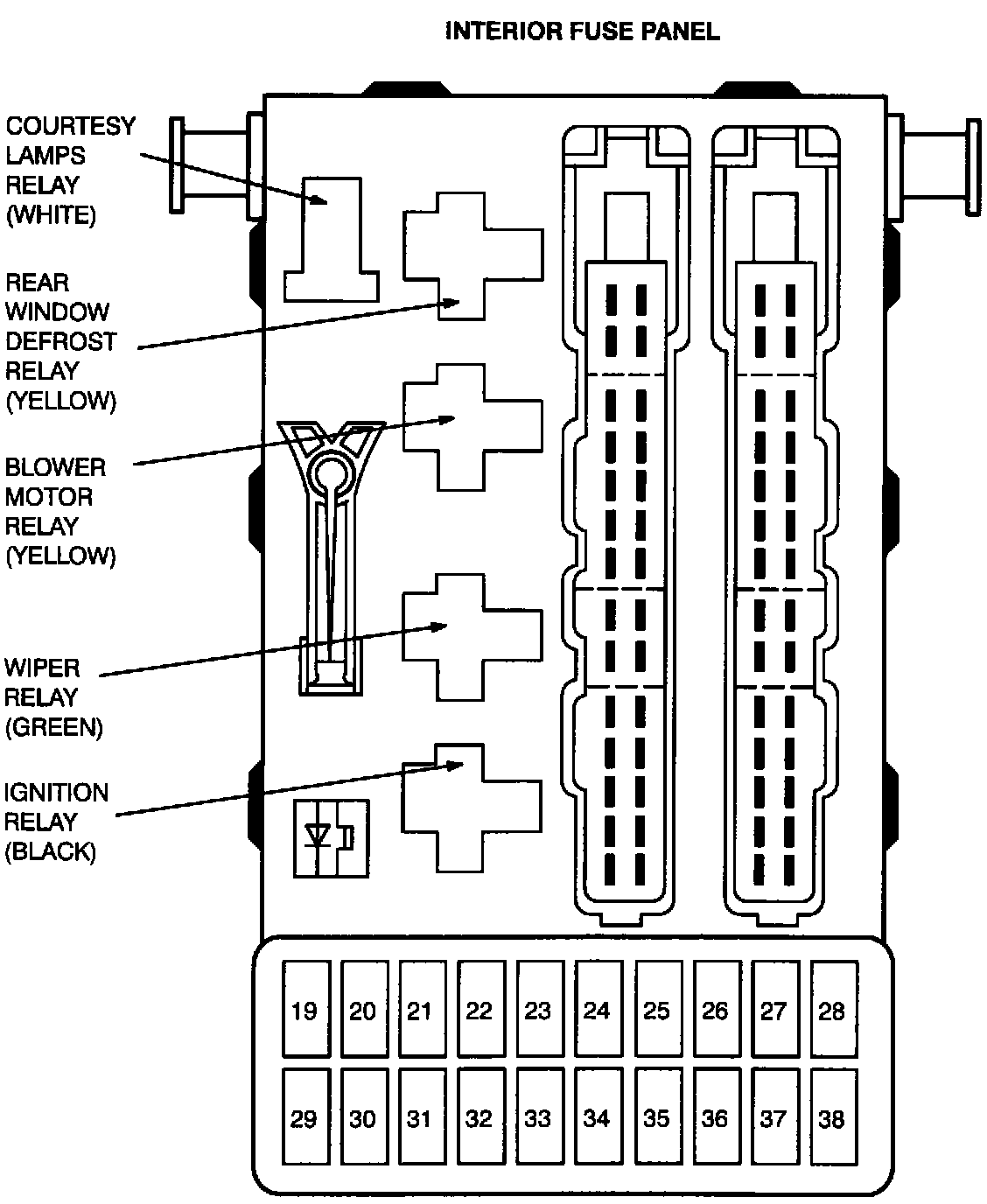

Interior Fuse Panel (Part 1 Of 2):





The Ignition Relay is located under the LH side of the instrument panel, on the interior fuse panel.
