Home >> Mercury >> 1996 >> Mystique V6-153 2.5L DOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Vacuum Schematics

Vacuum Schematics

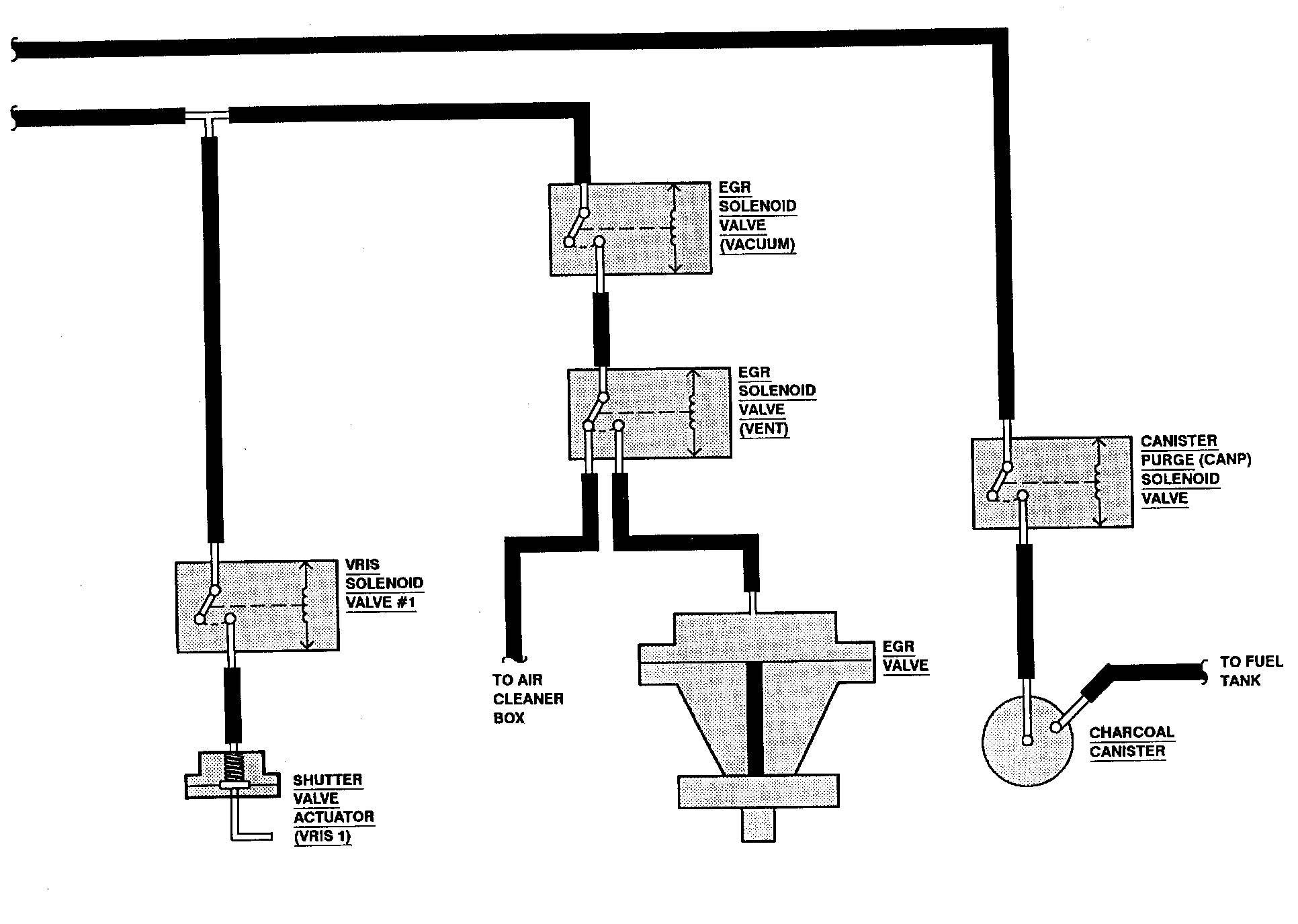

Part 1 Of 1:

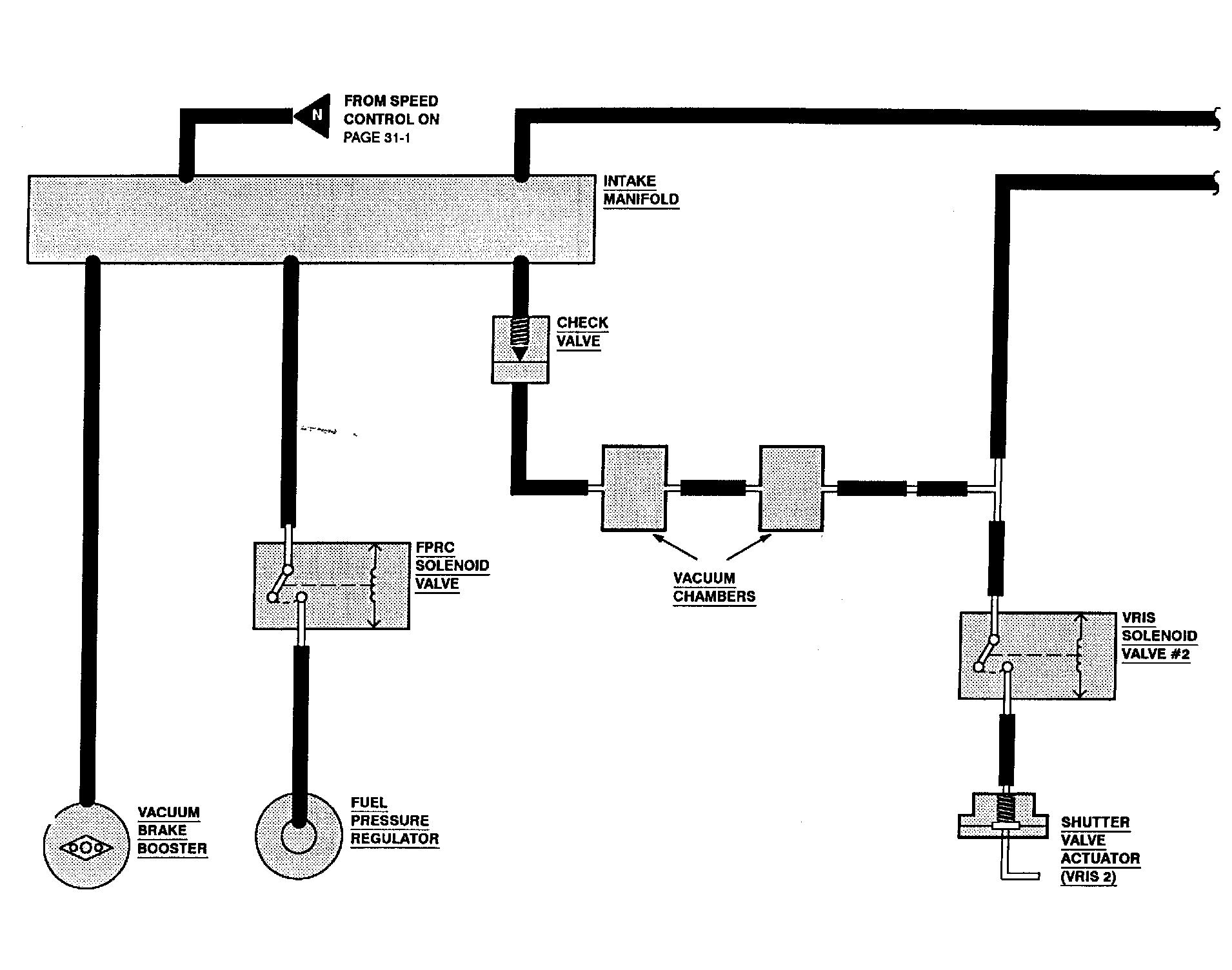

Part 2 Of 2:
