Attachment II

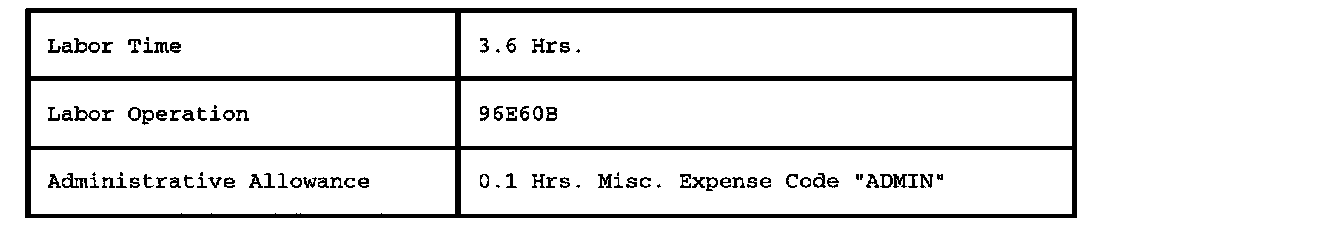

Labor Allowances
Replace Both Catalyst/Exhaust Manifold Assemblies on 1995 and 1996 Models and the Exhaust System "Y"-Pipe Assembly on 1995 Models ("Y"-Pipe is Not Replaced on 1996 Models), Inspect and, It Necessary, Replace the Three-Way (Underbody) Catalyst.

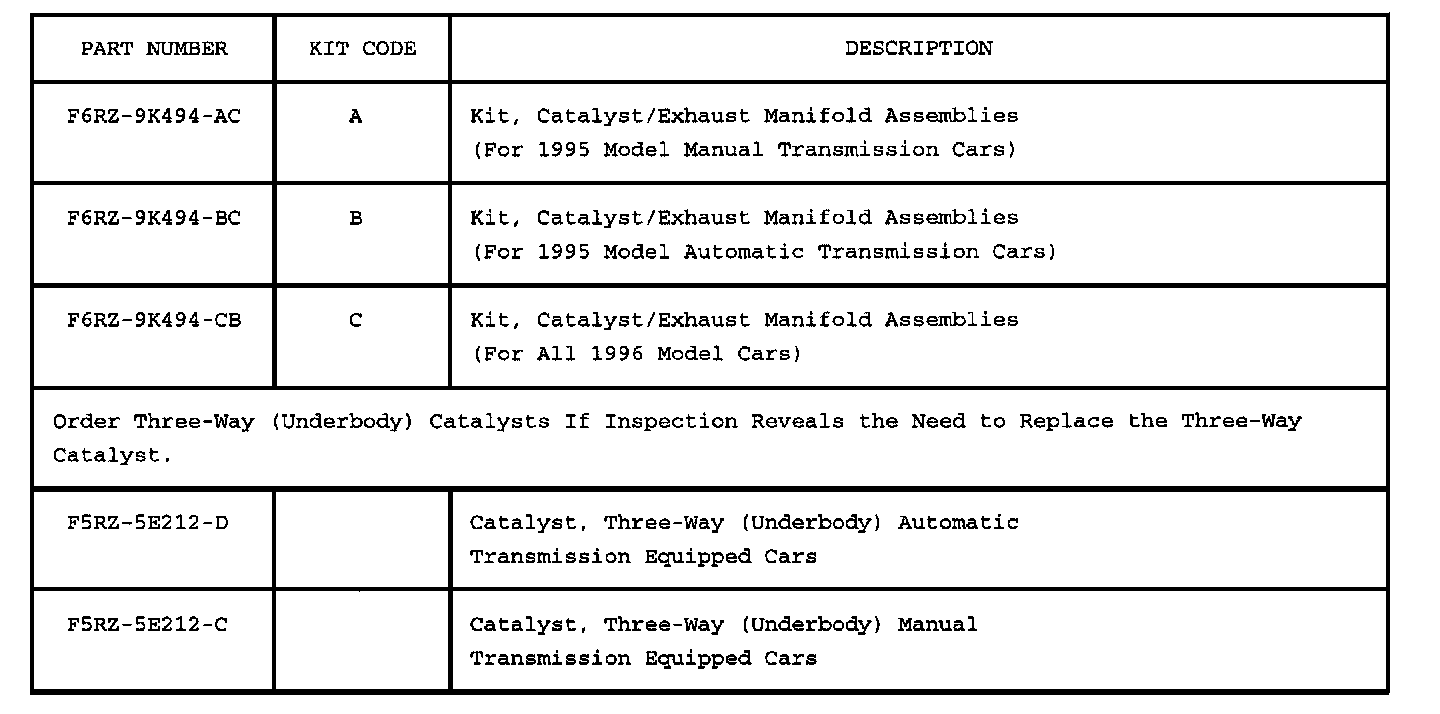

Parts Requirements
This recall is being administered using the "Low Volume Recall" procedures.





Removed Parts Return
Hold the removed catalysts until the claim is paid and the Parts Department receives WPRC "parts disposition instructions" on your daily Parts Advice Register (Overnight Messages). Direct questions on warranty parts returns to the WPRC at 1-800-416-9772.

For latest prices, check or call your:

- Order Processing Center

- DOES II

- Updated Price Book

Excess Stock Return
Excess stock returned for credit must have been purchased from Ford Customer Service Division in accordance with Policy Procedure Bulletin 4000.
