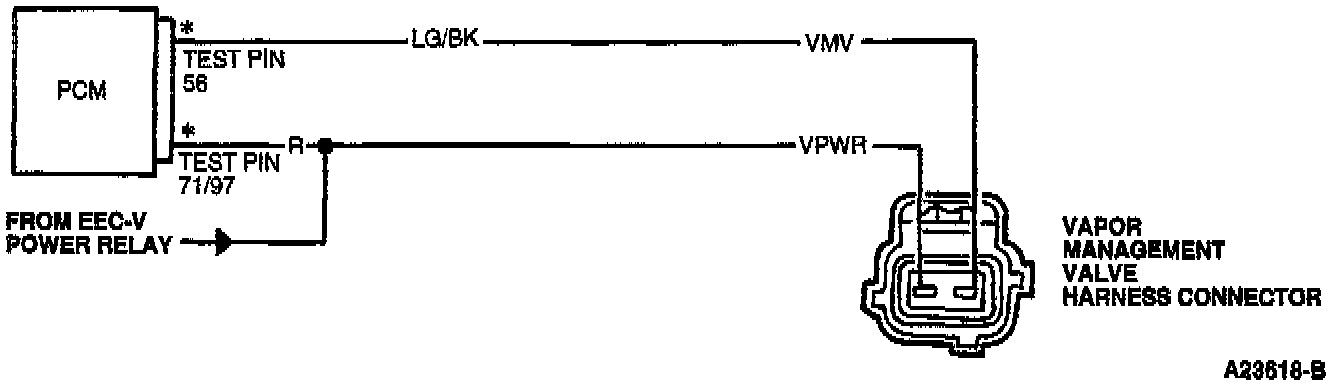

Pinpoint Test Schematics

Contour/Mystique, Continental, Mark VII, 5.0L Explorer, E-Series, Bronco, F-Series:
