HU - Intake Air System
>>

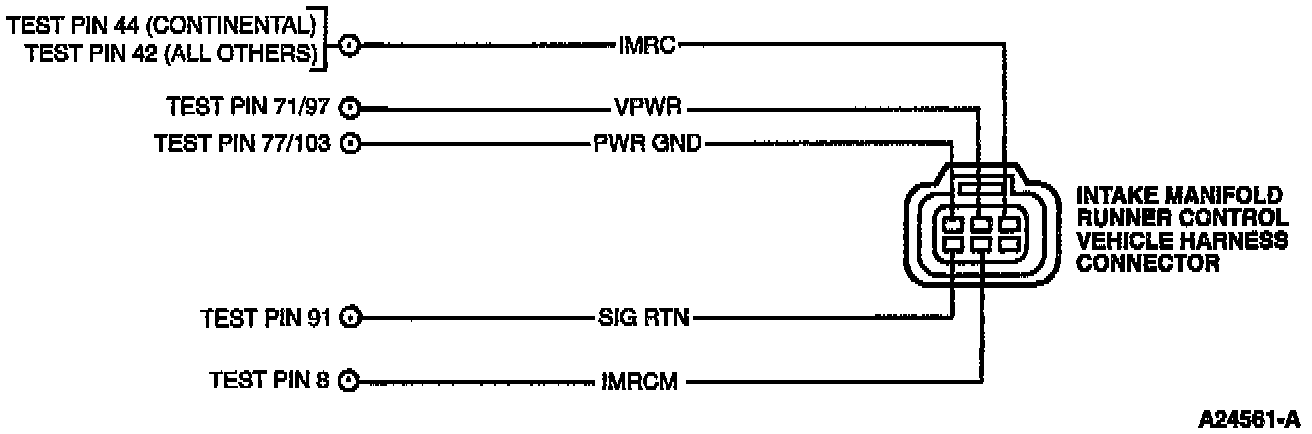

Pinpoint Test Schematics
Pinpoint Test Schematics
2.5L Contour/Mystique, 3.0L-4V Taurus/Sable, 3.4L Taurus SHO, 4.6L-4V Mustang, Continental:
