Connector Views

Contour/Mystique:

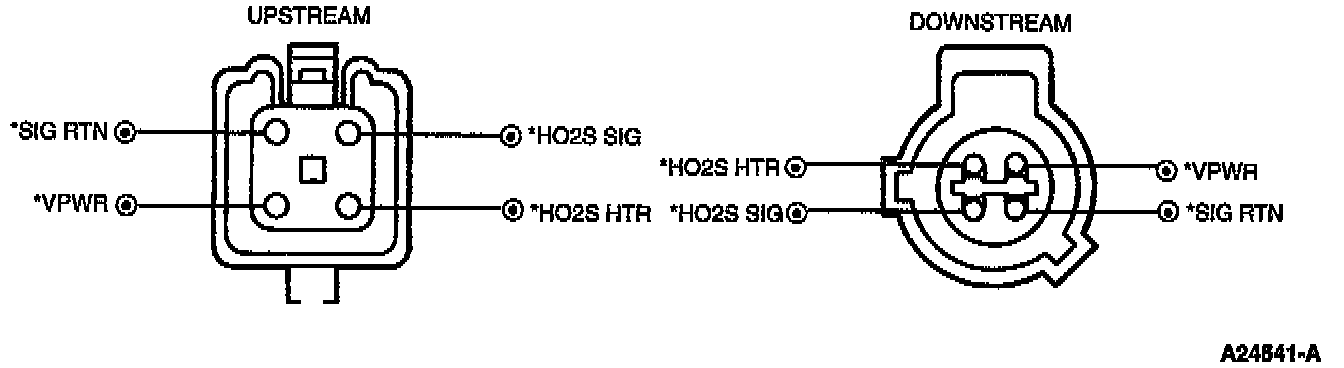

HO2S Connector Test Pin Numbers:

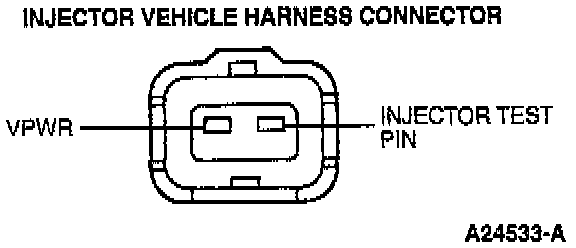

Injector Vehicle Harness Connector:

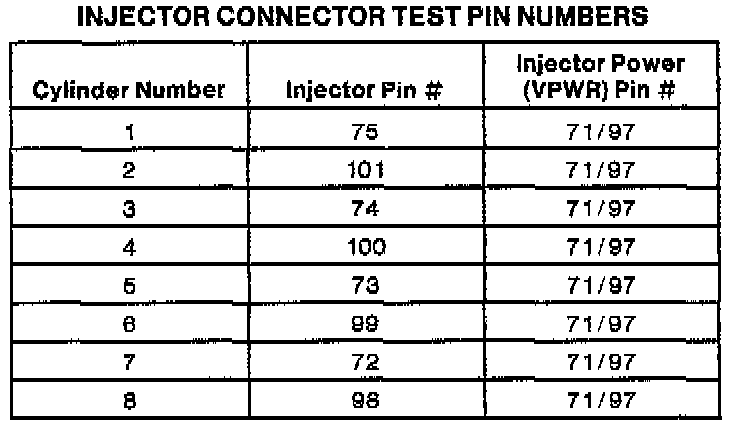

Injector Connector Test Pin Numbers:
