Instrument Cluster - Replacement

1. Disconnect the battery ground cable.
2. Remove the instrument panel finish panel as follows:

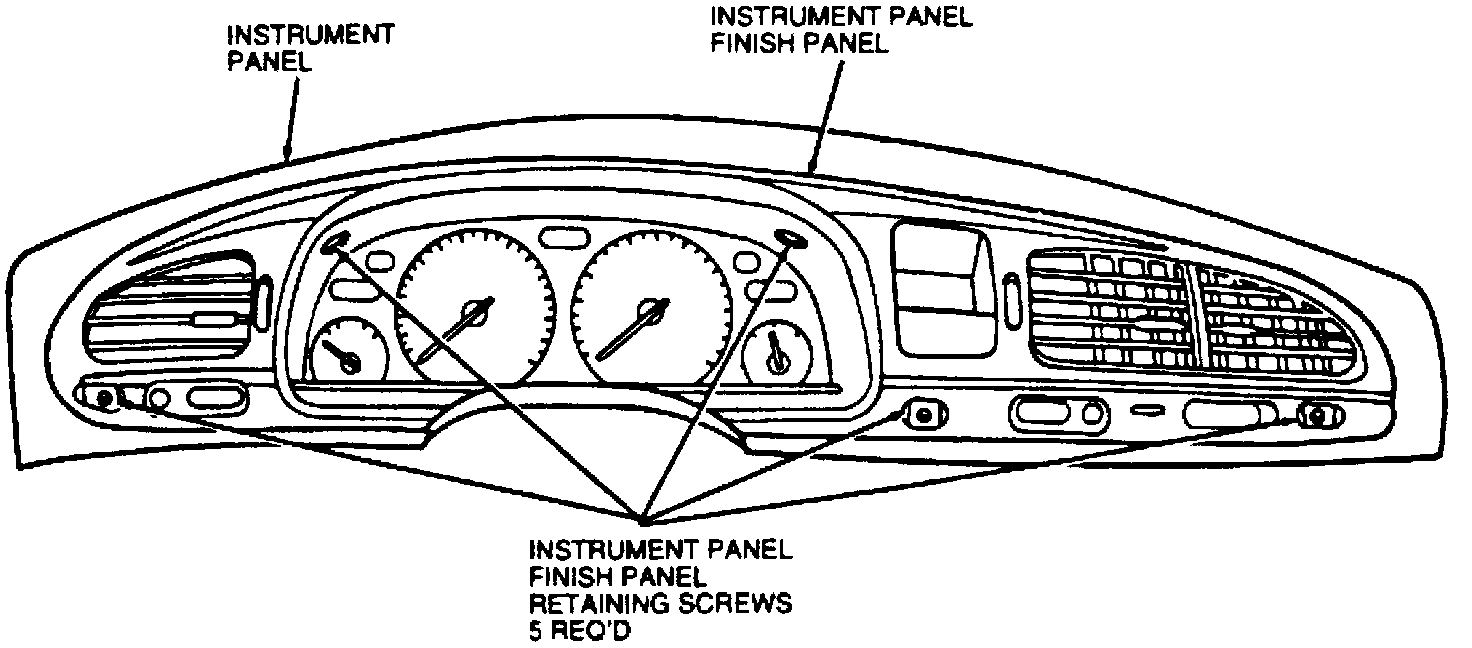

Instrument panel finish panel removal:

a. Remove the three instrument panel finish panel screw covers, then the screws.
b. Pull the finish panel away from the instrument panel, then disconnect the wiring harness connectors from indicator lamps, heated back window switch and light and traction assist switch.
c. Remove the cluster instrument panel finish panel.

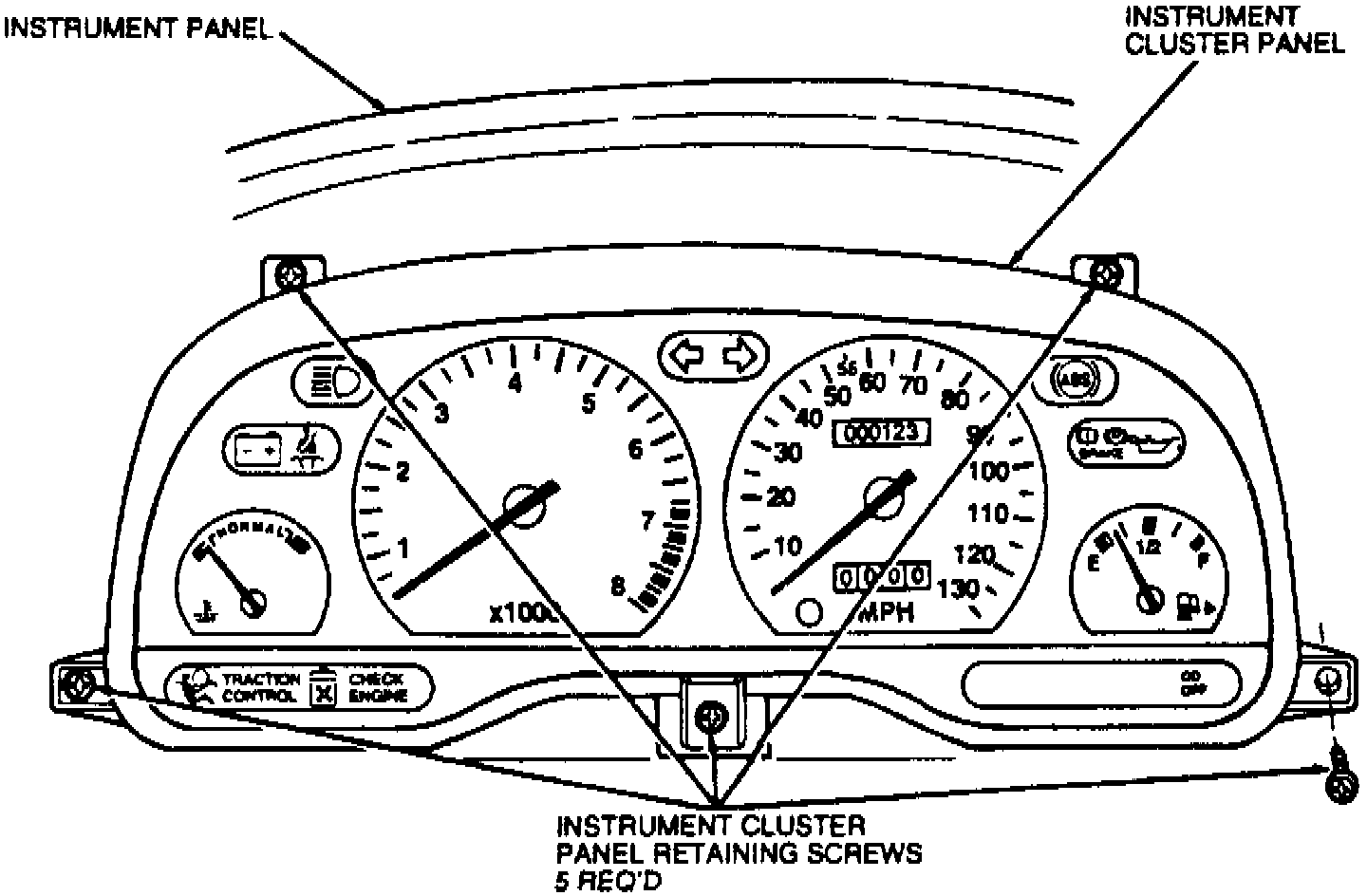

Instrument cluster removal:

3. Remove the instrument cluster panel screws.
4. Pull the instrument cluster away from the instrument panel, then disconnect the two cluster printed circuit connectors from the instrument cluster back plate.
5. Reverse the procedure to install.
