Home >> Mercury >> 1996 >> Mystique V6-153 2.5L DOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Brake Warning Indicator >> Testing and Inspection

Brake Warning Indicator: Testing and Inspection

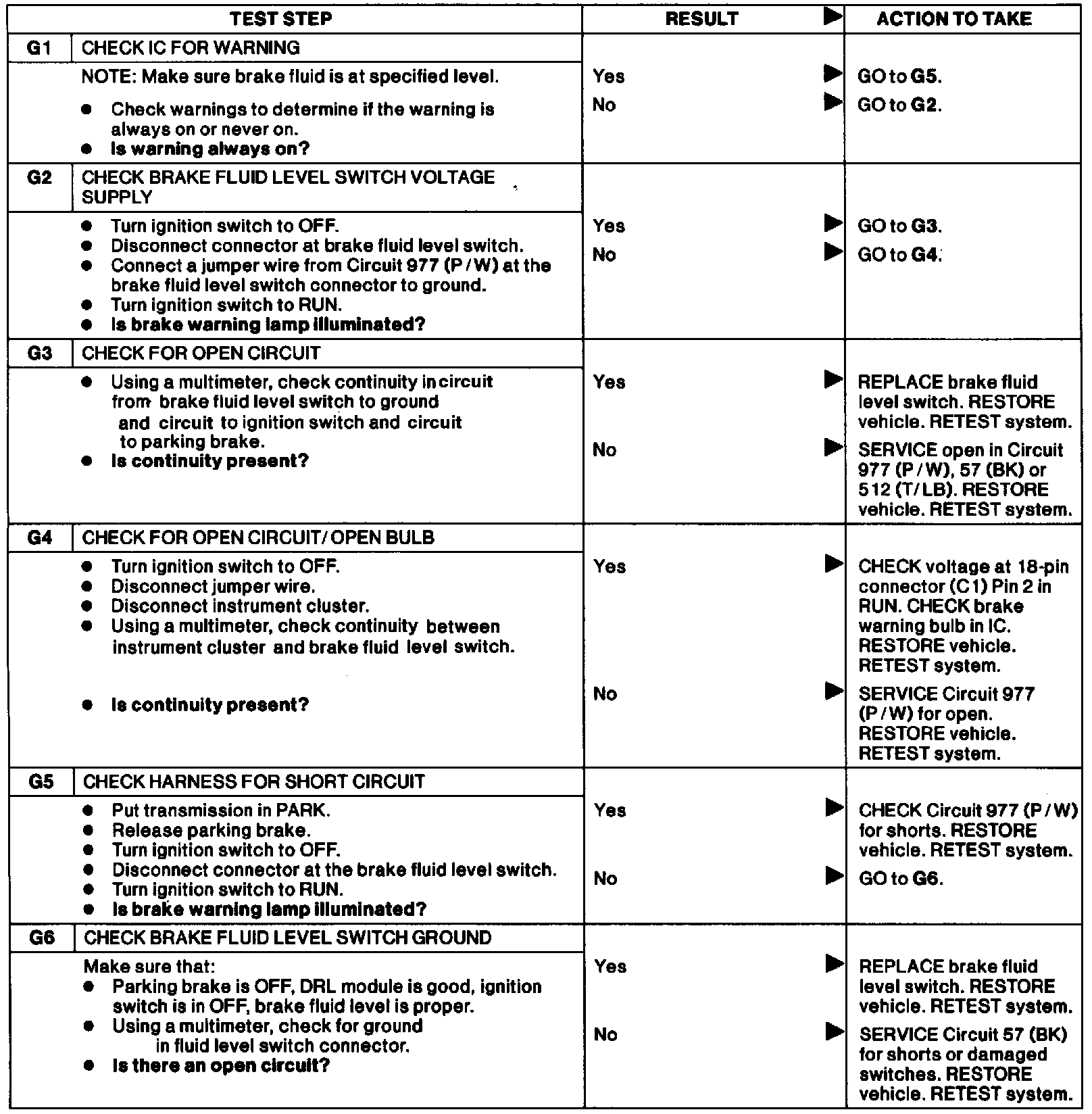

Test G: Brake Warning Lamp Never/Always ON:





Test G1-G6
