Climate Control Assembly

REMOVAL
1. Disconnect battery ground cable.

CAUTION: Do not use excessive force when installing removing tool. This will damage retaining clips, making radio chassis or digital audio compact disc player removal difficult.

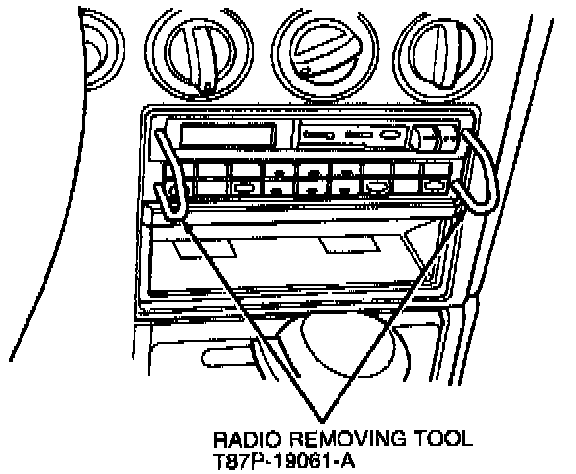

2. Install Radio Removing Tool T87P-19061-A into radio face plate or digital audio compact disc player face plate. Push tool in approximately 25.4 mm (1 inch) to release retaining clips.





3. Apply a slight spreading force on tool and pull radio chassis or digital audio compact disc player from instrument panel.





4. Disconnect the connectors and remove the radio chassis and digital audio compact disc player.

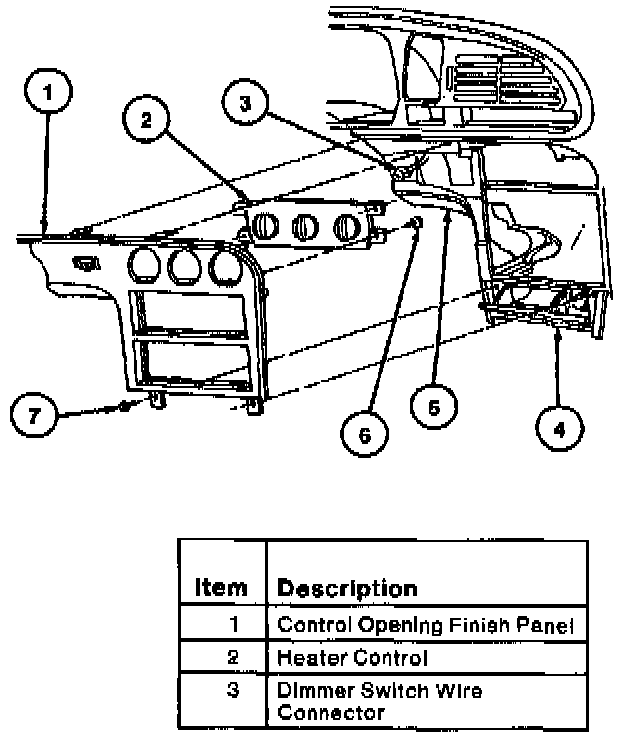

5. Open ash receptacle and remove two screws retaining control opening finish panel to instrument panel. Snap finish panel away from instrument panel.
6. Disconnect light switch rheostat resistor wiring connector.

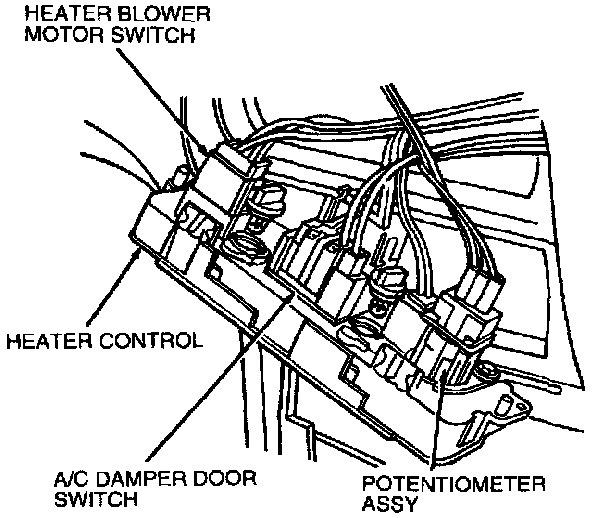

7. Disconnect wire connectors from the heater control.





8. Disconnect vacuum hose harness from heater control.
9. Remove four screws and heater control from finish panel.

INSTALLATION
1. Position heater control in control opening finish panel and install retaining screws.
2. Connect wire connector(s) and vacuum hose harness to heater control.
3. Connect dash dimmer switch wiring connector.
4. Install control opening finish panel by snapping it into place. Secure finish panel with two screws.

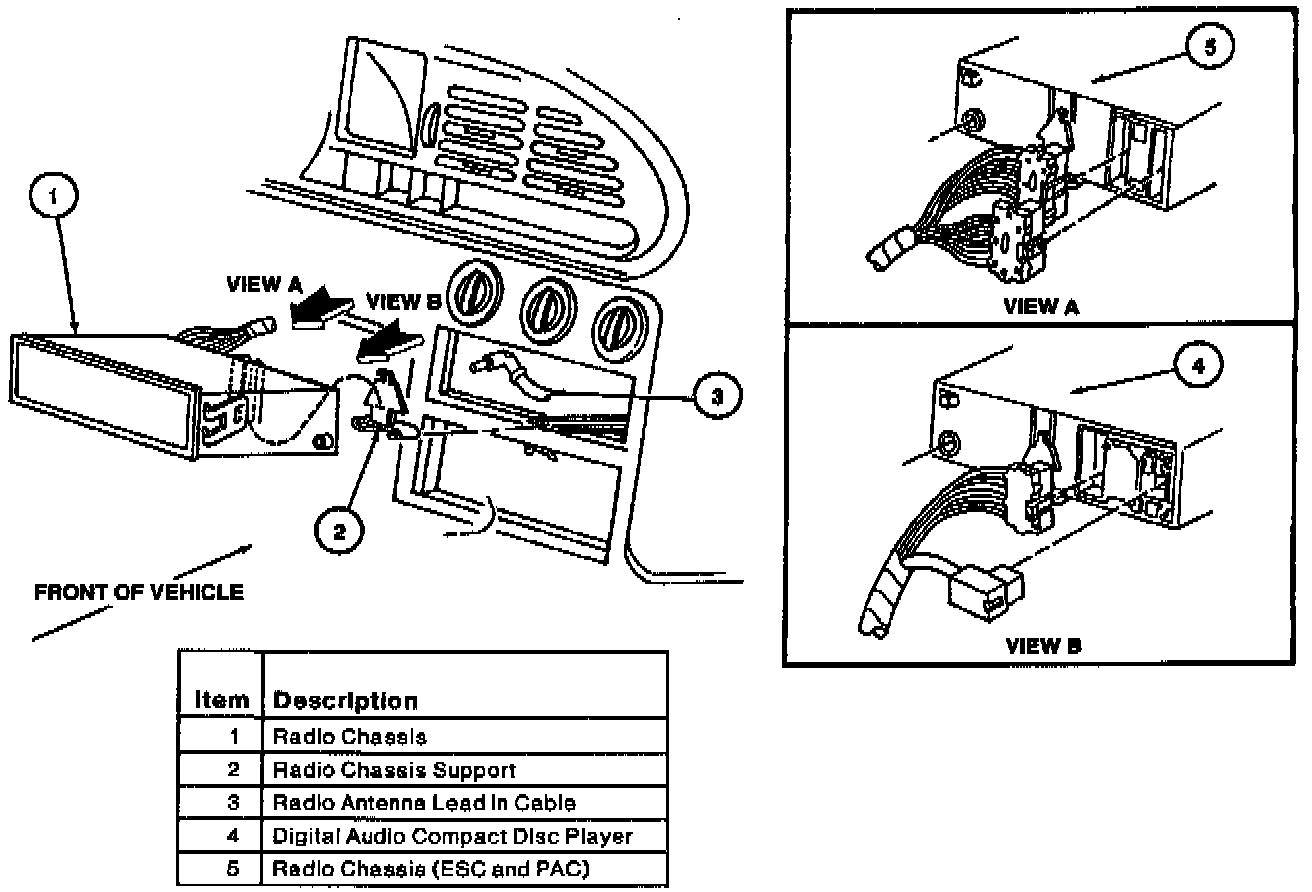

5. Connect wiring connectors and antenna cable to radio chassis.
6. Slide radio chassis into instrument panel, making sure that radio chassis or rear radio chassis support of the digital audio compact disc player is engaged on the upper support rail.
7. Push radio chassis or digital audio compact disc player inward until retaining clips are fully engaged.
8. Connect battery ground cable.
9. Test radio chassis and digital audio compact disc player for operation.
