Blower Motor Resistor: Service and Repair

REMOVAL

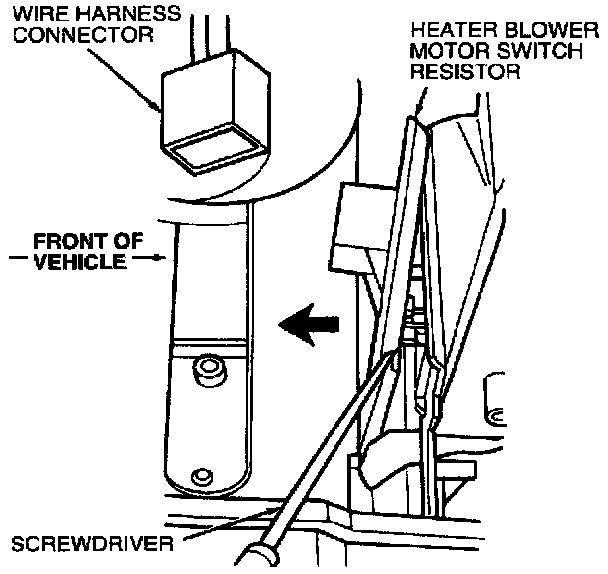

1. Working from inside the vehicle, disengage clips and remove upper footwell trim panel from the passenger side.
2. Disconnect wire harness from heater blower motor switch resistor.







3. Insert screwdriver approximately 5 mm (0.2 inch) under edge of heater blower motor switch resistor to disengage retainer and remove heater blower motor switch resistor.

INSTALLATION
1. Position heater blower motor switch resistor on A/C evaporator housing and snap into place.
2. Connect wiring harness.
3. Install upper footwell trim panel.
4. Check blower motor for proper operation at all speeds.
