Home >> Mercury >> 1996 >> Mystique V6-153 2.5L DOHC >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Lamps and Indicators - Engine >> Oil Pressure Warning Lamp/Indicator >> Testing and Inspection

Oil Pressure Warning Lamp/Indicator: Testing and Inspection

Test H: Low Oil Pressure Warning Lamp Never/Always On.:

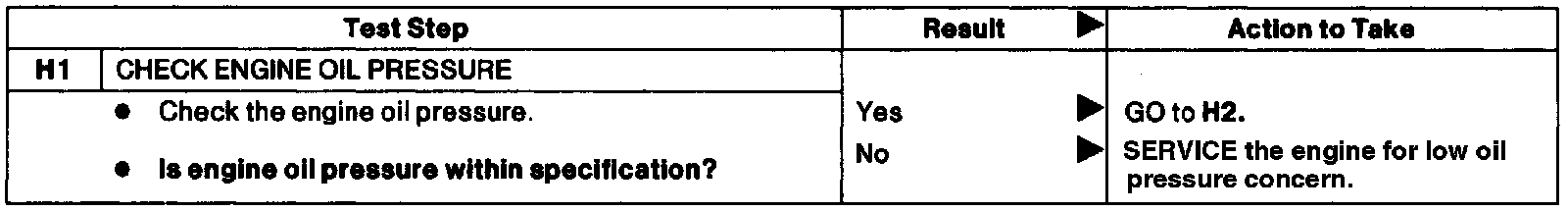

Test H1

Test H: Low Oil Pressure Warning Lamp Never/Always On.:

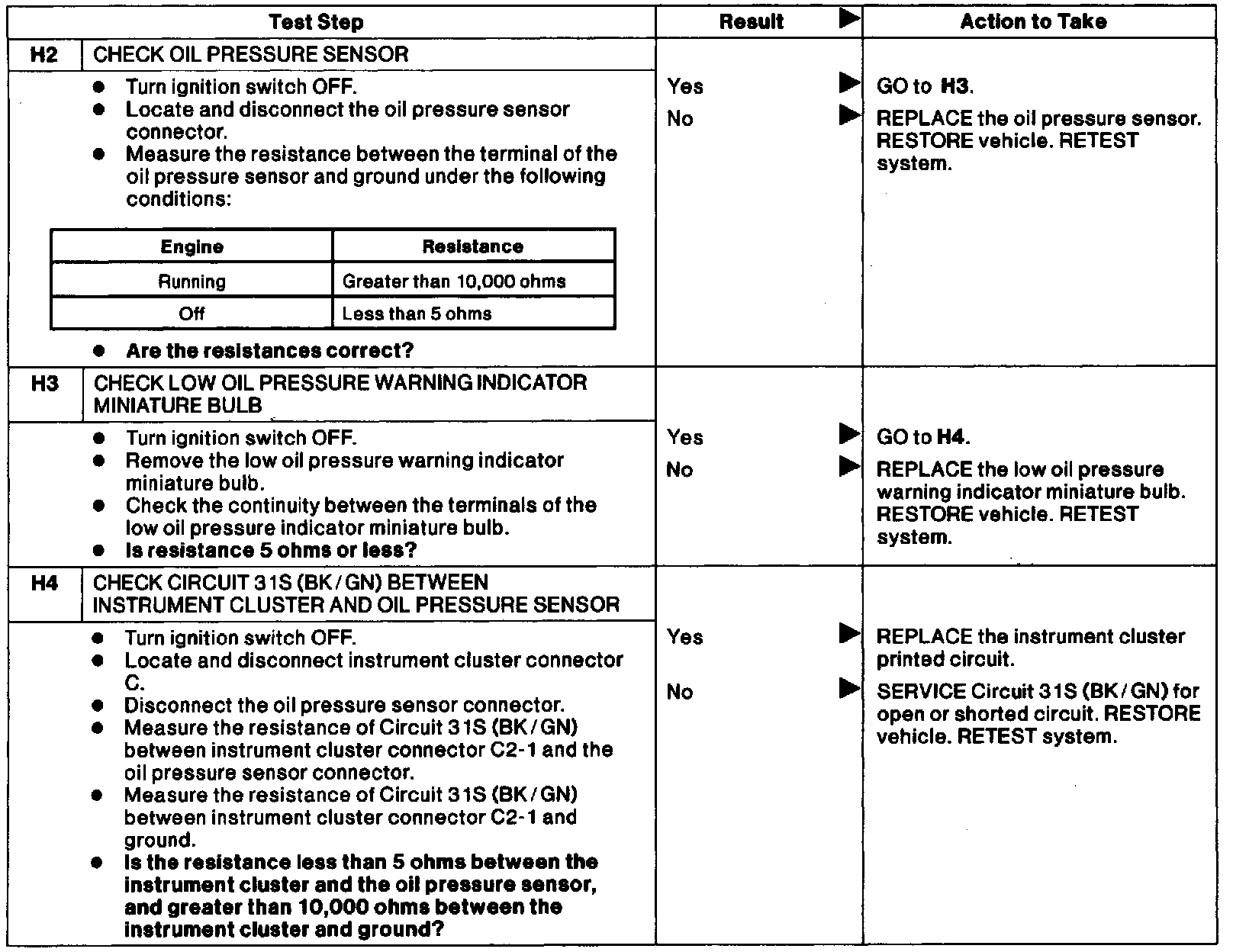

Test H2-H4
