FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1996
>>
Mystique V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio/Stereo
>>
FM/AMP/Compact Disc
FM/AMP/Compact Disc

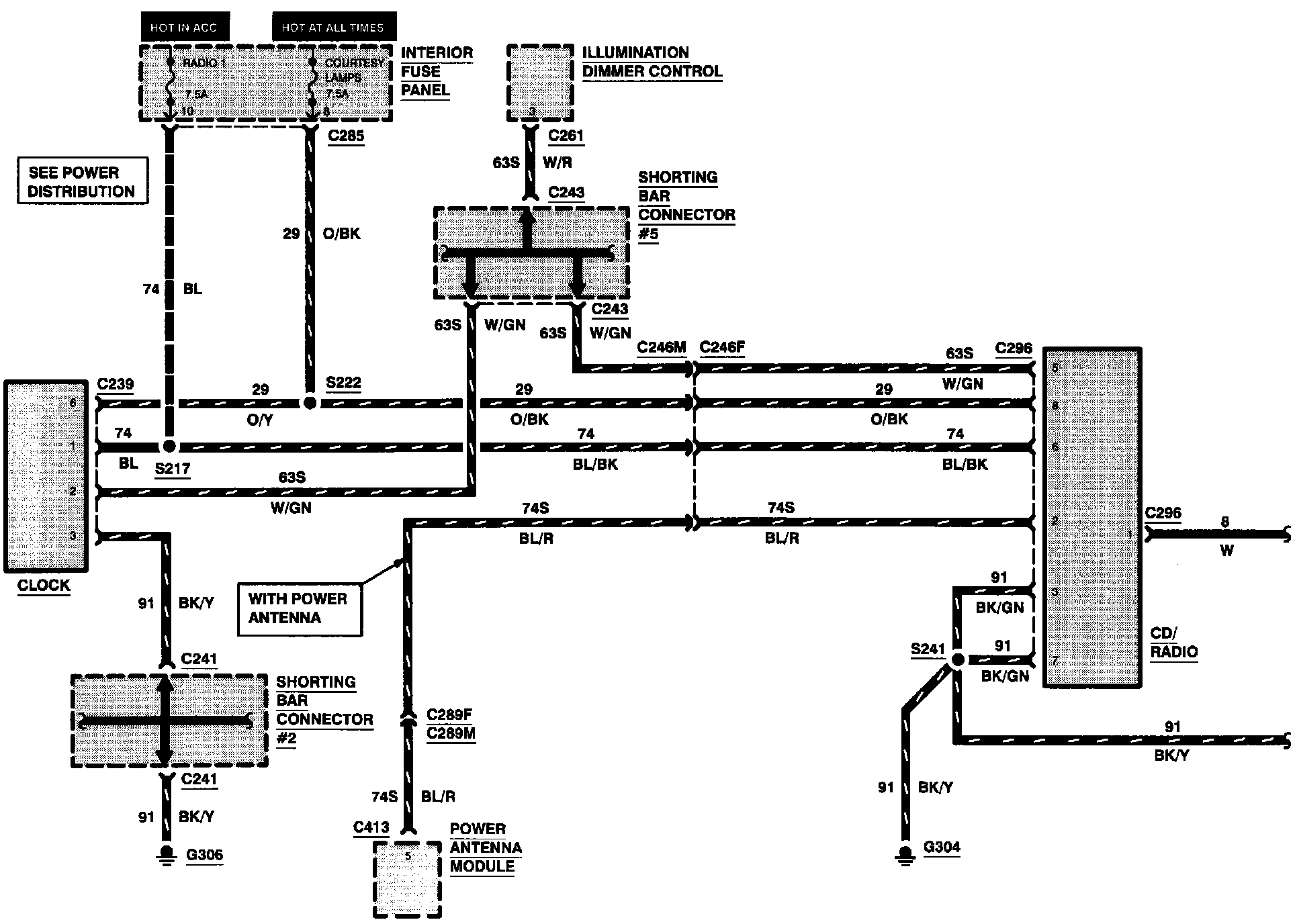

Radio (FM/Amp/Compact Disc) (Part 1 Of 2):

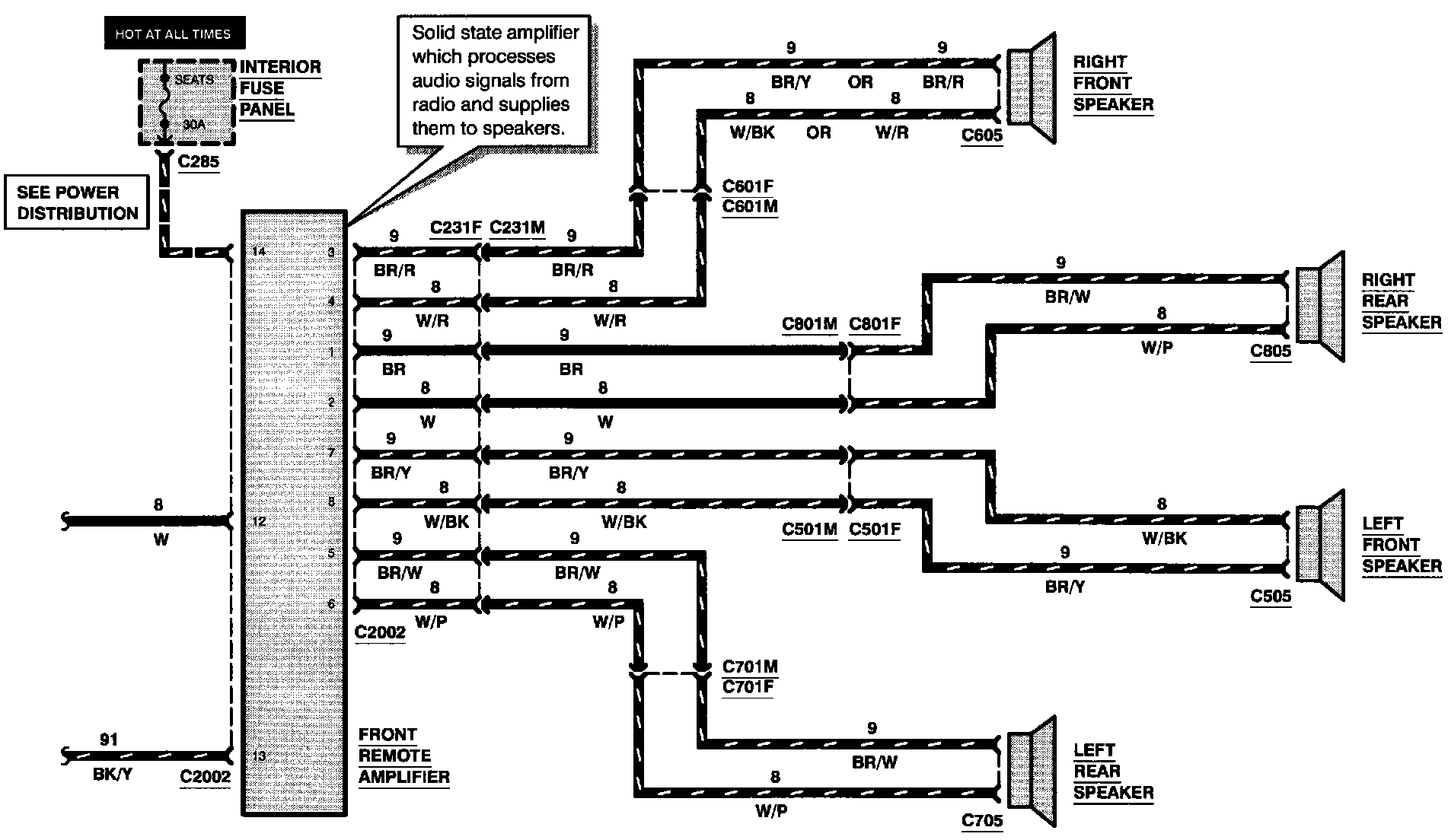

Radio (FM/Amp/Compact Disc) (Part 2 Of 2):
