Fuse SIDE LIGHTS (LEFT)

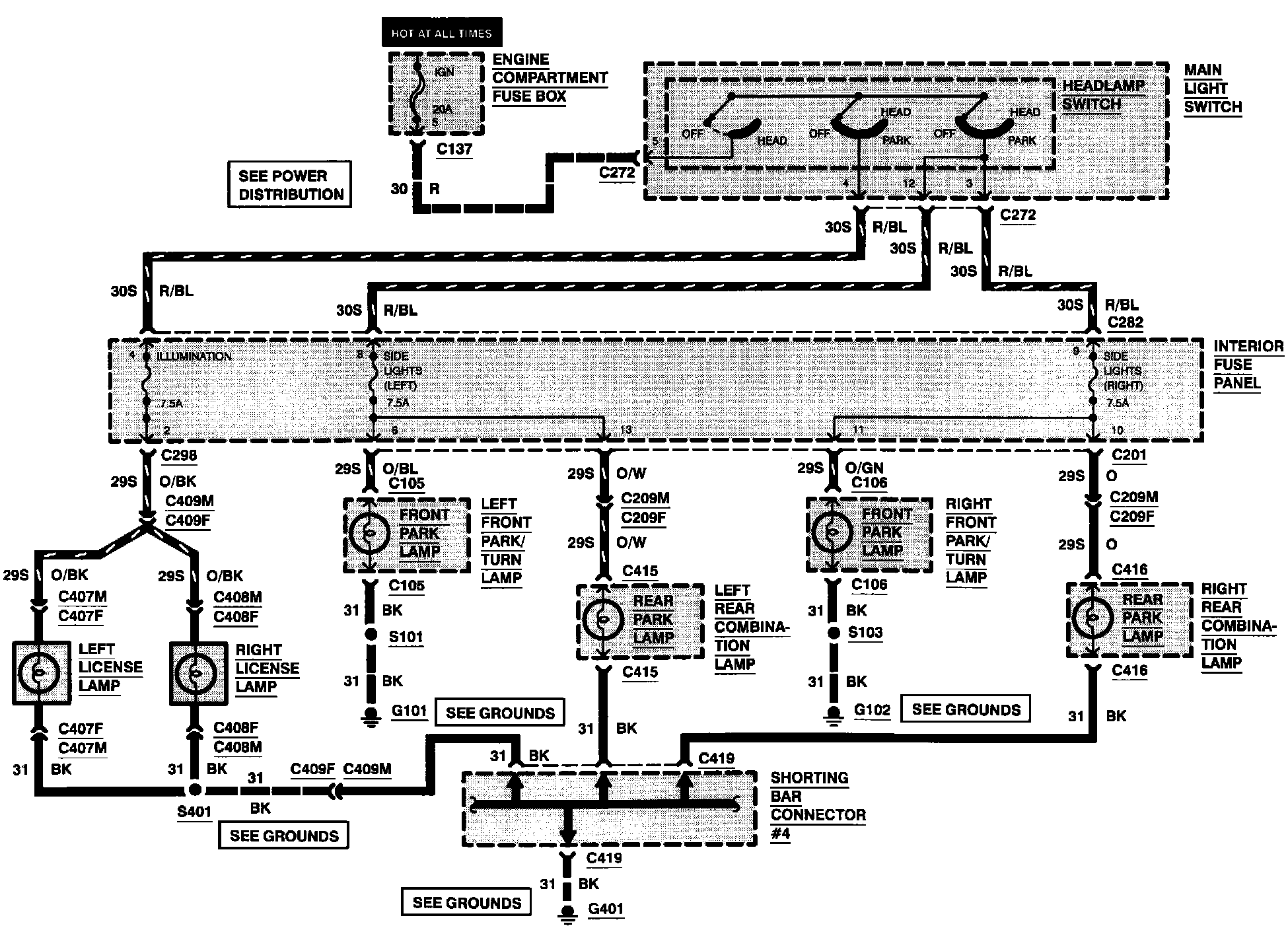

Fuse SIDE LIGHTS (RIGHT) - protects the following circuits:
^ Right front Park/Turn Lamps
^ Right Rear Combination Lamps

Exterior Lamps:




Power Distribution:




Power Distribution:
