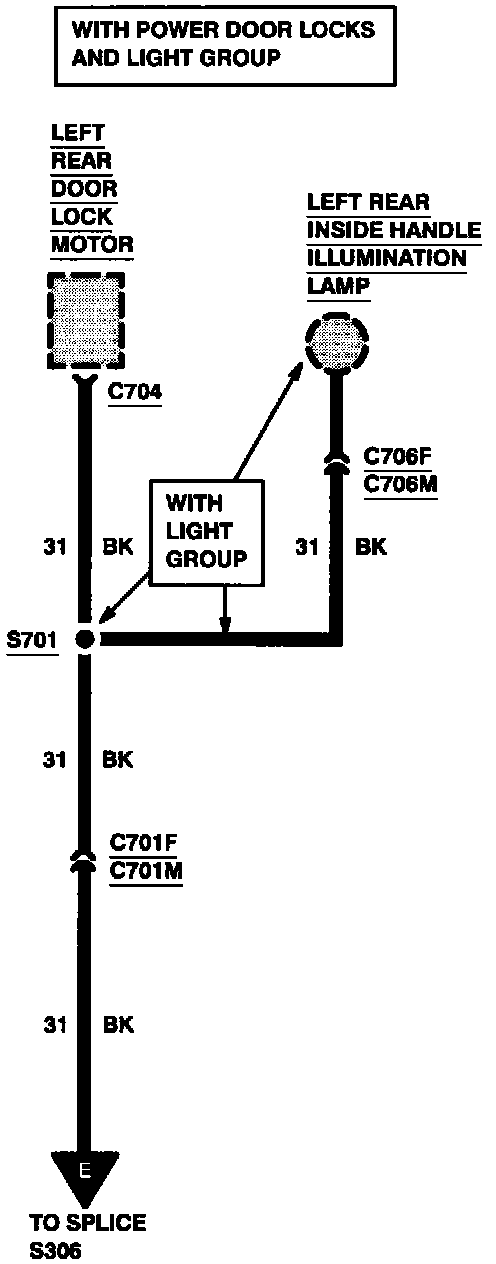

With Power Door Locks and Light Group

Grounds (G303):




Grounds (G303):




Grounds (G303):




Grounds (G401):




Grounds (G401):
