With A/C

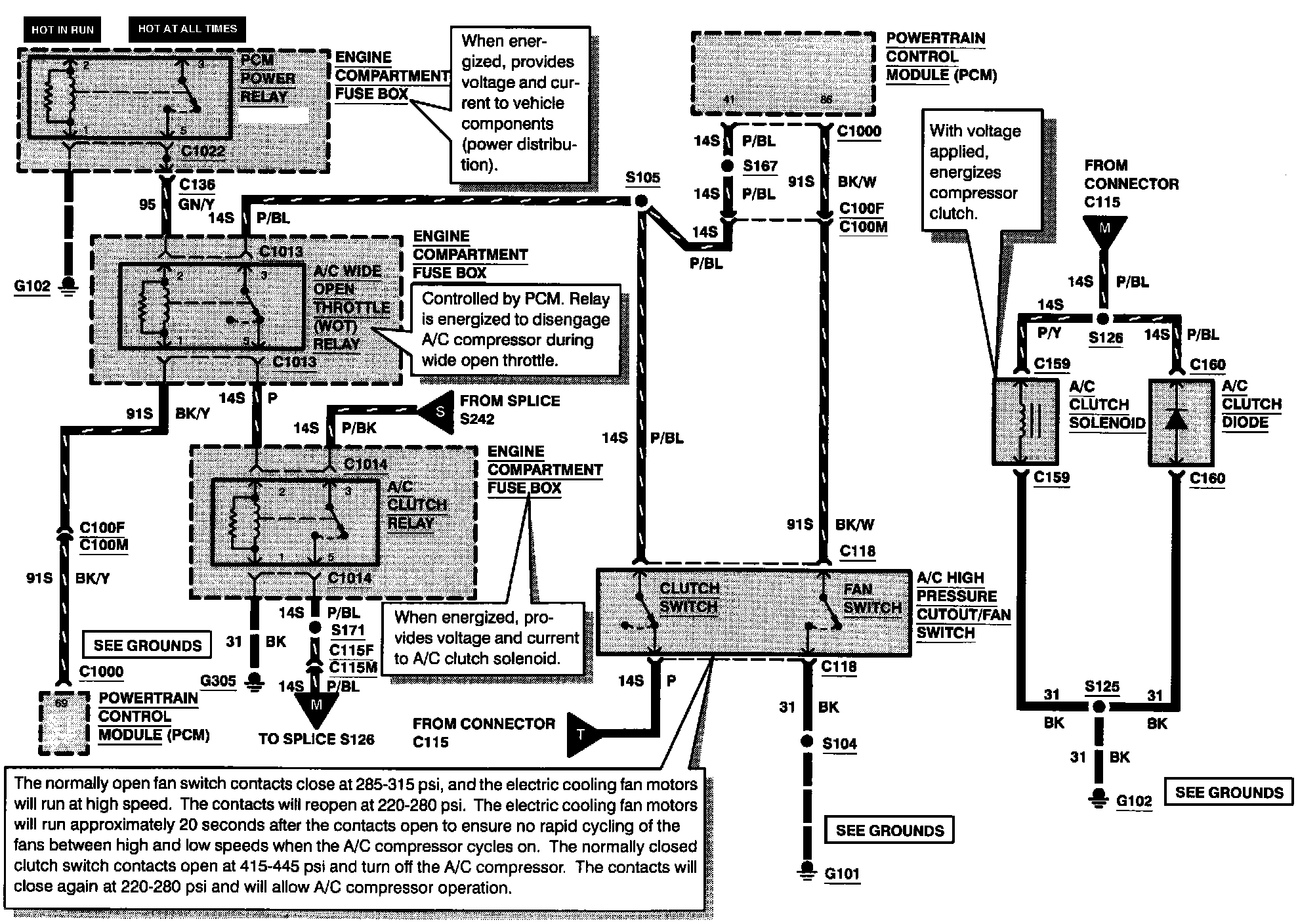

Air Conditioner/Heater (Part 1 Of 3):

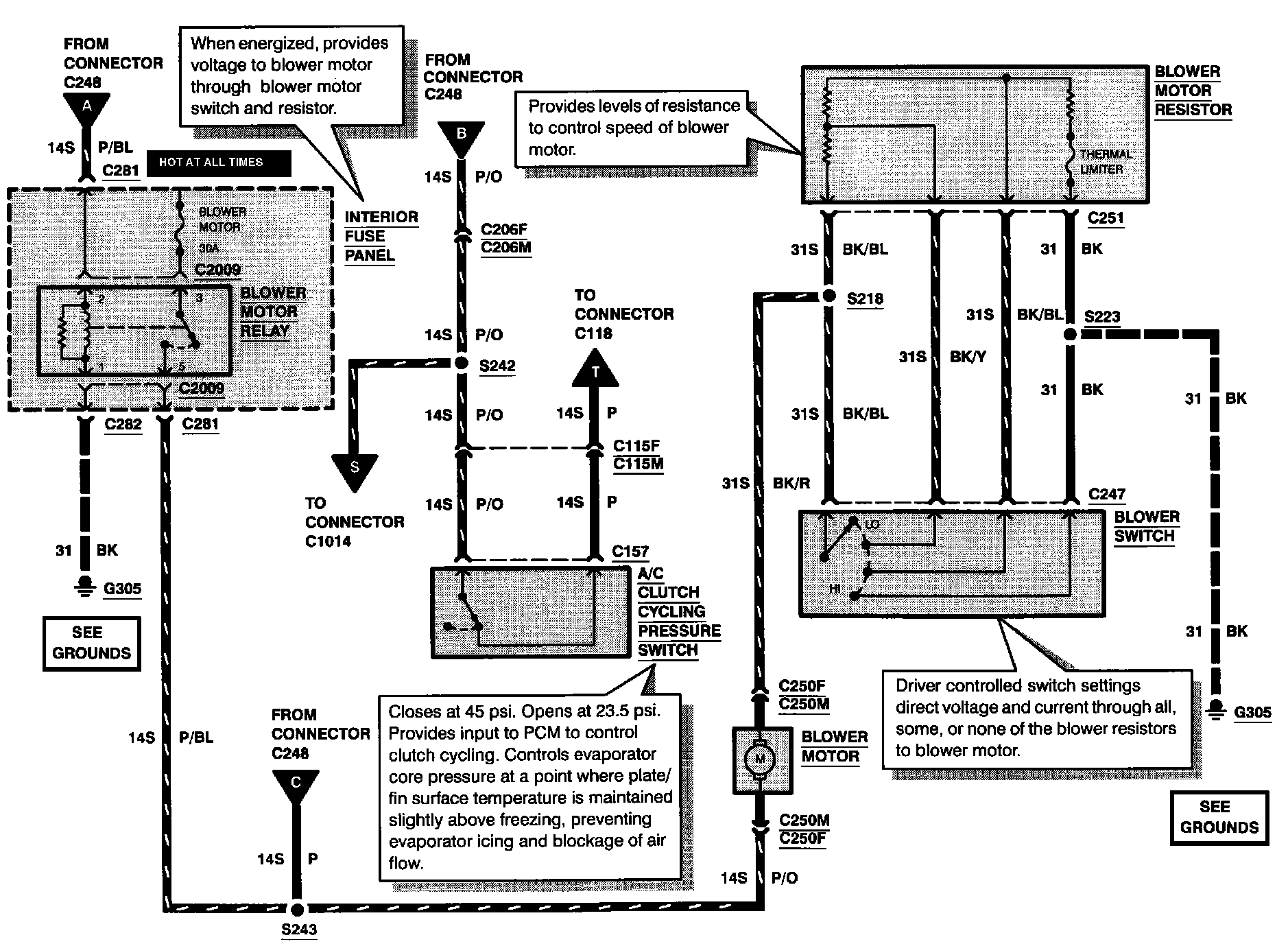

Air Conditioner/Heater (Part 2 Of 3):

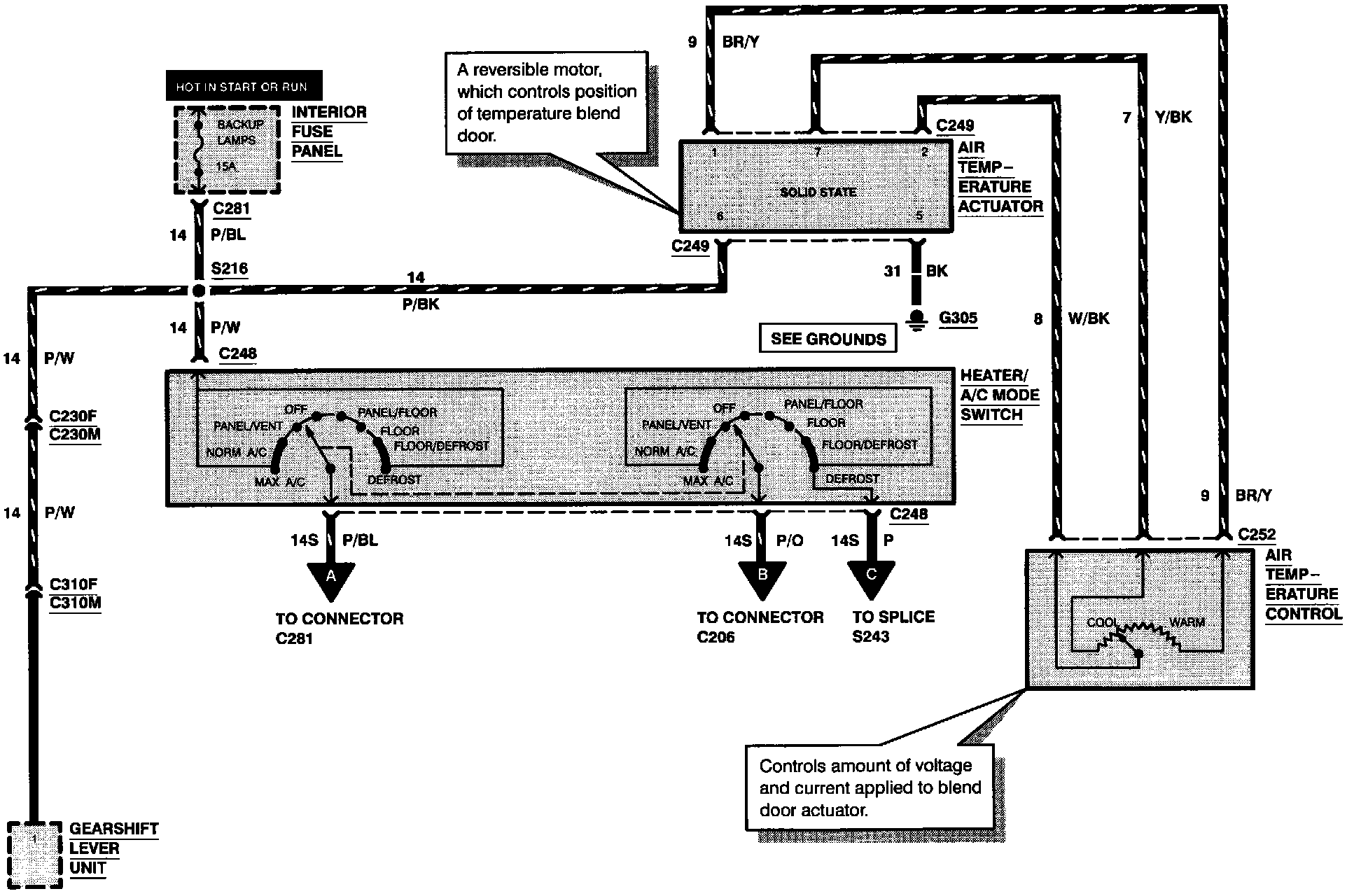

Air Conditioner/Heater (Part 3 Of 3):
