Mercury
>>
1996
>>
Mystique V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio/Stereo
Radio/Stereo

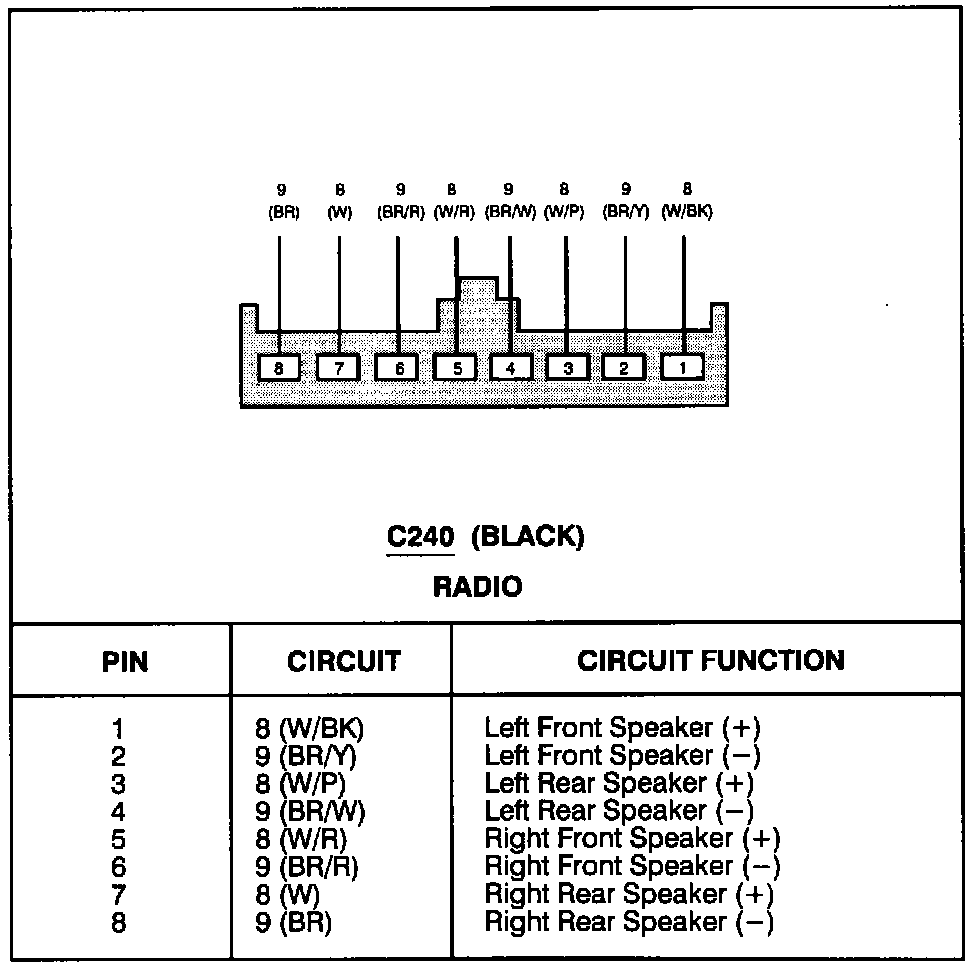

Radio (C240):

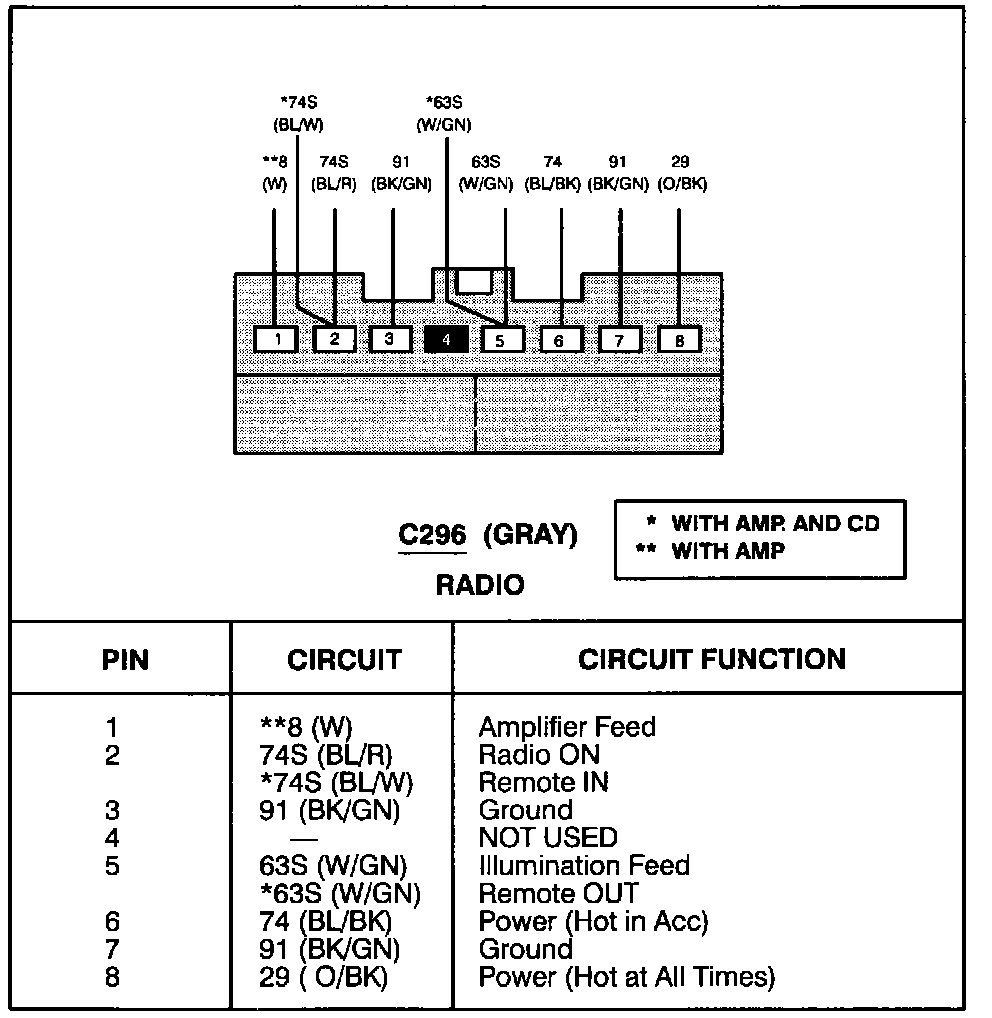

Radio (C296):
