Interior Fuse Panel

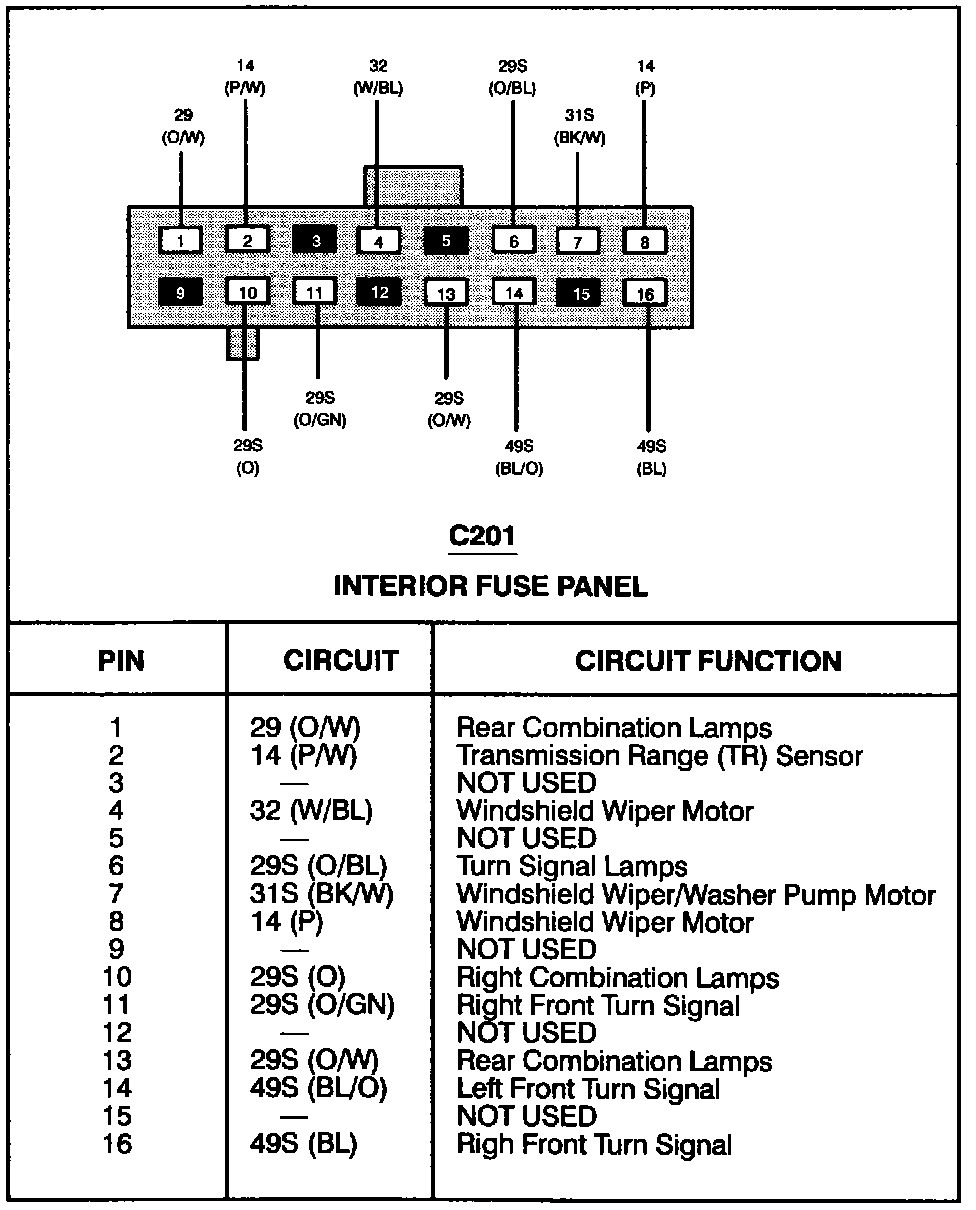

Interior Fuse Panel (C201):

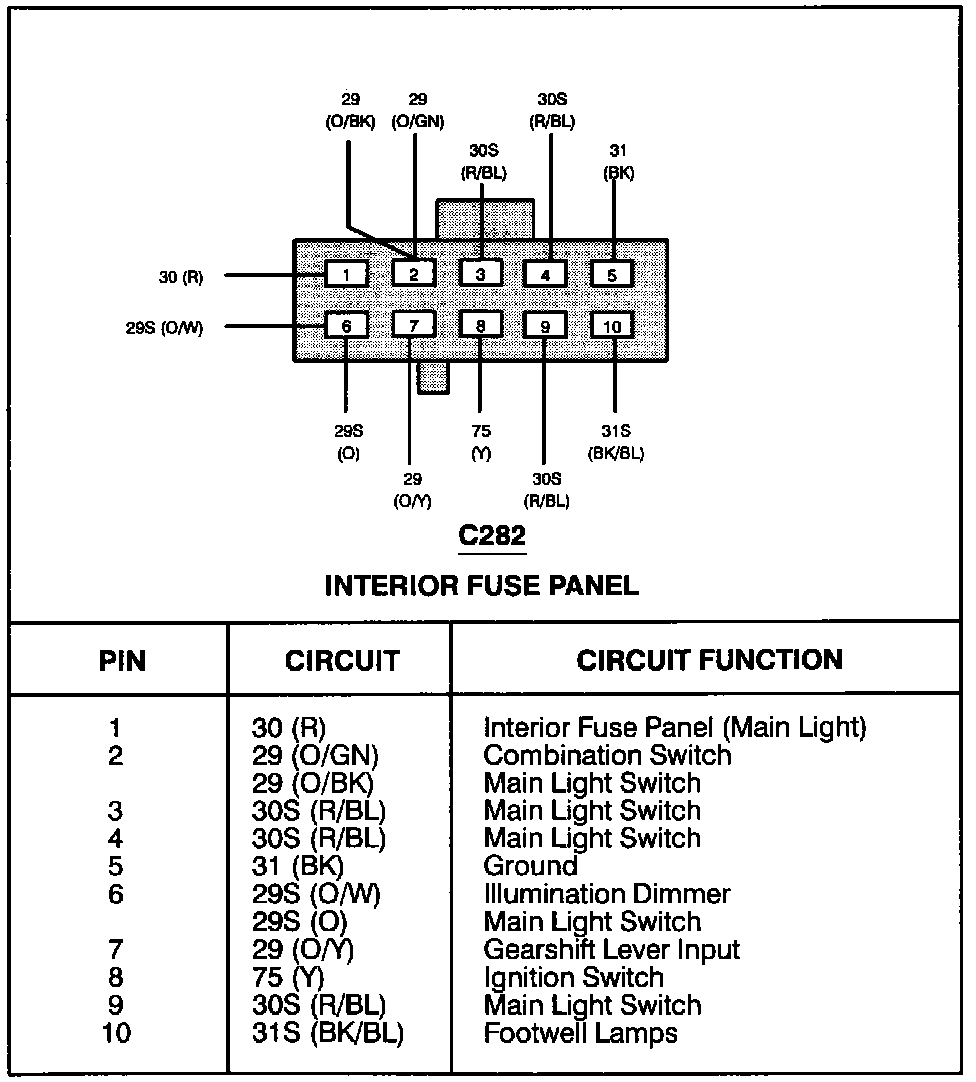

Interior Fuse Panel (C282):

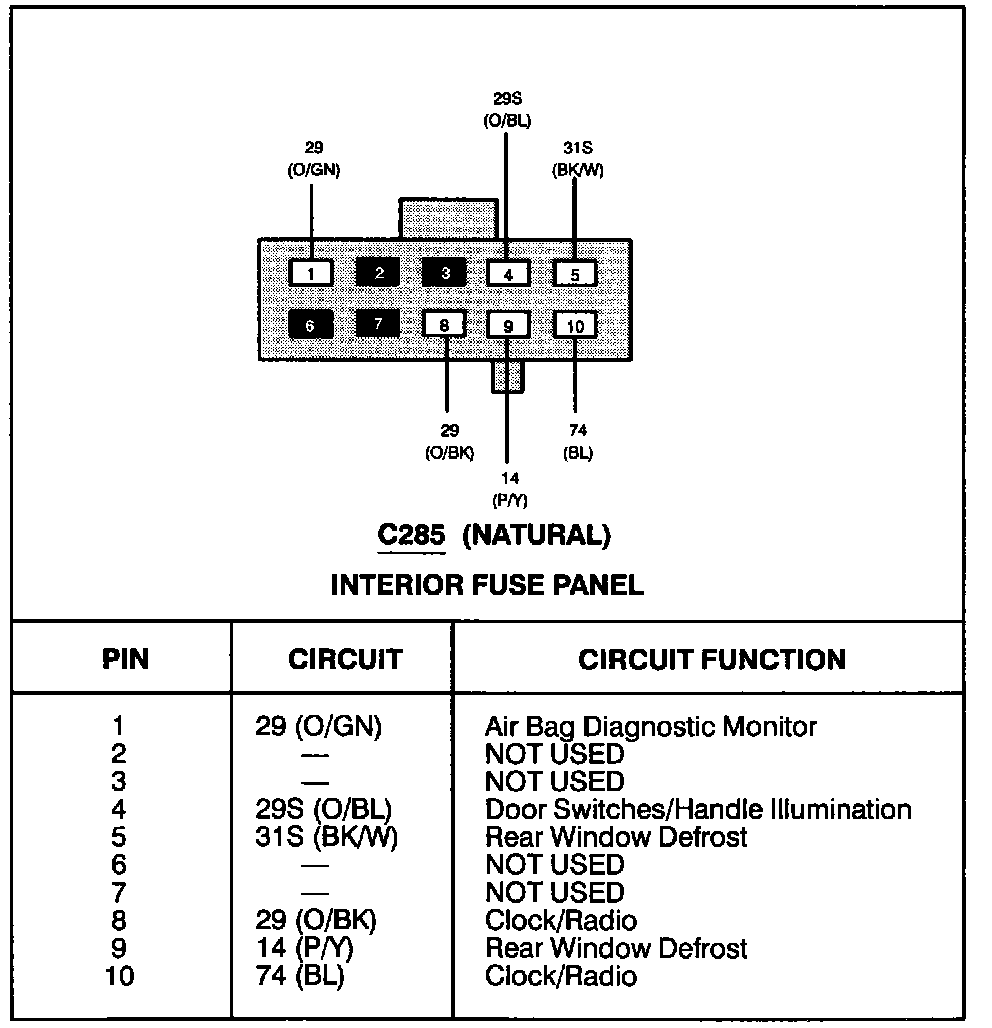

Interior Fuse Panel (C285):

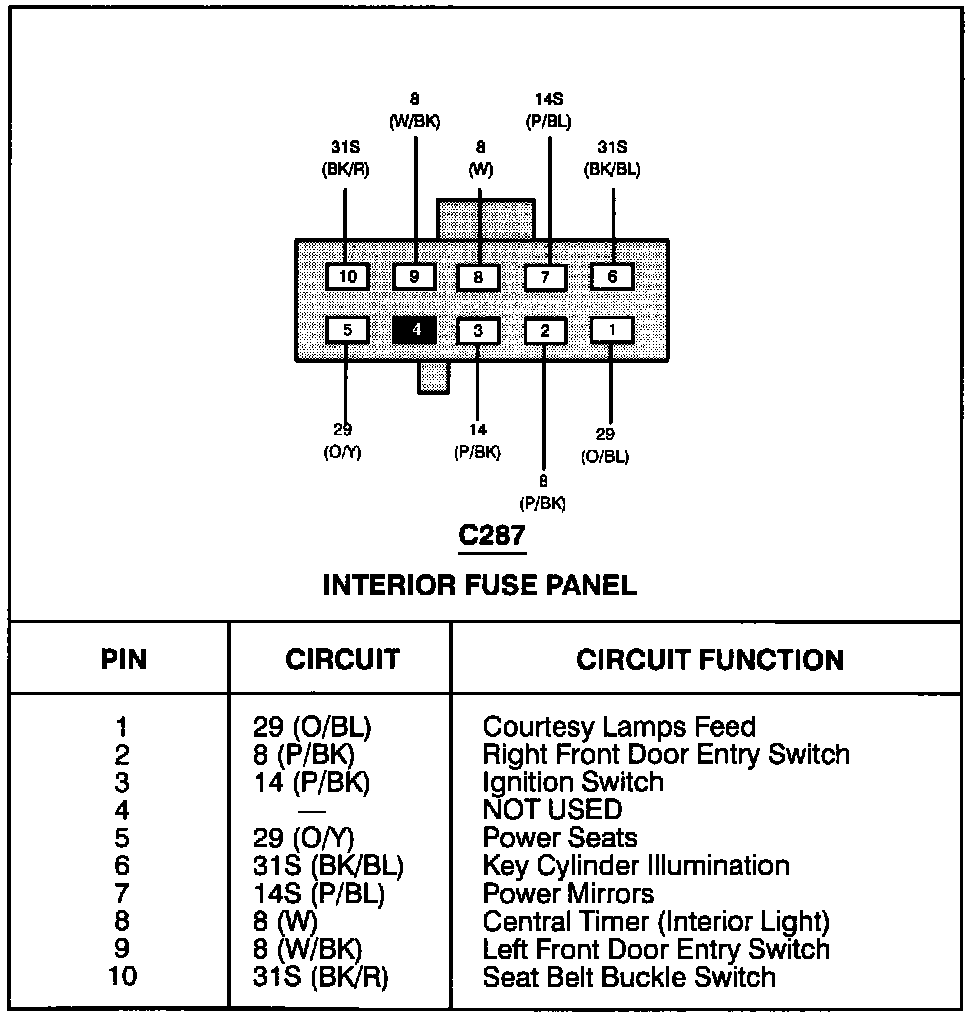

Interior Fuse Panel (C287):

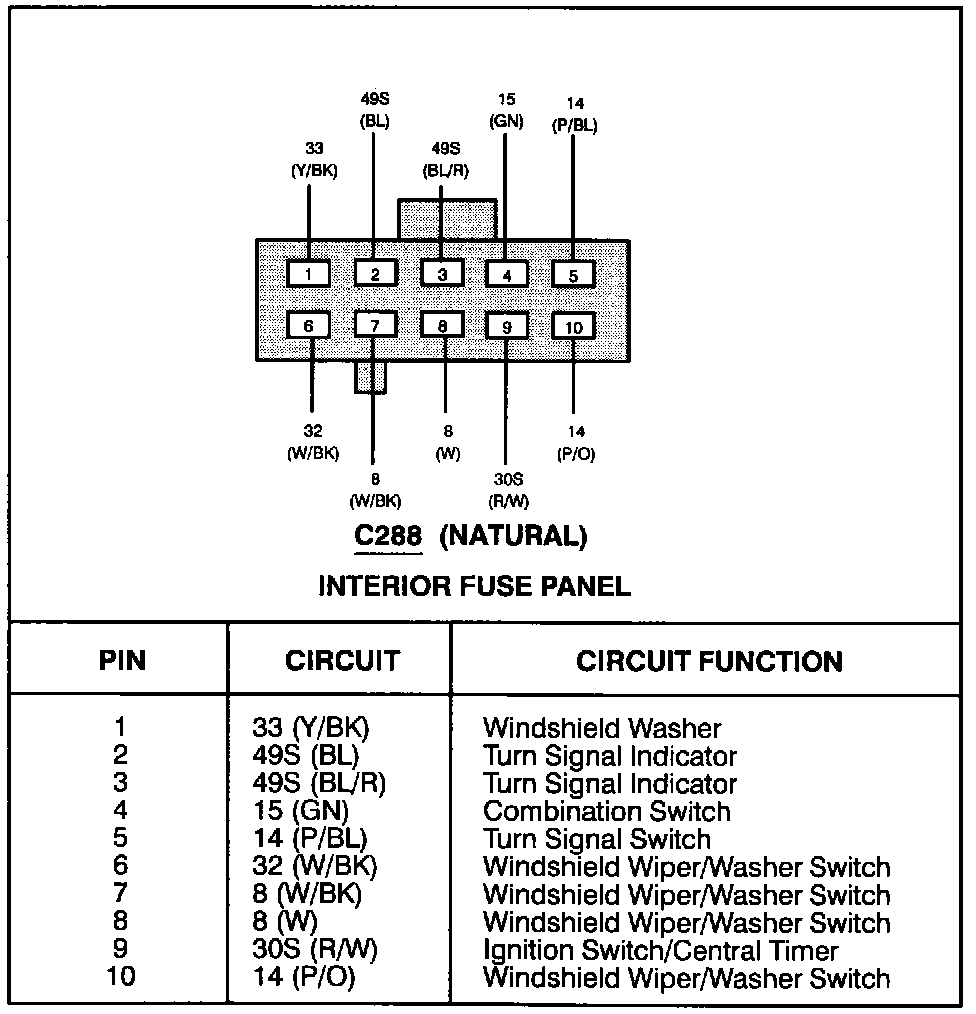

Interior Fuse Panel (C288):

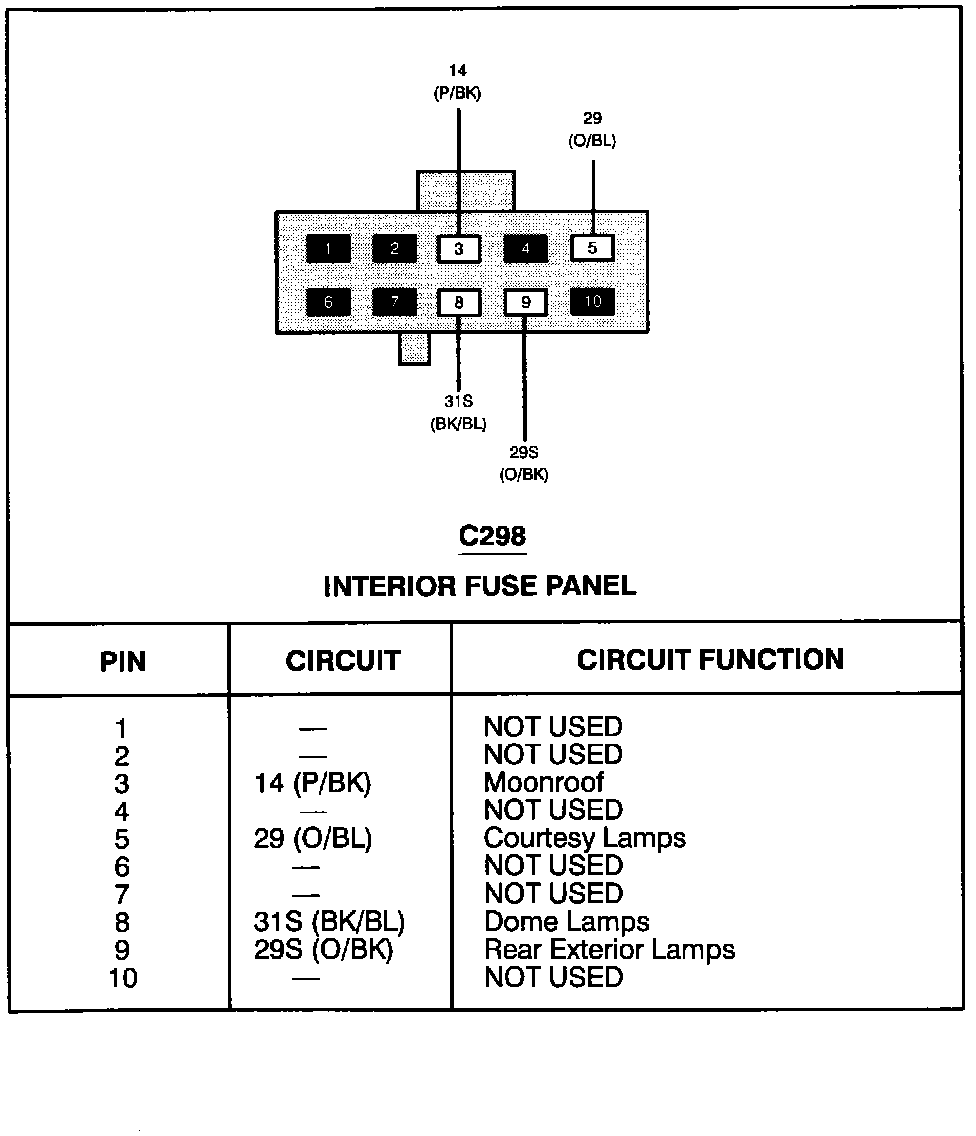

Interior Fuse Panel (C298):
