Mystique V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>

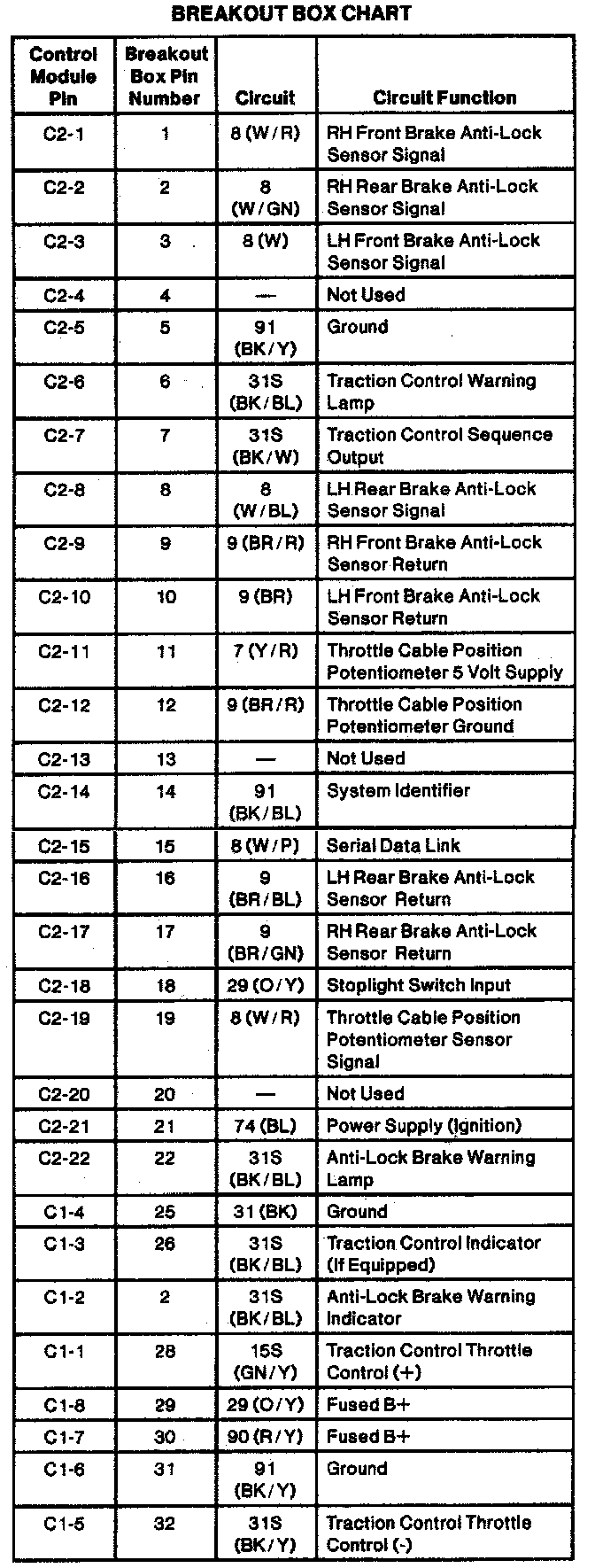

Control Module Pinout Values
Control Module Pinout Values
