Mercury
>>
1996
>>
Mystique V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Body and Frame
>>
Relays and Modules - Body and Frame
>>
Sunroof / Moonroof Relay
>>
Diagrams
Sunroof / Moonroof Relay: Diagrams

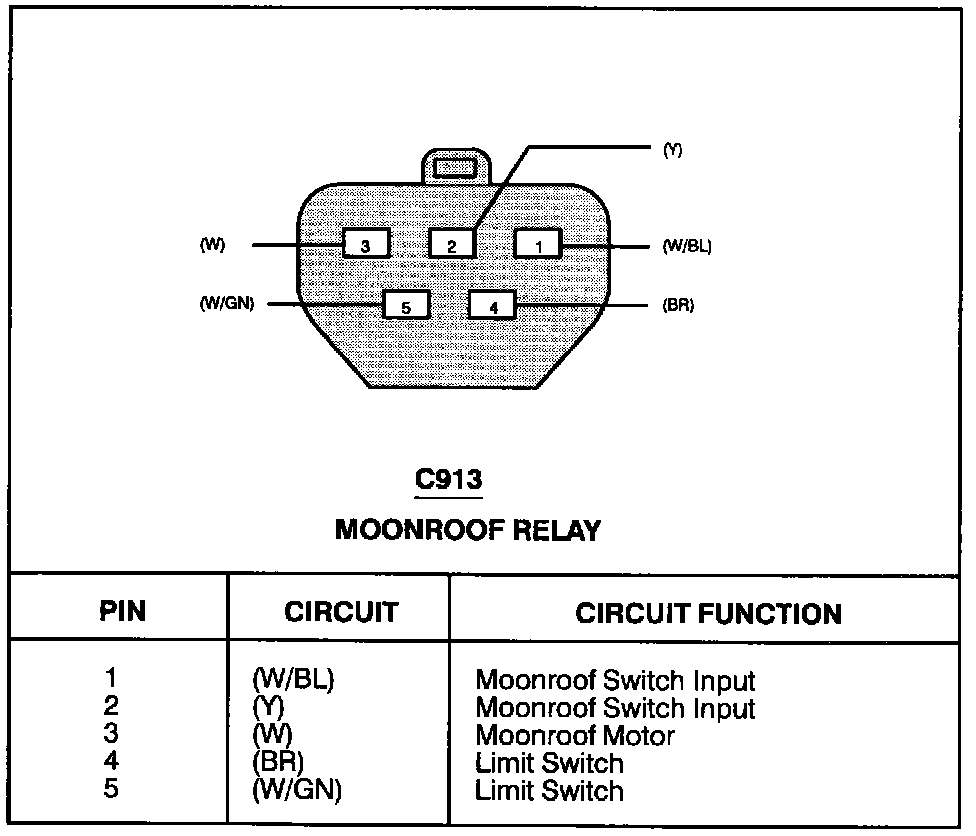

Moonroof Relay:
