Instrument Panel - Reinforcement

REMOVAL and INSTALLATION
1. Remove instrument panel.

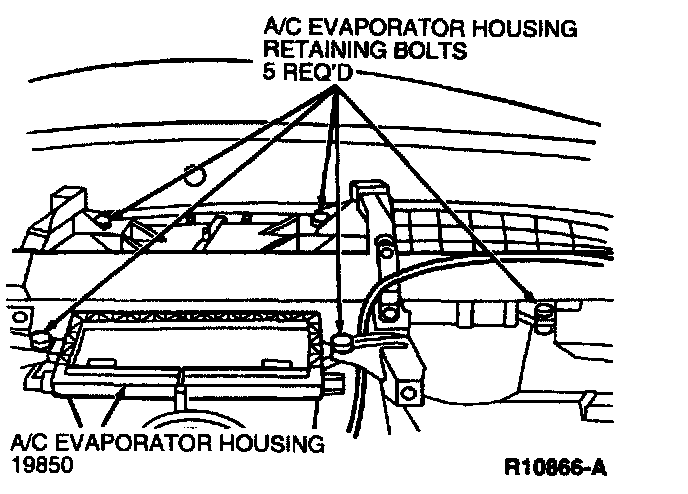

2. Remove five bolts retaining A/C evaporator housing to instrument panel reinforcement.
3. Remove one nut and one bolt retaining reinforcement strap to front floor pan.
4. Remove four nuts retaining wiring harnesses to fuse panel bracket to instrument panel reinforcement.
5. Remove six bolts (three each side) retaining instrument panel reinforcement to A-pillar. Remove instrument panel reinforcement.
6. To install, reverse Removal procedure.
