Ignition Control Module: Locations

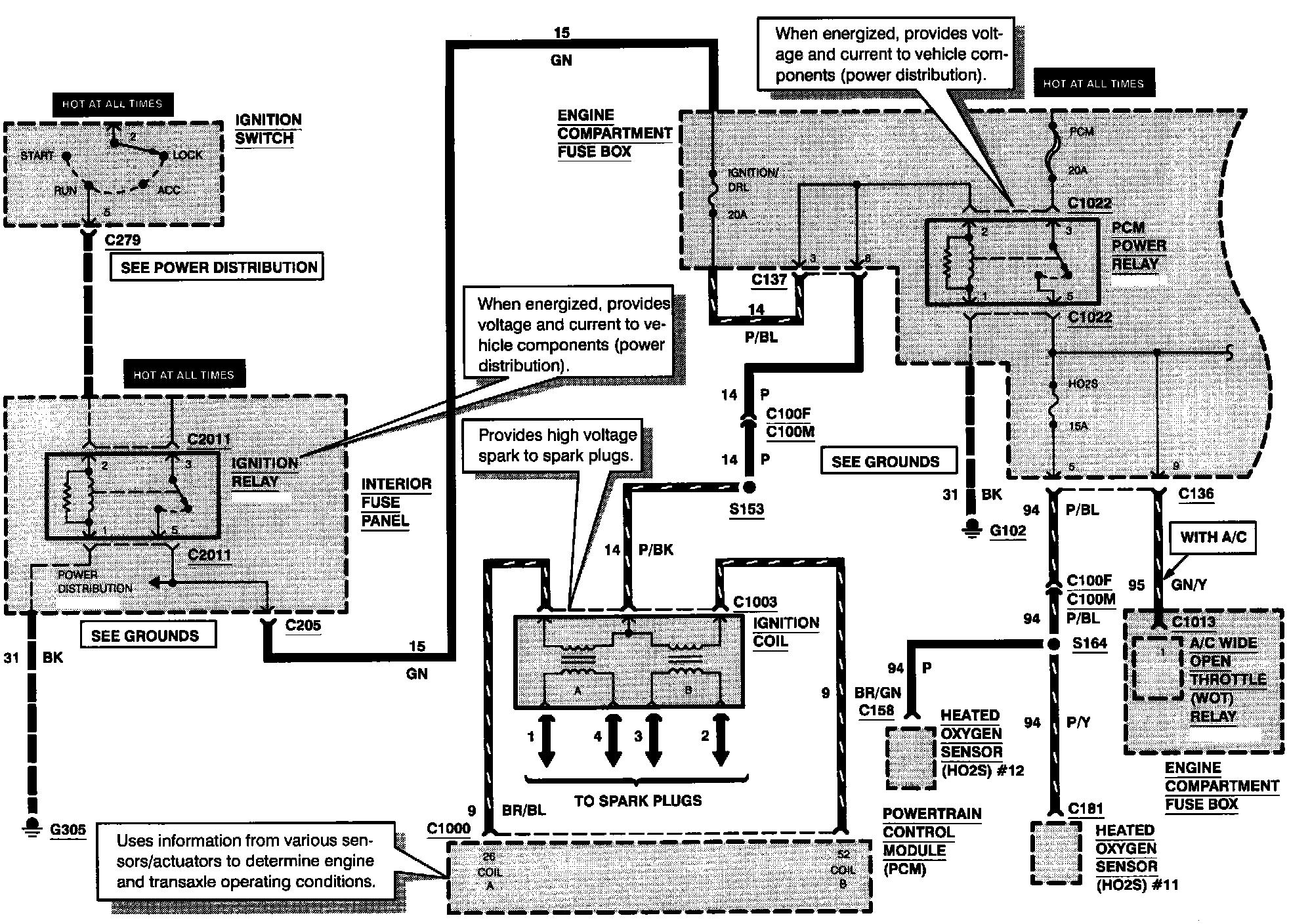

Ignition System (Part 1 Of 2):

The ignition control module is an internal feature of the Powertrain Control Module (PCM), and is no longer a separate component.
PCM pin 26 coil A and pin 52 coil B provides the high voltage spark to the spark plugs.
