Home >> Mercury >> 1996 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> JD - Integrated Ignition - No Spark >> Pinpoint Test Schematics

Pinpoint Test Schematics

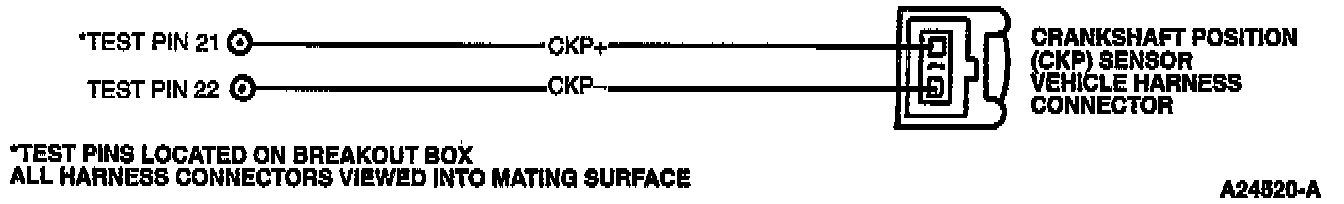

2.0L Contour/Mystique, 4.0L Ranger/Explorer/Aerostar:
