Engine - Surge/Poor Economy/MIL ON/Codes Stored

Article No.
98-18-1

09/14/98

^ FUEL ECONOMY - MALFUNCTION INDICATOR
LAMP (MIL) ILLUMINATED - DIAGNOSTIC TROUBLE
CODES (DTCS) P0131, P0135, AND/OR P1131 MAY
BE STORED IN MEMORY - 2.0L VEHICLES

^ MALFUNCTION INDICATOR LAMP (MIL) - MIL
ILLUMINATED - DIAGNOSTIC TROUBLE CODES
(DTCS) P0131, P0135, AND/OR P1131 MAY BE
STORED IN MEMORY - 2.0L VEHICLES

^ ROUGH IDLE - MALFUNCTION INDICATOR LAMP
(MIL) ILLUMINATED - DIAGNOSTIC TROUBLE CODES
(DTCS) P0131, P0135, AND/OR P1131 MAY BE
STORED IN MEMORY - 2.0L VEHICLES

^ SURGE - MALFUNCTION INDICATOR LAMP (MIL)
ILLUMINATED - DIAGNOSTIC TROUBLE CODES
(DTCS) P0131, P0135, AND/OR P1131 MAY BE
STORED IN MEMORY - 2.0L VEHICLES

^ LAMP - MALFUNCTION INDICATOR LAMP (MIL)
ILLUMINATED - DIAGNOSTIC TROUBLE CODES
(DTCS) P0131, P0135, AND/OR P1131 MAY BE
STORED IN MEMORY - 2.0L VEHICLES

FORD:
1995-96 CONTOUR

LINCOLN-MERCURY:
1995-96 MYSTIQUE





This TSB article is being republished in its entirety to revise the Issue and Figure 1.

ISSUE

The Malfunction Indicator Lamp (MIL) may illuminate and Diagnostic Trouble Codes (DTCs) P0131, P0135, and/or P1131 may be stored in memory and may be accompanied with one or more of the following symptoms:

^ Surge during cruise or light acceleration

^ Decrease in fuel economy

^ Rough idle

This may be caused by a fatigued Heated Exhaust Gas Oxygen (HEGO) sensor wire being pulled during engine rock which results in an erratic signal.

ACTION

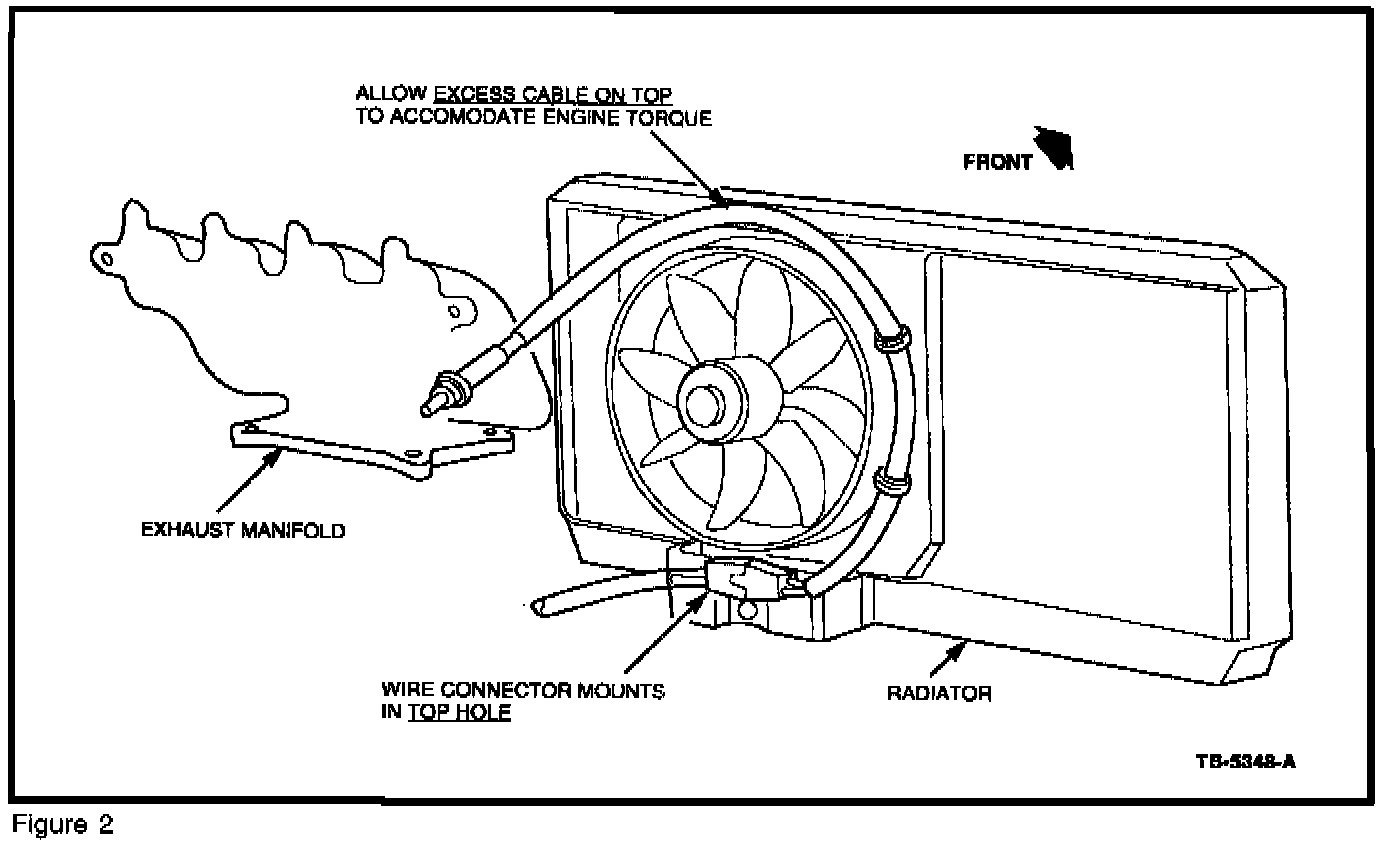

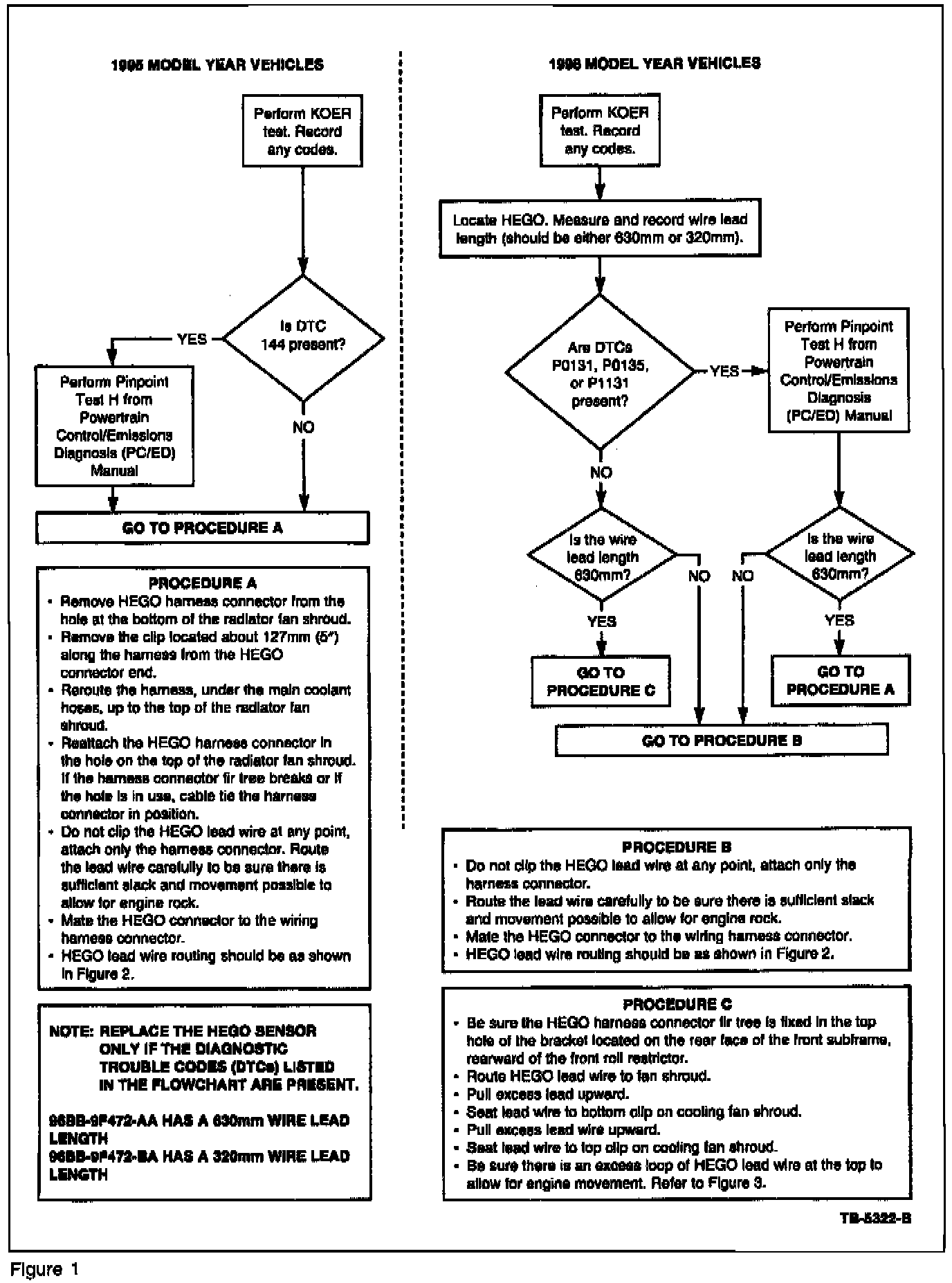

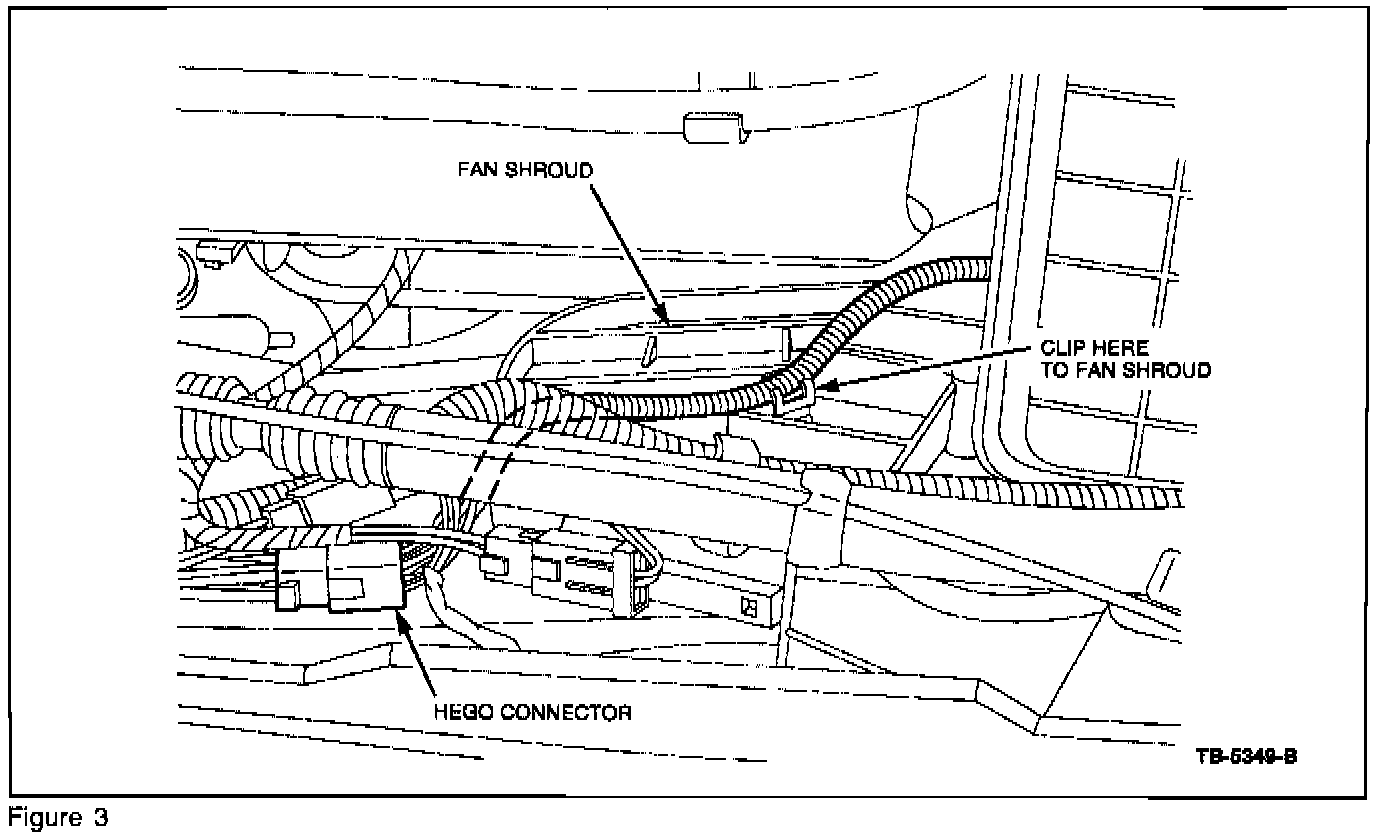

Refer to the following flowchart (Figure 1) and illustrations (Figures 2 and 3) for diagnostic procedure.

PART NUMBER PART NAME

F5RZ-9F472-AA Heated Exhaust Gas Oxygen (HEGO) Sensor
F5RZ-9F472-D Heated Exhaust Gas Oxygen (HEGO) Sensor

OTHER APPLICABLE ARTICLES: NONE

SUPERSEDES: 97-23-2

WARRANTY STATUS: Eligible Under The Provisions Of Bumper To Bumper Warranty Coverage And Emissions Warranty Coverage

OPERATION DESCRIPTION TIME

981801A Replace HEGO Sensor 0.3 Hr.
And Reroute Wiring

981801B Reroute Wire Only 0.2 Hr.

DEALER CODING
CONDITION
BASIC PART NO. CODE
9F472 42

OASIS CODES: 206000, 608000, 608400, 612000,
612500, 612600, 622000, 698298
