Mercury
>>
1996
>>
Cougar/XR7 V8-281 4.6L SOHC
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Lighting and Horns
>>
Headlamp Switch
>>
Testing and Inspection
>>
With Autolamps
With Autolamps

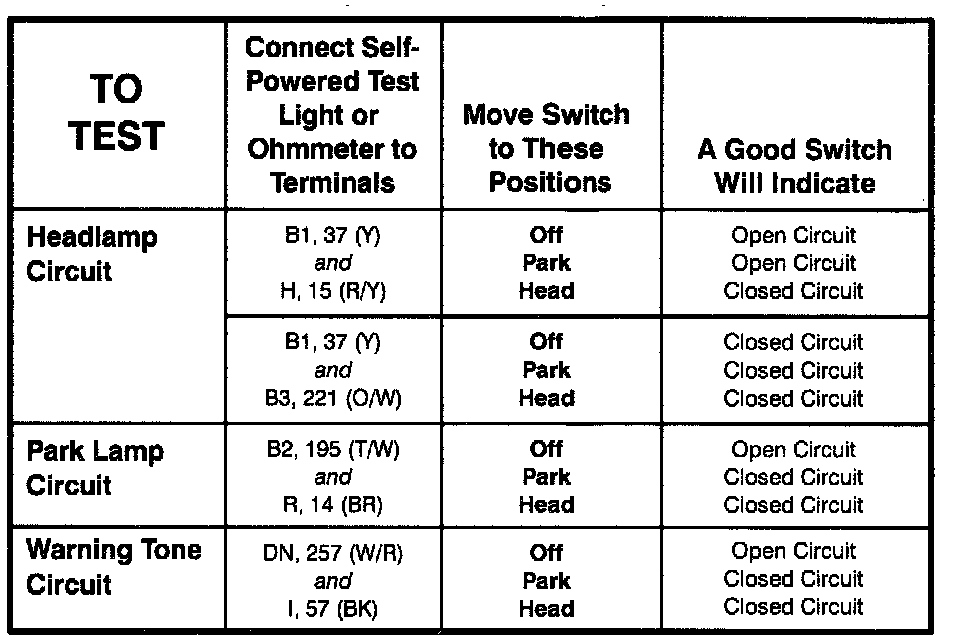

Main Light Switch - Component Testing Procedure (With Autolamps):
Main Light Switch - Terminal Locations (With Autolamps):

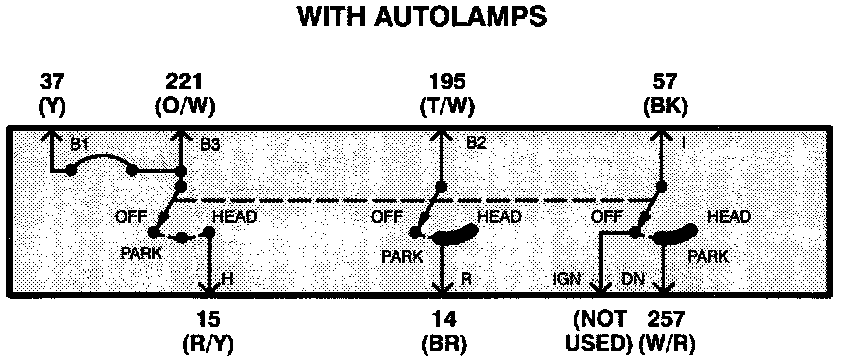

Main Light Switch - Schematic (With Autolamps):
