Cougar/XR7 V8-281 4.6L SOHC
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Views Used With Pinpoint Tests
Connector Views Used With Pinpoint Tests

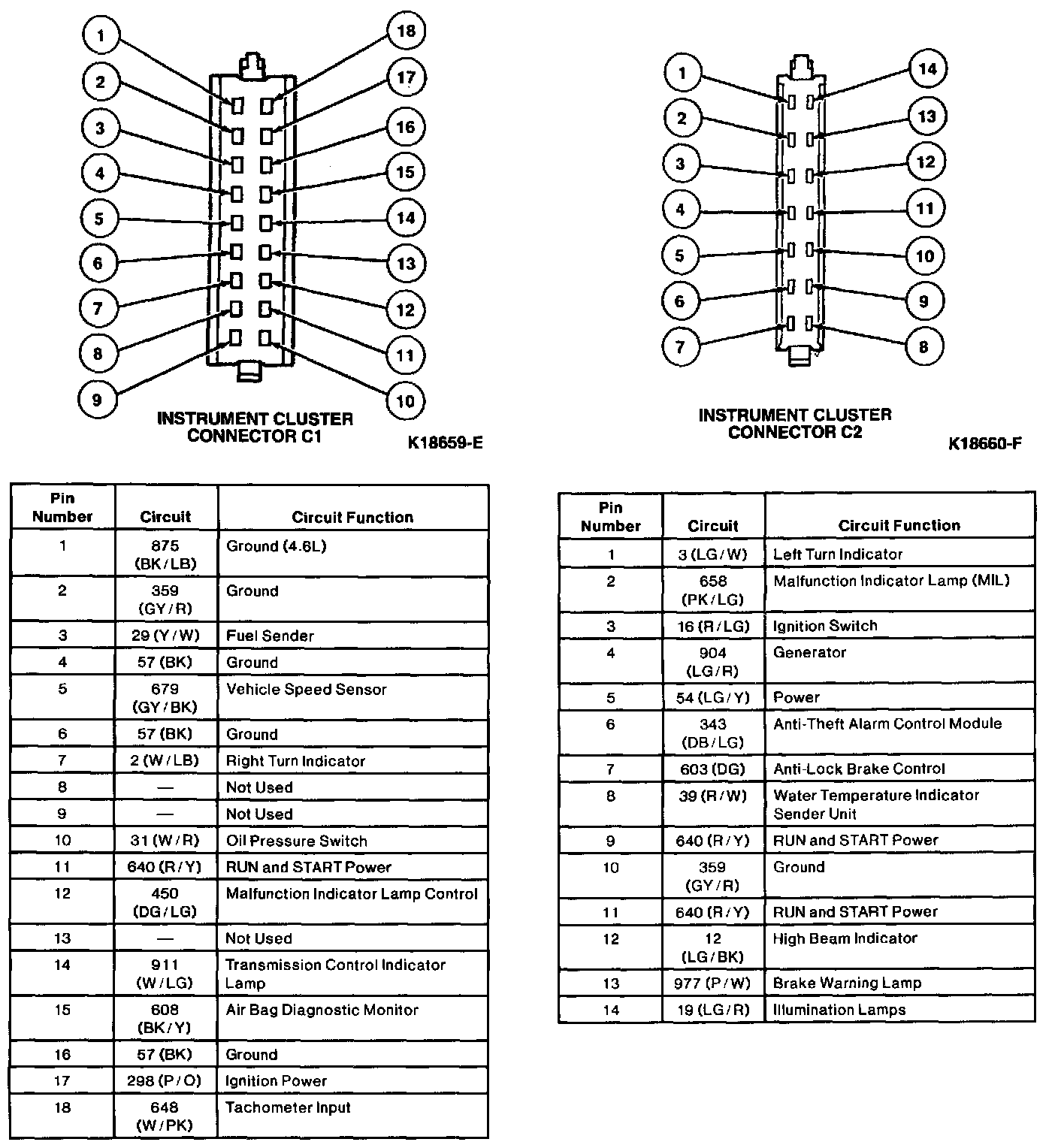

Instrument Cluster Connectors:

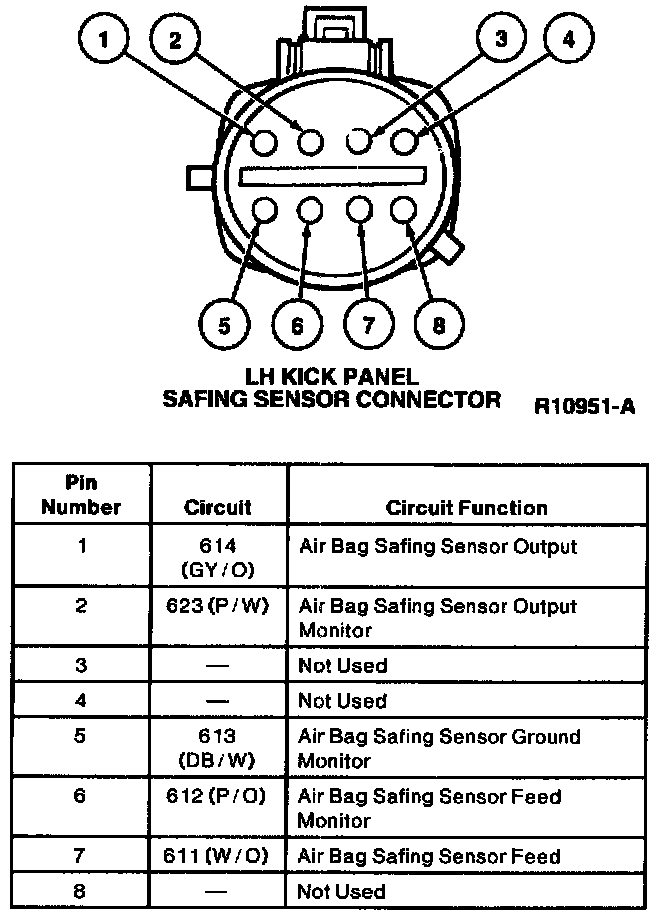

LH Kick Panel Safing Sensor Connector:

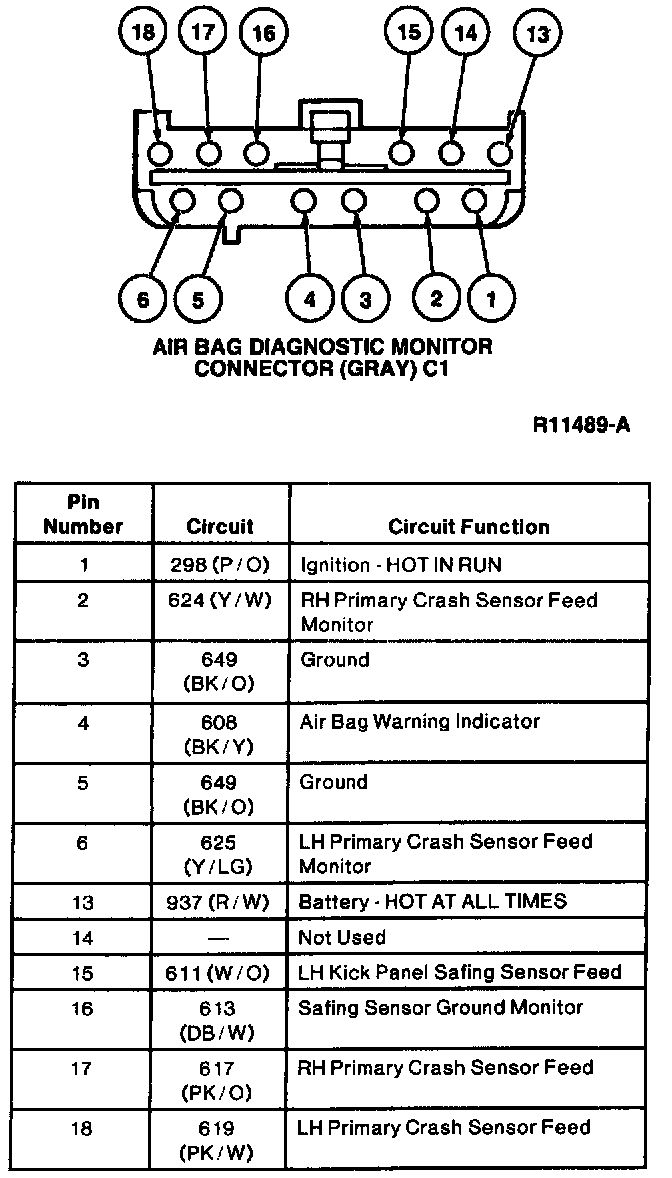

Air Bag Diagnostic Monitor Connector C1:
Air Bag Diagnostic Monitor Connector C2:
