Removal and Installation

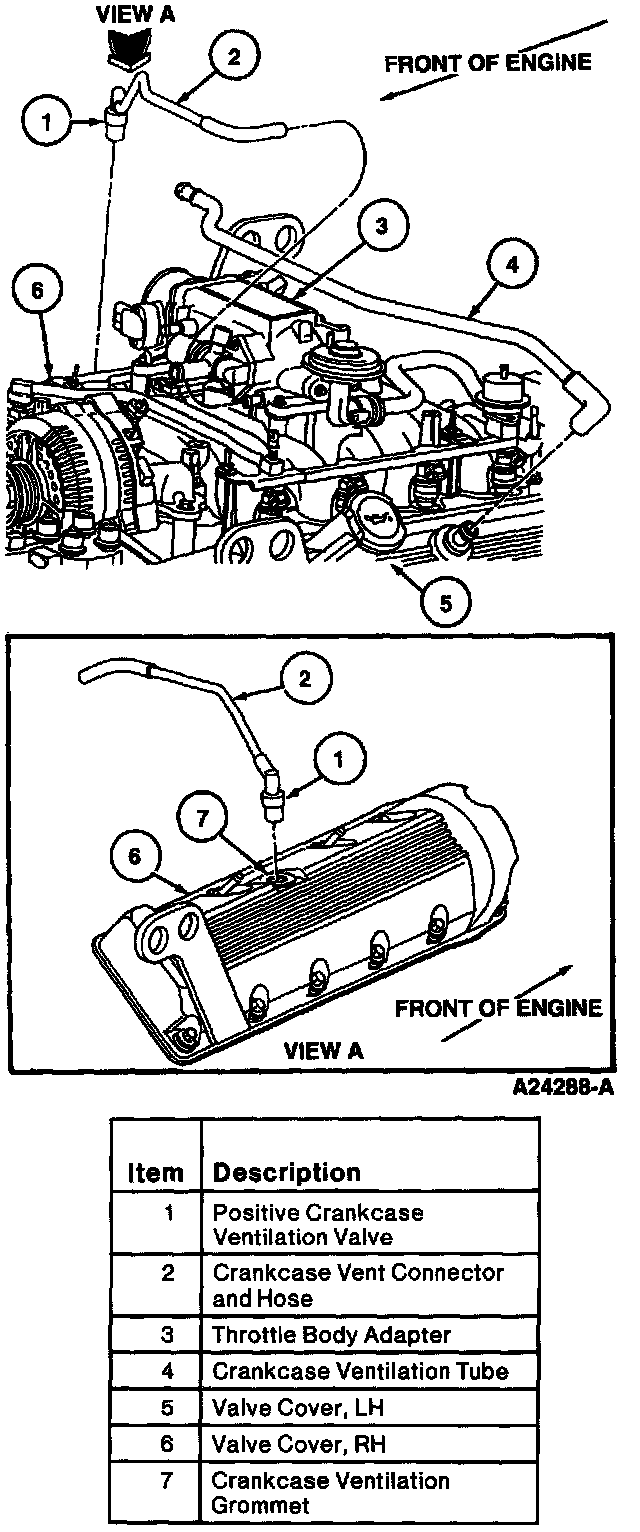

PCV Valve:

1. Remove air cleaner outlet tube.
2. Disconnect crankcase vent connector and hose from Positive Crankcase Ventilation (PCV) valve.
3. Remove valve from grommet in valve cover.
4. Inspect PCV valve and grommet for deterioration. Replace if necessary.
5. To install, reverse removal procedure.
