Mercury
>>
1996
>>
Cougar/XR7 V8-281 4.6L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Evaporative Emissions System
>>
Testing and Inspection
>>
Pinpoint Tests
Pinpoint Tests
Pinpoint Test A1-A2,
Fuel Tank
Pressure Test Abnormal.

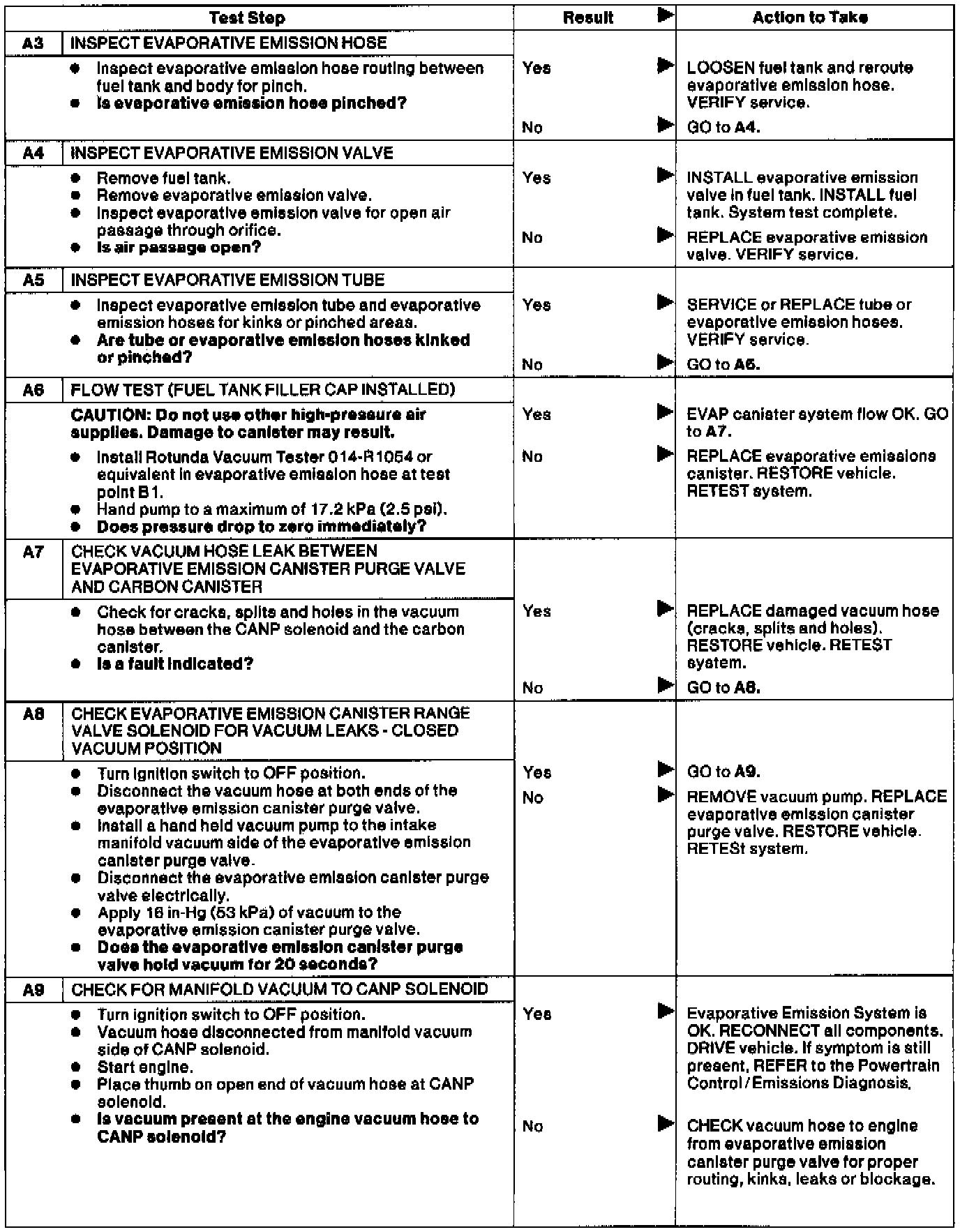

Pinpoint Test A3-A9,
Fuel Tank
Pressure Test Abnormal.
